Kubota L4310DT/GST/HST B10202 SWITCH 1 [EXCEPT HST TYPE] [ROPS TYPE] [NEW TYPE] Parts Diagram

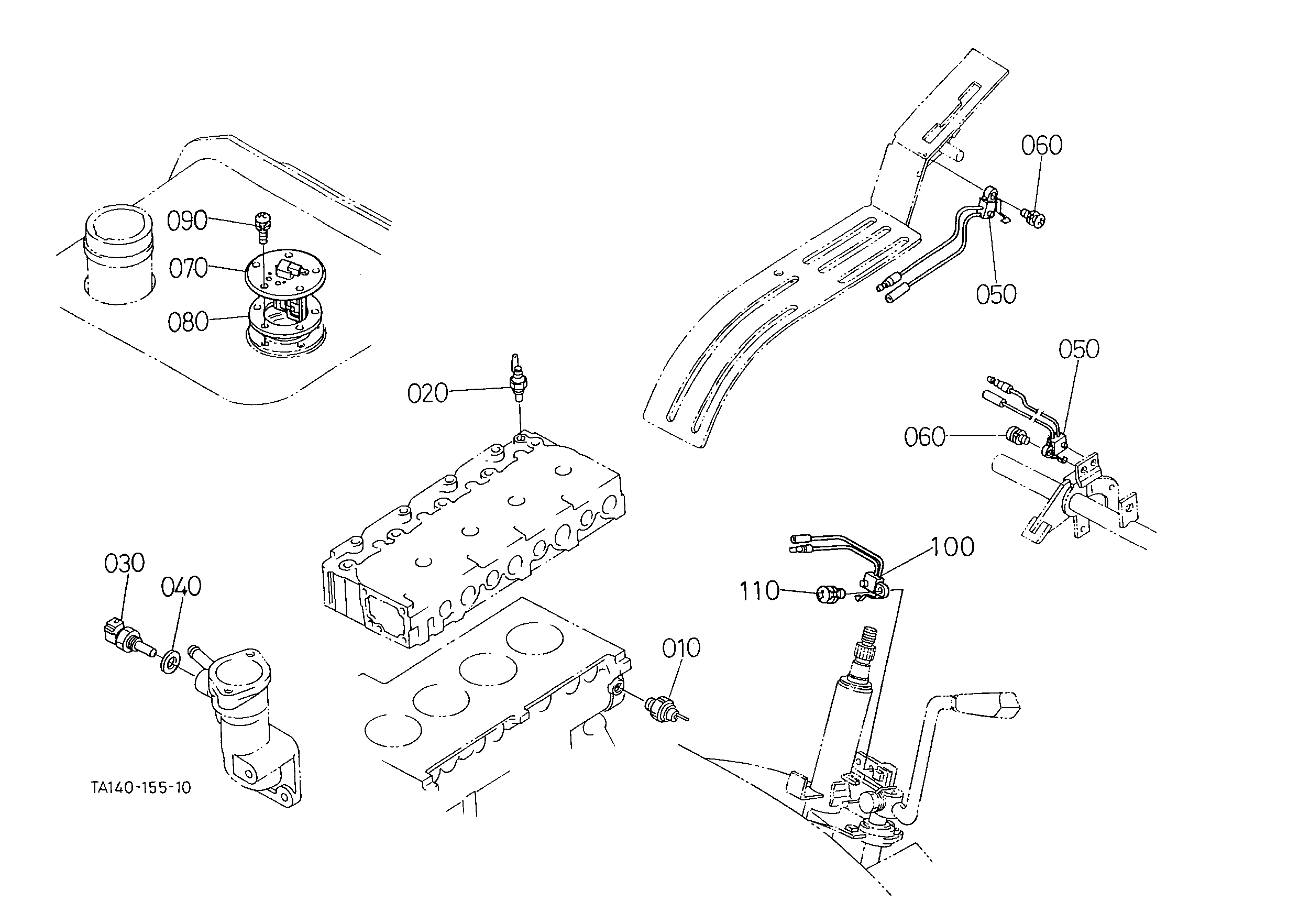

Exploded-view parts diagram "B10202 SWITCH 1 [EXCEPT HST TYPE] [ROPS TYPE] [NEW TYPE]" for the Kubota L4310DT/GST/HST and Kubota L4310F. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 Electrical Timer T0070-31410 1J321-60242 1 1 IN STOCK $259.29
020 Electrical Controller 16415-65660 16415-65662 1 1 IN STOCK $187.63
030 Glow Plug Relay 16415-65600 1 2 IN STOCK $97.43
040 M6 Flange Bolt 01754-50616 1 13 IN STOCK $2.36
050 Flange Nut 02751-50060 1 6 IN STOCK $0.60
060 RELAY, STARTER 35800-75070 1 2 IN STOCK $123.29
090 UNIT FLASHER 3F240-75430 1 AVAILABLE TO ORDER $163.29
100 Main Switch 34670-31823 34670-31824 1 4 IN STOCK $108.44
110 SWITCH, COMBINAT 3A751-75010 3A751-75050 1 AVAILABLE TO ORDER $117.17
120 Hazard Switch TA140-30910 1 AVAILABLE TO ORDER $57.37
140 Ignition and Starter Switch Key 35260-31850 35260-31852 1 17 IN STOCK $16.79

Showing 1 to 11 of 11 parts
