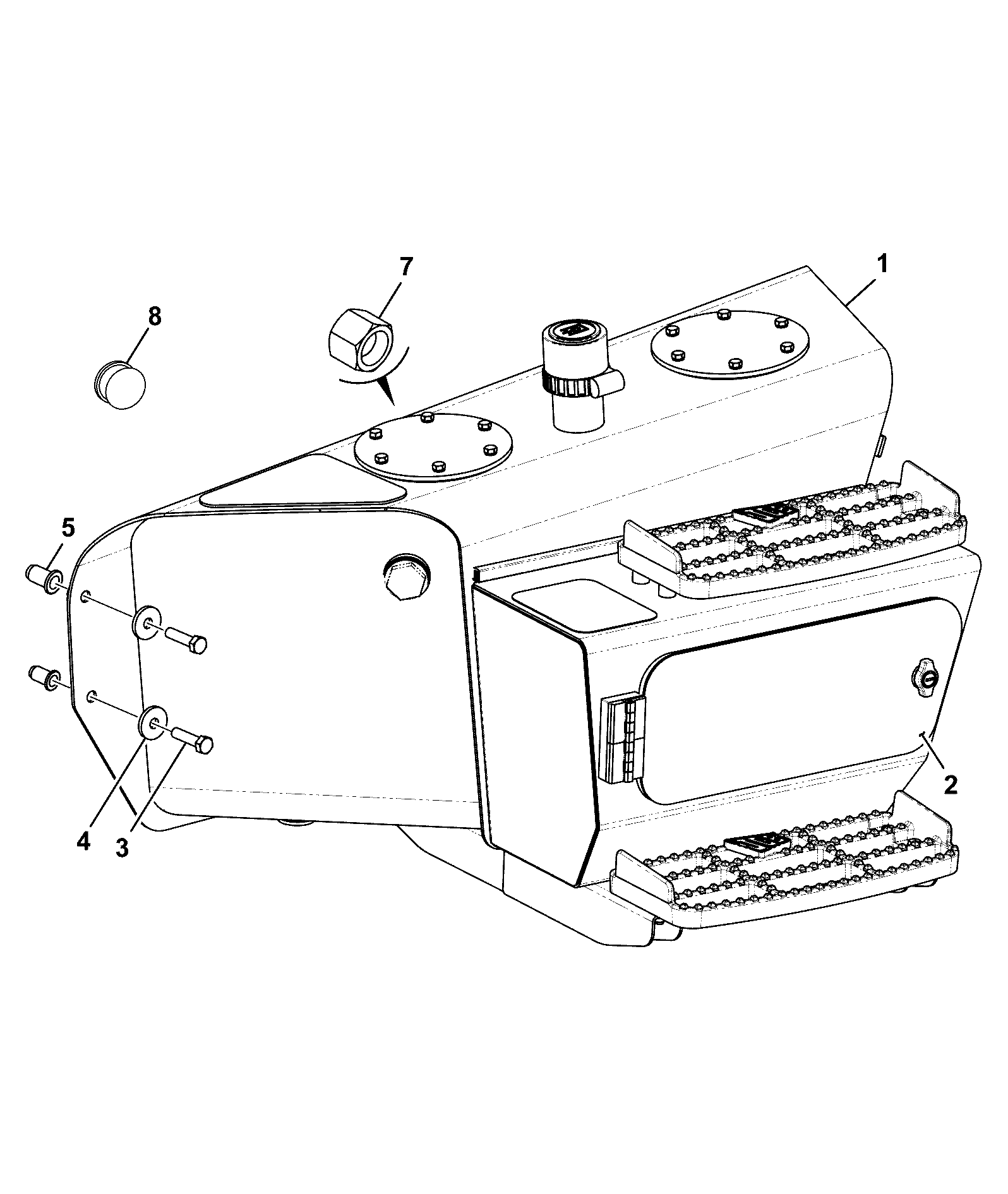

B100-8-104 BODYWORK INSTALLATION ASSEMBLIES HYDRAULIC TANK WITH SIDE DOOR TOOL BOX Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
ABI HYD TANK 128/D 128/D1116	1	AVAILABLE TO ORDER	$3,601.87	Quantity	Quantity
ANTI-SLIP PAD 332/F3399	1	AVAILABLE TO ORDER	$5.61	Quantity	Quantity
BLANK CAP 1BSP 816/90205	1	AVAILABLE TO ORDER	$37.41	Quantity	Quantity
GROMMET 335/E4915	1	AVAILABLE TO ORDER	$1.91	Quantity	Quantity
NUT RIVET M12 826/01717	1	AVAILABLE TO ORDER	$19.40	Quantity	Quantity
SET SCREW M12X50 1315/0512Z	1	AVAILABLE TO ORDER	$3.43	Quantity	Quantity
WASHER 823/00589	1	AVAILABLE TO ORDER	$5.00	Quantity	Quantity

Showing 1 to 7 of 7 parts
