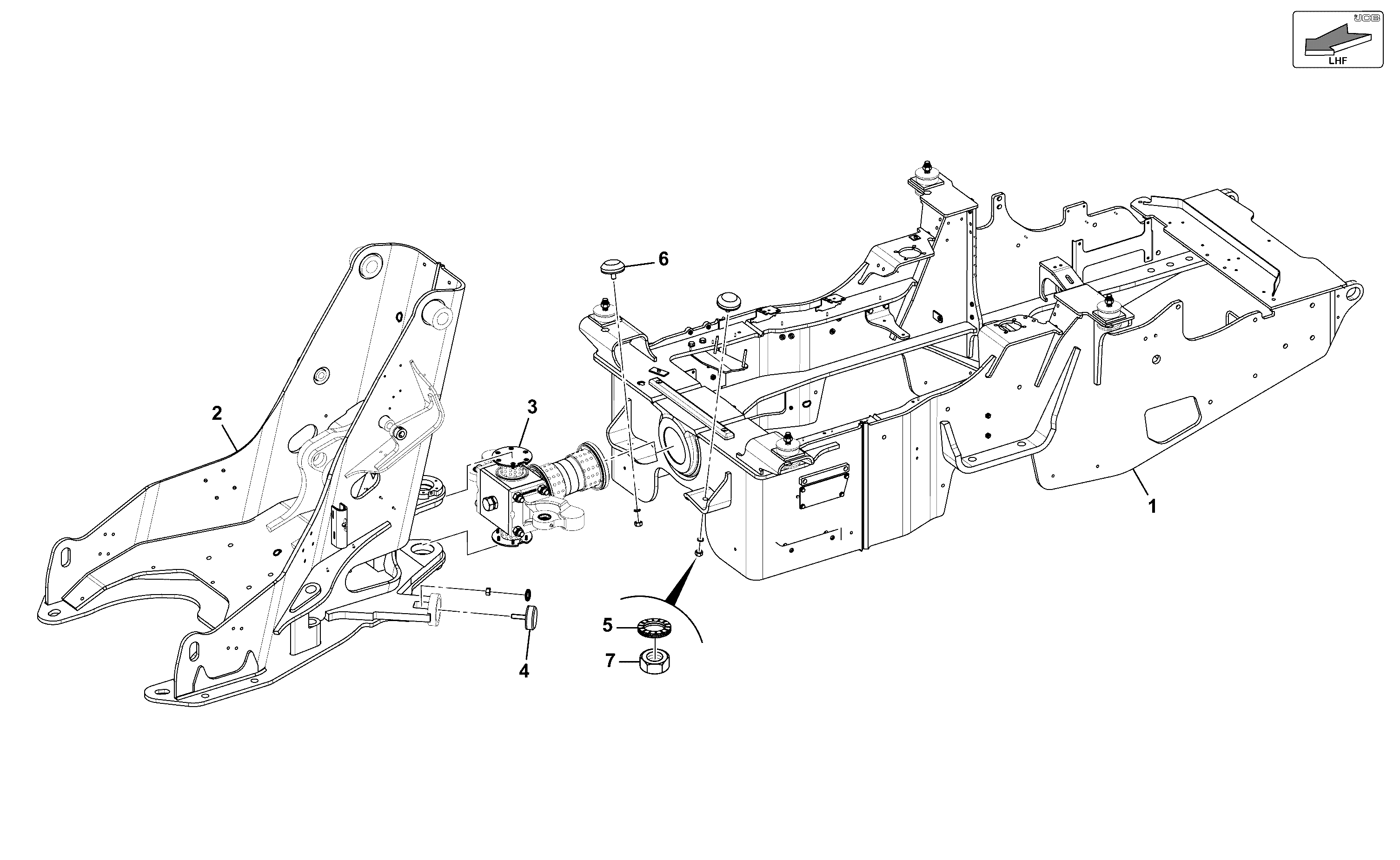

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 3 | WA MID BRACE 402/M7838 | 1 | $156.80 | |||
| 4 | WA DOC BRIDGE 403/L0678 | 1 | $353.44 | |||
| 9 | WA LH STRUT 403/L9377 | 1 | $632.72 | |||
| 10 | WA MOUNTING EXHAUST PIPE 403/F2130 | 1 | $25.50 | |||
| 11 | WA FLEX PIPE BRKT 403/N4139 | 1 | $18.16 | |||
| 12 | WASHER M16 PLAIN 1420/0011D | 1 | $0.91 | |||
| 13 | POD BOX BRACKET 402/L6912 | 1 | $68.77 | |||
| 15 | BOLT M10 L-_30mm G-_8.8 1315/3408D | 1 | $24.59 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | BOLT M16x60 1315/3714D | 1 | $0.00 | |||
| 18 | WASHER M12 PLAIN 1420/0009D | 1 | $0.00 | |||
| 19 | Bolt M16 x 45 1315/3711D | 1 | $2.99 | |||
| 20 | BOLT M12x45 (P836) 1315/3511D | 1 | $24.59 | |||
| 21 | SET-SCREW M12 L-_35mm 1315/3509D | 1 | $22.94 | |||
| 22 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $2.11 | |||
| 23 | M16 LOCK NUT 1370/0603D | 1 | $2.62 | |||
| 24 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 25 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $1.25 | |||
| 26 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 27 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 28 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 29 | SET-SCREW M_8 L-_20mm GRADE 8.8 1315/0305B | 1 | $2.75 | |||
| 30 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.22 | |||
| 31 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 32 | WASHER - PLAIN METRIC M8 (P710) 1420/0007B 1420/0007N | 1 | $6.60 | |||
| 33 | GROMMET 2410/0213 | 1 | $2.21 | |||
| 34 | WASHER 823/00589 | 1 | $5.00 | |||
| 35 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 36 | SPACER 1mm 402/S4174 | 1 | $5.71 | |||
| 37 | SPACER 6mm 402/S6066 | 1 | $9.04 | |||
| 38 | SPACER 3mm 402/S6056 | 1 | $6.73 | |||
| 39 | GROMMET 2410/0215 | 1 | $44.16 | |||
| 41 | WA FUEL HOSE BRKT REAR 403/L7299 | 1 | $22.60 | |||
| 43 | PRS HOSE AND HARNESS BRKT 403/M3996 | 1 | $22.17 | |||
| 44 | BOLT M_8 L-_30mm G-_8.8 1315/3308D | 1 | $1.39 | |||
| 45 | MID BRACE SPACER 403/P6032 | 1 | $5.82 | |||
| 46 | BOLT M16x65 1315/3715D | 1 | $2.86 | |||
| 47 | BOLT.M16x55 LG. (P715/P710) 1315/3713D | 1 | $7.72 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
DIAG-B100-15-1-403011 B100-15-1 BODYWORK INSTALLATION ASSEMBLIES FRONT & REAR CHASSIS ASSY
View Diagram -

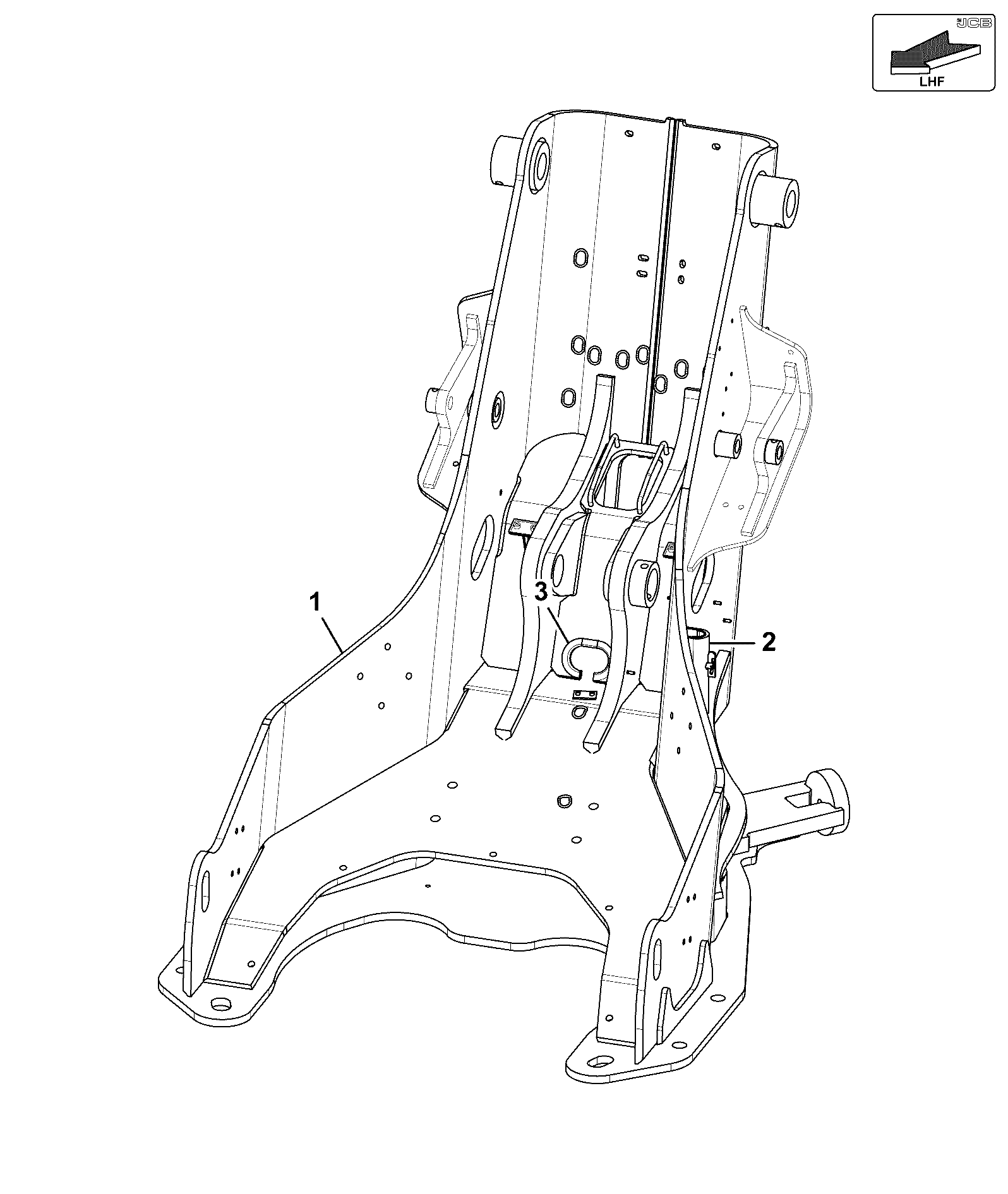

DIAG-B110-1-1-403011 B110-1-1 CHASSIS FRONT CHASSIS ASSY
View Diagram -

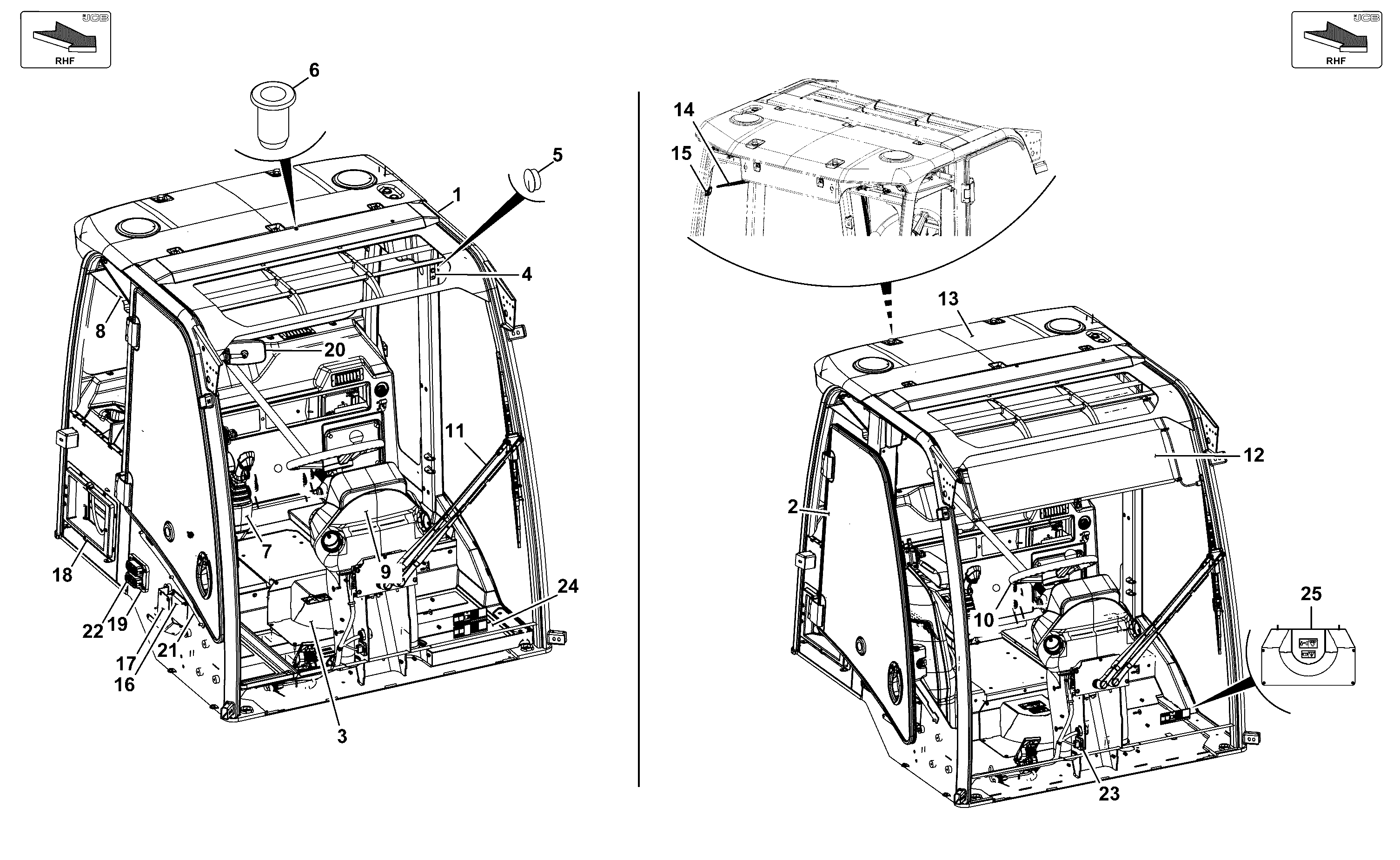

DIAG-B100-5-1-403011 B100-5-1 BODYWORK INSTALLATION ASSEMBLIES CAB ABI ASSY
View Diagram
