Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI HYD TANK 3CX compact 128/L4022 | 1 | $4,391.52 | |||
| 2 | STEP TREAD 410x180 331/27034 | 1 | $170.48 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 4 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 5 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 6 | NUT RIVET M12 826/01717 | 1 | $19.40 | |||
| 7 | WASHER 823/00589 | 1 | $5.00 | |||
| 8 | BOLT M12x70 1315/3516Z | 1 | $3.44 | |||
Showing 1 to 8 of 8 parts
Related Assemblies
-
DIAG-B100-10-50-394728 B100-10-50 BODYWORK INSTALLATION ASSEMBLIES HYDRAULIC TANK TWO STEPS, 3CX COMPACT
View Diagram -
DIAG-B100-12-5-394728 B100-12-5 BODYWORK INSTALLATION ASSEMBLIES FUEL TANK WITH STOWAGE, 3CX COMPACT
View Diagram -

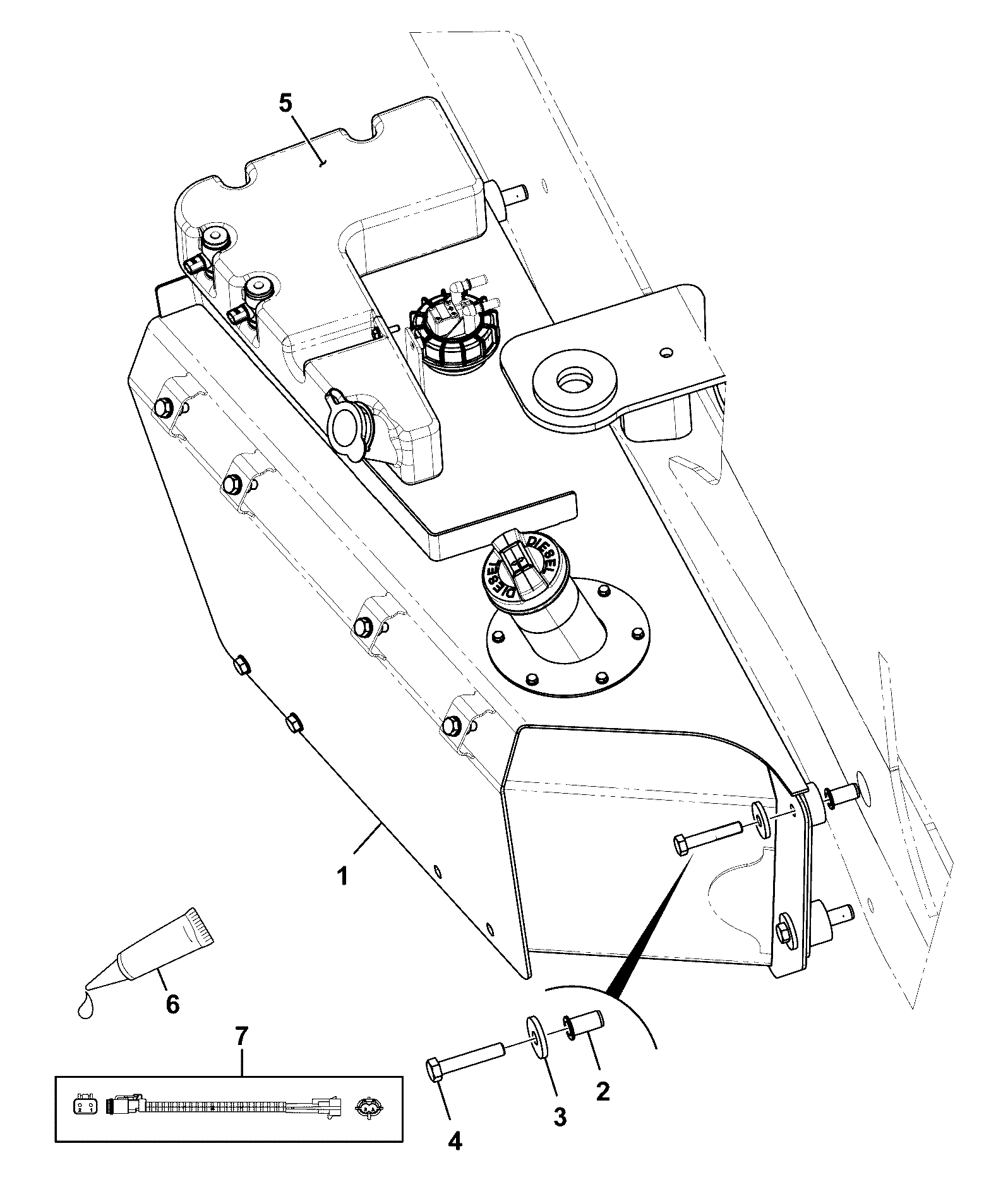

DIAG-B100-16-1-394728 B100-16-1 BODYWORK INSTALLATION ASSEMBLIES FUEL TANK WITH STOWAGE, USA BUILDS, 3CX COMPACT
View Diagram
