| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Sub Assy Fender RH NOT FOR SALE 332/C7360 | 1 | $71.76 | |||
| 3 | W.A. FENDER MTG - RH 332/P7637 | 1 | $305.08 | |||
| 4 | W.A. FENDER MTG - LH P980 332/P7634 402/L9333 | 1 | $298.06 | |||
| 5 | BRACKET - FENDER 331/47646 | 1 | $129.21 | |||
| 6 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $1.15 | |||
| 8 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $6.91 | |||
| 10 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 16 | PLUG.PLASTIC.BLACK 835/10035 | 1 | $2.37 | |||
| 17 | SUB ASSY FENDER RH 332/C7801 | 1 | $205.57 | |||
| 18 | P55 SUB ASSY FENDER LHF 332/G4058 | 1 | $103.47 | |||
| 20 | NLA 332/C7359 | 1 | $317.66 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

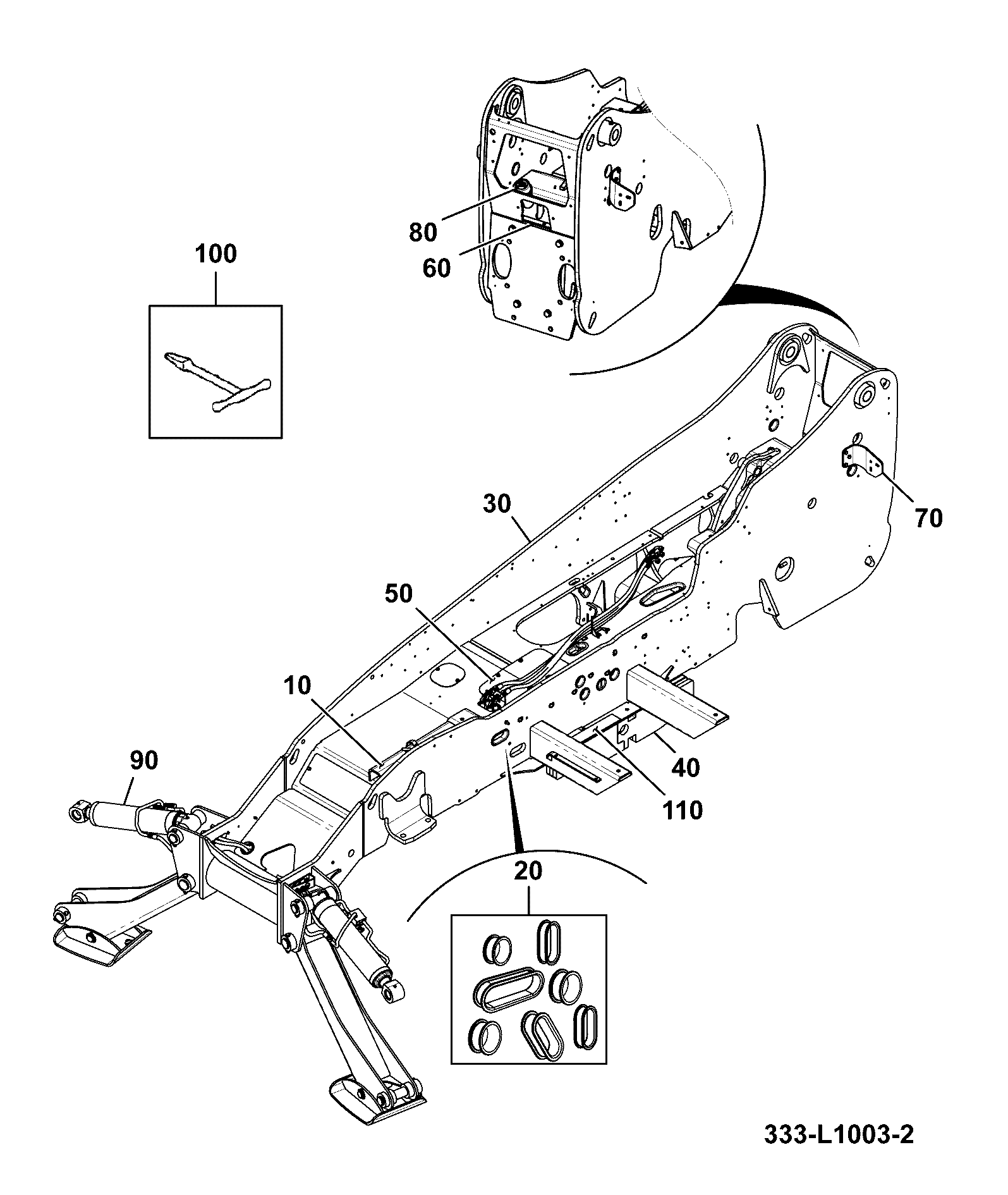

DIAG-B100-15-1-401708 B100-15-1 BODYWORK INSTALLATION ASSEMBLIES CHASSIS
View Diagram -

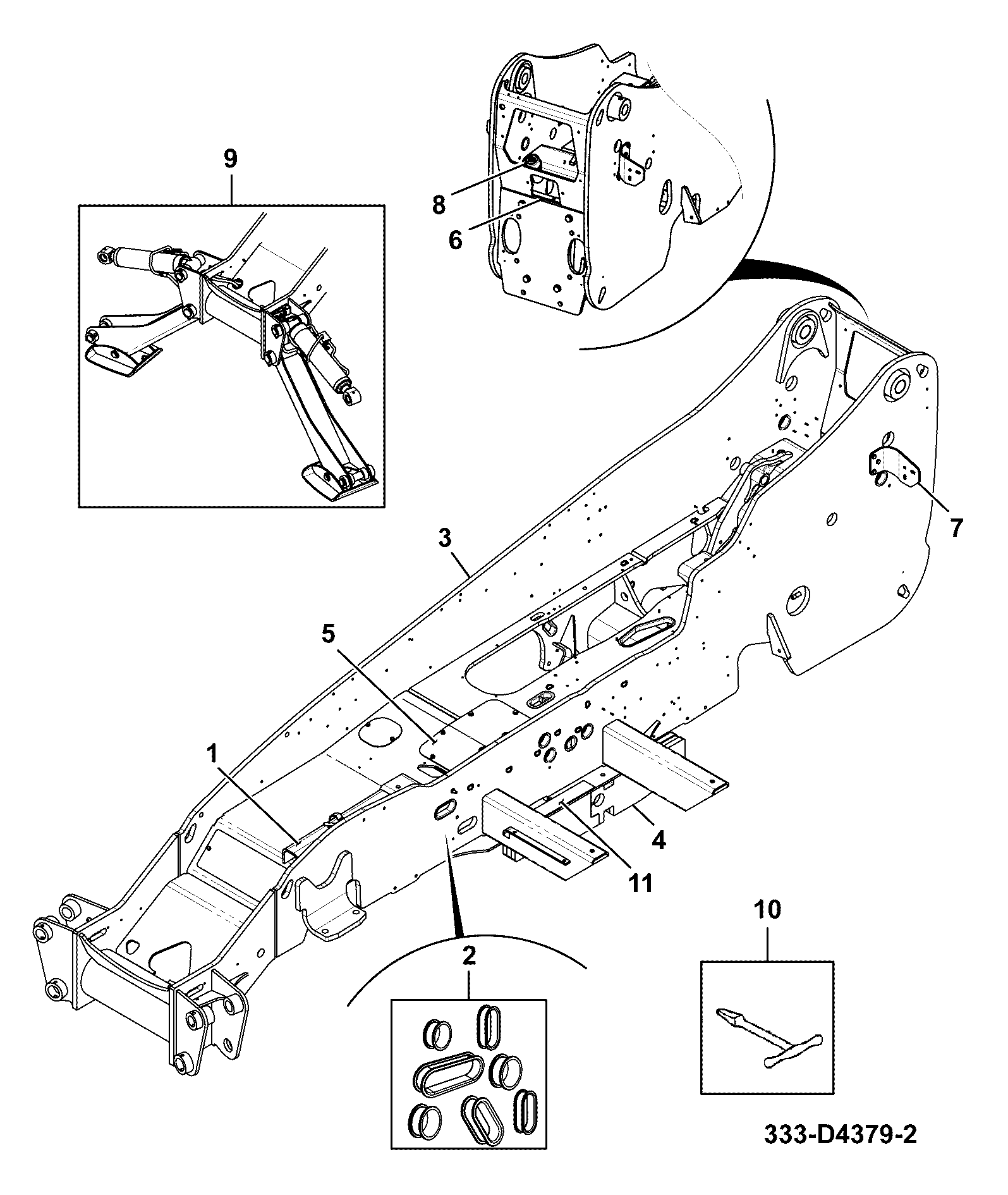

DIAG-B100-65-1-401708 B100-65-1 BODYWORK INSTALLATION ASSEMBLIES CHASSIS
View Diagram -

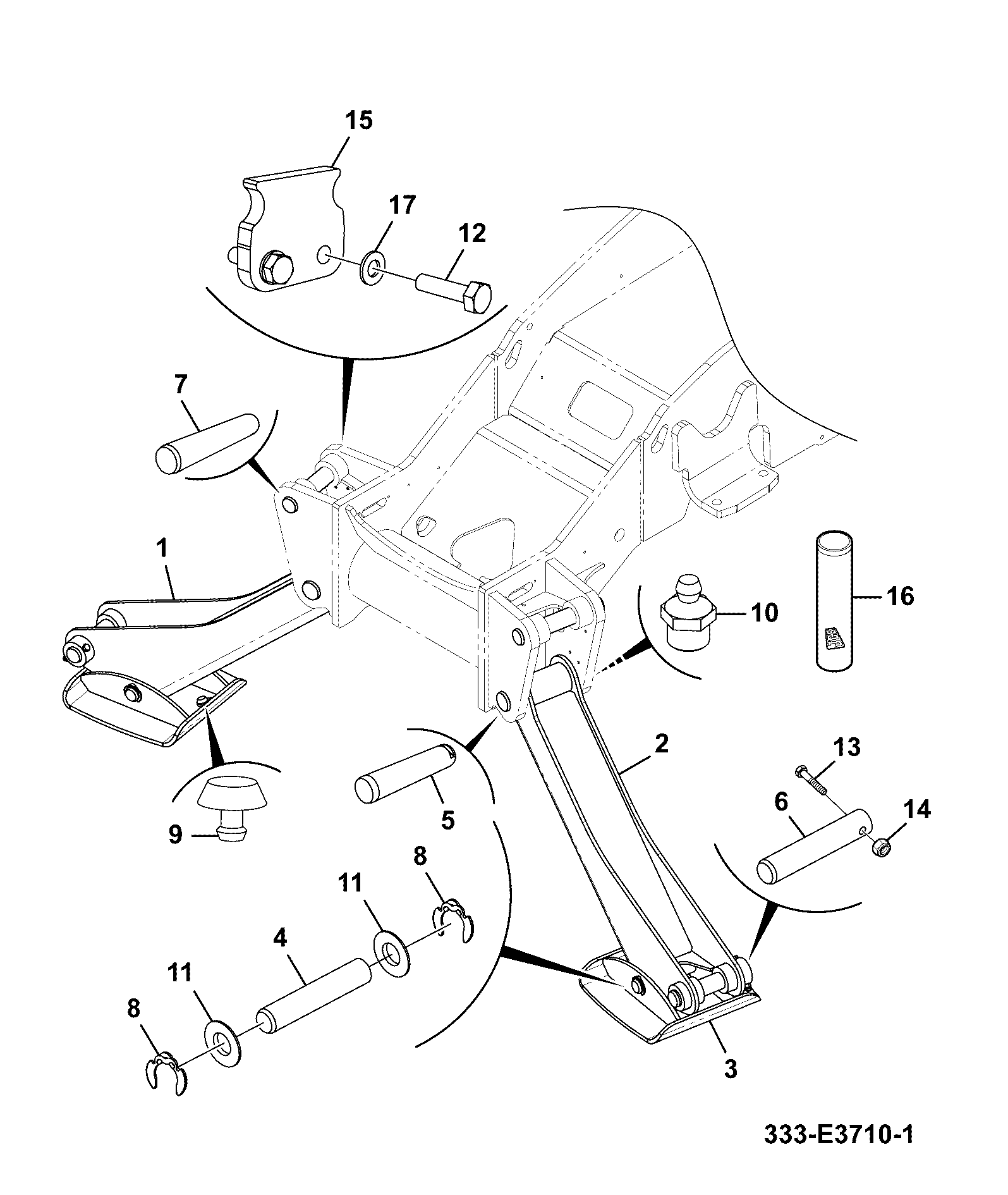

DIAG-B140-20-1-401708 B140-20-1 STABILISERS INSTALLATION LEGS
View Diagram
