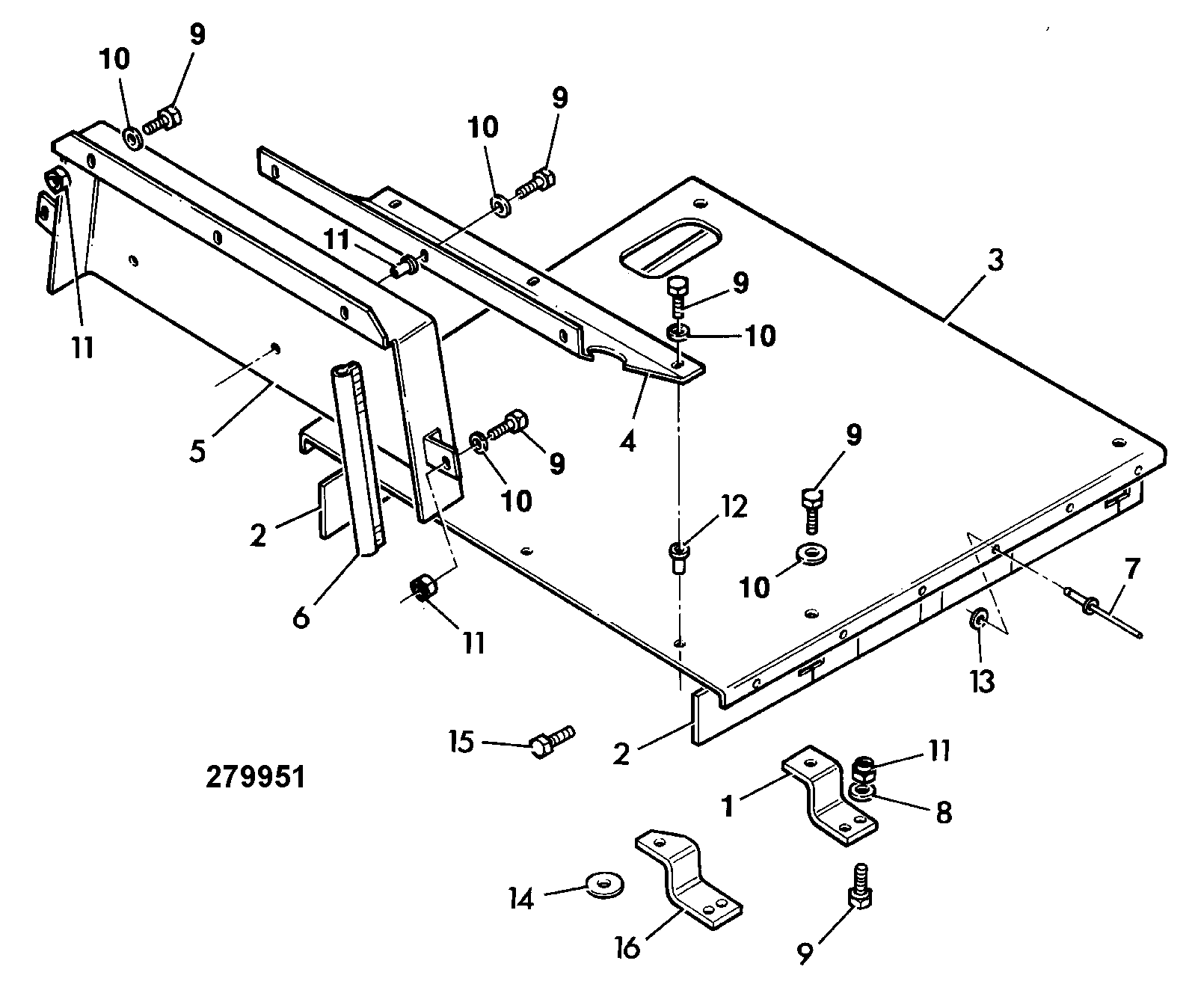

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | FENDER MOULDING RH REAR 331/23062 | 1 | $352.23 | |||
| 3 | ARM FENDER MOUNTIN 331/17292 | 1 | $115.91 | |||
| 4 | MOUNTING - FENDER RH BOTT 331/17293 | 1 | $135.05 | |||
| 5 | PLATE SPACER REAR 331/18506 | 1 | $113.51 | |||
| 7 | MOUNTING - FENDER LH TOP 331/17284 | 1 | $203.76 | |||
| 8 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 9 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 10 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 11 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | SET-SCREW M10 L-_50mm 1315/0412Z | 1 | $3.61 | |||
| 14 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 16 | SET SCREW M16x50 1315/0712Z | 1 | $12.55 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-B1-6-5-393531 B1-6-5 FENDERS FRONT ABS
View Diagram -
DIAG-B1-7-1-393531 B1-7-1 QUIET BUILD KIT
View Diagram -
DIAG-B1-6-4-393531 B1-6-4 FENDER EXTENSIONS REAR OPTIONAL
View Diagram
