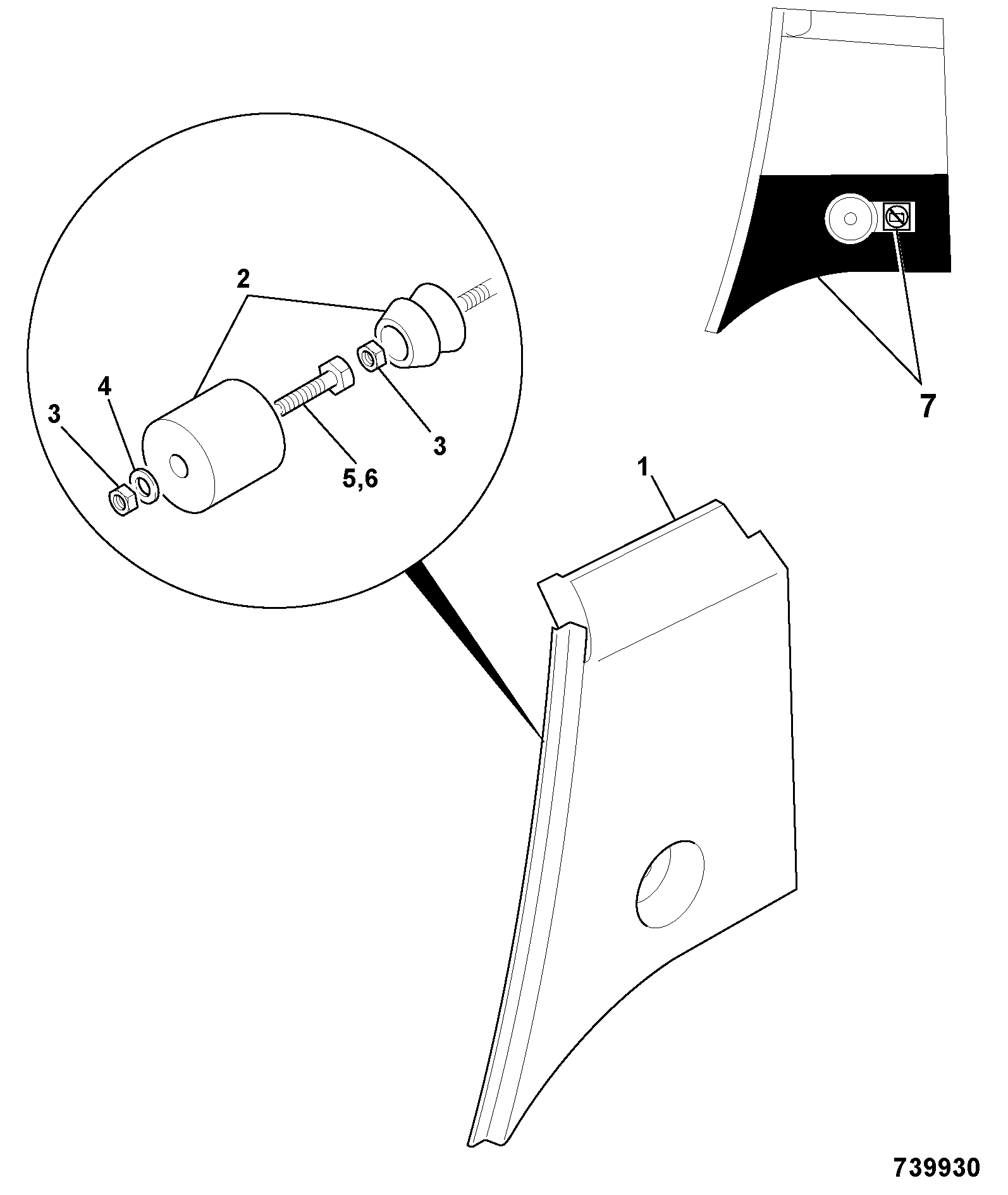

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | Bolt M24 x 340 lon 1315/4037D | 1 | $127.14 | |||
| 3 | NUT M24 1370/0903D | 1 | $15.30 | |||
| 4 | WASHER M24 1420/0014D | 1 | $4.62 | |||
| 5 | HEX.BOLT M16x110 LG 1315/3721D | 1 | $24.54 | |||
| 6 | M16 LOCK NUT 1370/0603D | 1 | $21.78 | |||
| 7 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 8 | TOWING PIN.ZINC PLTD. 295/00287 | 1 | $55.51 | |||
| 9 | R CLIP 821/00514 | 1 | $7.49 | |||
| 11 | WASHER WEDGE 295/00391 | 1 | $211.92 | |||
| 12 | LABEL JCB 817/04837 | 1 | $135.54 | |||
| 13 | BRACKET COUNTERWEIGHT W.A. 335/07367 | 1 | $371.63 | |||
| 14 | SET SCREW M12x40 1315/0510D | 1 | $2.86 | |||
| 15 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 16 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 17 | COUNTERWEIGHT HOLE COVER 826/11703 | 1 | $1.76 | |||
| 18 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 19 | SHIM 2.00MM 191/50003 | 1 | $66.23 | |||
| 19 | SHIM-1.2MM 191/50002 | 1 | $51.12 | |||
| 20 | BOOM END COVER 331/14928 346/00110 | 1 | $384.85 | |||
| 20 | BOOM END COVER-STD 331/13487 | 1 | $359.64 | |||
| 21 | M12X40-C'SK SOCKET HEAD SCREW 826/11454 | 1 | $7.49 | |||
| 22 | Panel 331/26231 | 1 | $55.14 | |||
| 23 | Panel 331/26232 | 1 | $54.33 | |||
| 24 | 5MM SPACER 123/07745 | 1 | $17.43 | |||
| 25 | PLATE-SPACER 331/52307 | 1 | $31.14 | |||
| 26 | SPACER-WEDGE 829/31321 | 1 | $16.86 | |||
| 27 | SET-SCREW M16 L-_40mm 1315/0710D | 1 | $3.11 | |||
| 28 | THIN NUT M16 1370/0602D | 1 | $1.46 | |||
Showing 1 to 28 of 28 parts
