Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RIVET NUT-M8(KANBAN) 826/01102 | 1 | $4.83 | ||||
| STRAINER 122/98439 | 1 | $77.94 | ||||
| 2 | PLATE COVER 274/00438 | 1 | $73.28 | |||
| 4 | M6 RIVET NUT 826/00972 | 1 | $2.63 | |||
| 5 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 7 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 12 | Bracket light/fuel 274/57700 | 1 | $807.71 | |||
| 12 | BRACKET LIGHT/FUEL 274/57900 | 1 | $791.46 | |||
| 13 | CAP - FILLER 122/62400 | 1 | $85.33 | |||
| 13 | DIESEL FILLER CAP 123/05892 | 1 | $159.15 | |||
| 14 | FILLER -FUEL 274/01041 | 1 | $258.68 | |||
| 15 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 16 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 17 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 20 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 21 | GASKET 813/10236 | 1 | $27.81 | |||
| 22 | PLATE BLANKING 274/00585 | 1 | $39.10 | |||
| 23 | GAUGE SIGHT 191/00319 | 1 | $267.99 | |||
| 24 | SEAL KIT 126/00104 | 1 | $49.65 | |||
| 25 | BOLT M10x45 1315/3411Z | 1 | $5.64 | |||
| 26 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 27 | Bracket 274/00785 | 1 | $42.75 | |||
| 28 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 29 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 30 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 32 | NUT RIVET 826/01595 | 1 | $31.21 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-

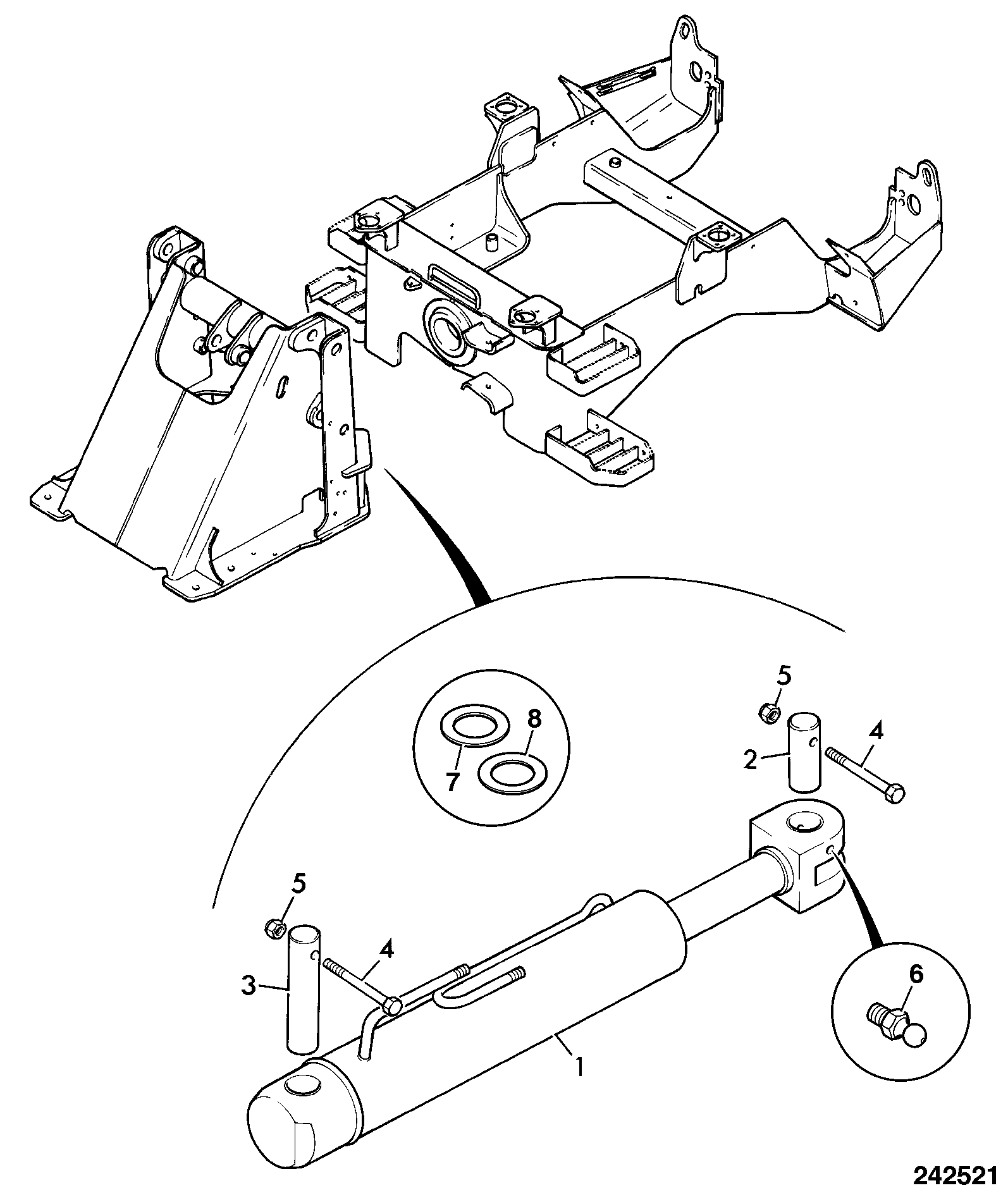

DIAG-B1-4-1-404401-15520719 B1-4-1 STEER RAM PIVOTS
View Diagram -

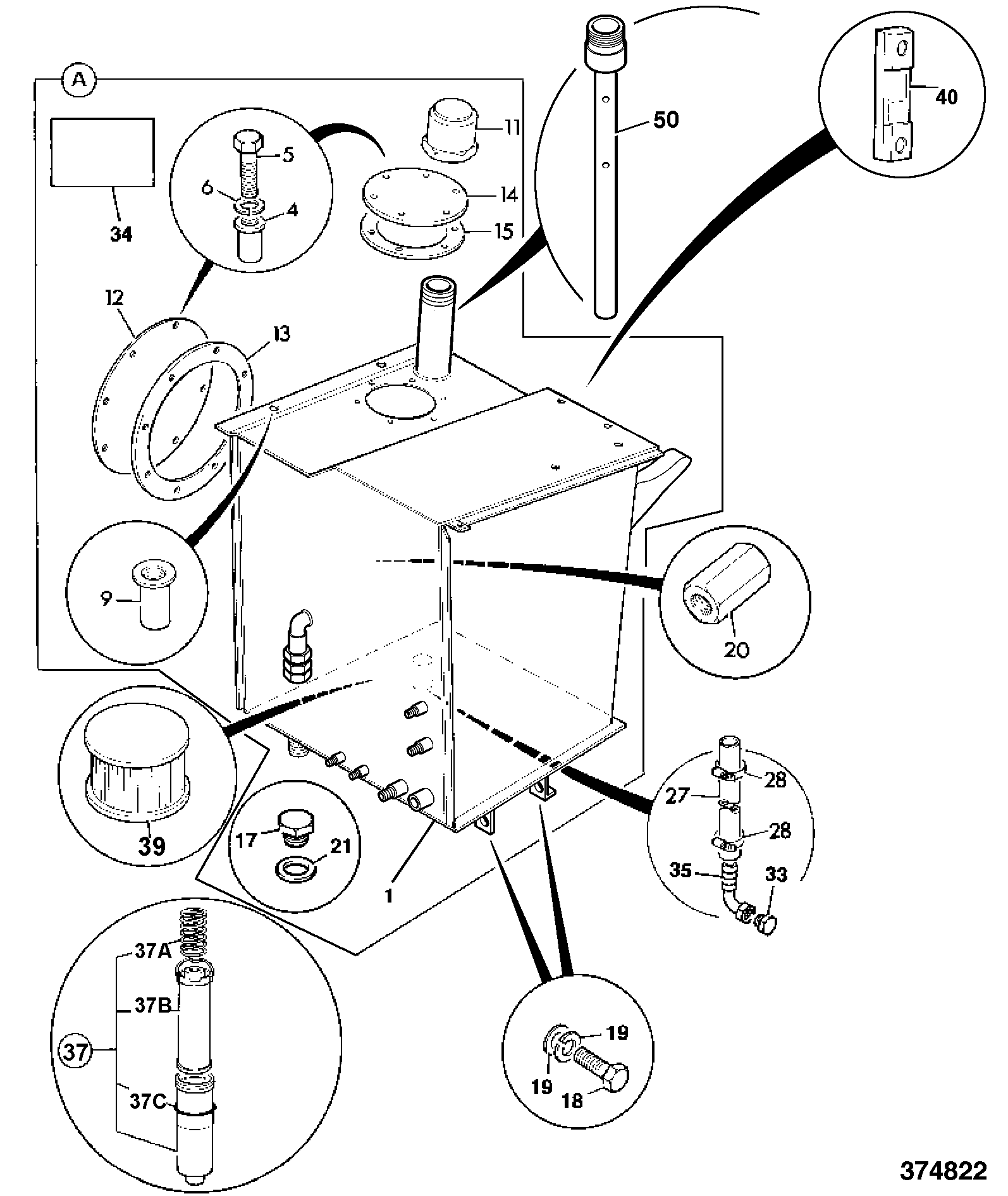

DIAG-B1-6-1-404401 B1-6-1 TANK, HYDRAULIC
View Diagram -

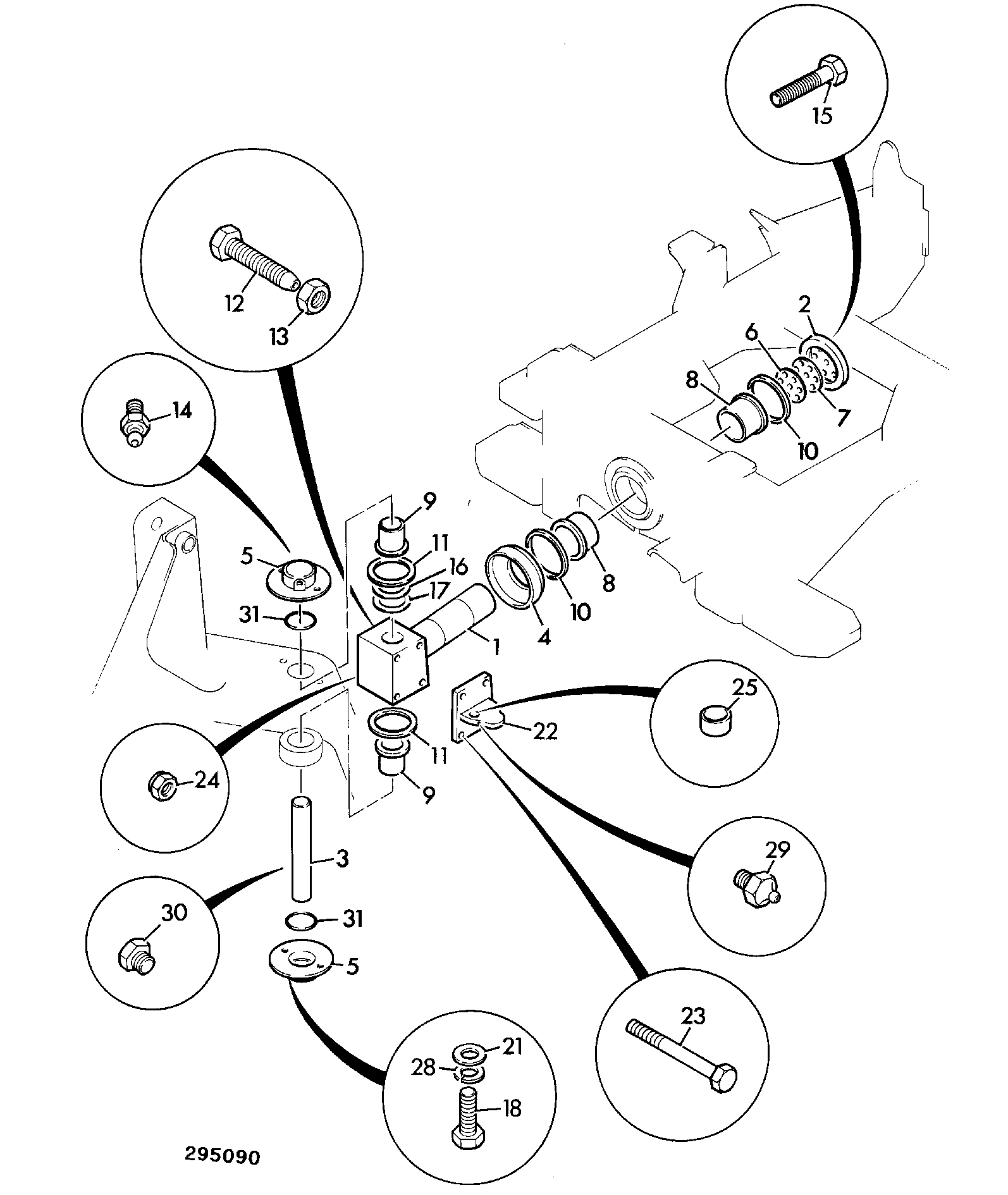

DIAG-B1-3-1-404401 B1-3-1 CENTRE PIVOT
View Diagram
