Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HANDLE 910/23501 | 1 | $15.78 | ||||
| RUBBER BUFFER - M8 331/36544 | 1 | $23.93 | ||||
| SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | ||||
| 1 | PLATE-BONNET RELEASE BRKT 331/39839 | 1 | $116.50 | |||
| 2 | BONNET RELEASE CABLE (N) 910/60127 | 1 | $304.70 | |||
| 3 | DOOR LATCH R/H X300 NEW 826/10991 | 1 | $265.89 | |||
| 4 | 80mm compression spring 814/10169 | 1 | $30.26 | |||
| 5 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 7 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 8 | WASHER -SPECIAL 823/00544 | 1 | $26.07 | |||
| 10 | 'STRIKER BOLT (Reinstate) ( 05.0020.4021 331/36334 | 1 | $51.77 | |||
| 11 | Bracket lock mount 331/32425 | 1 | $82.58 | |||
| 15 | BONNET & GRILL ABI 331/40214 | 1 | $8,940.91 | |||
| 15A | GRILL - BONNET - ATB 331/40205 | 1 | $408.79 | |||
| 15B | GRILL - BONNET - ATB 331/40206 | 1 | $325.24 | |||
| 17 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 20 | GAS STRUT 234/13702 | 1 | $149.50 | |||
| 22 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | MOUNT - GAS STRUT 331/43133 | 1 | $52.36 | |||
| 25 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 26 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B1-5-1-400577-12836568 B1-5-1 BONNET INSTALLATION
View Diagram -

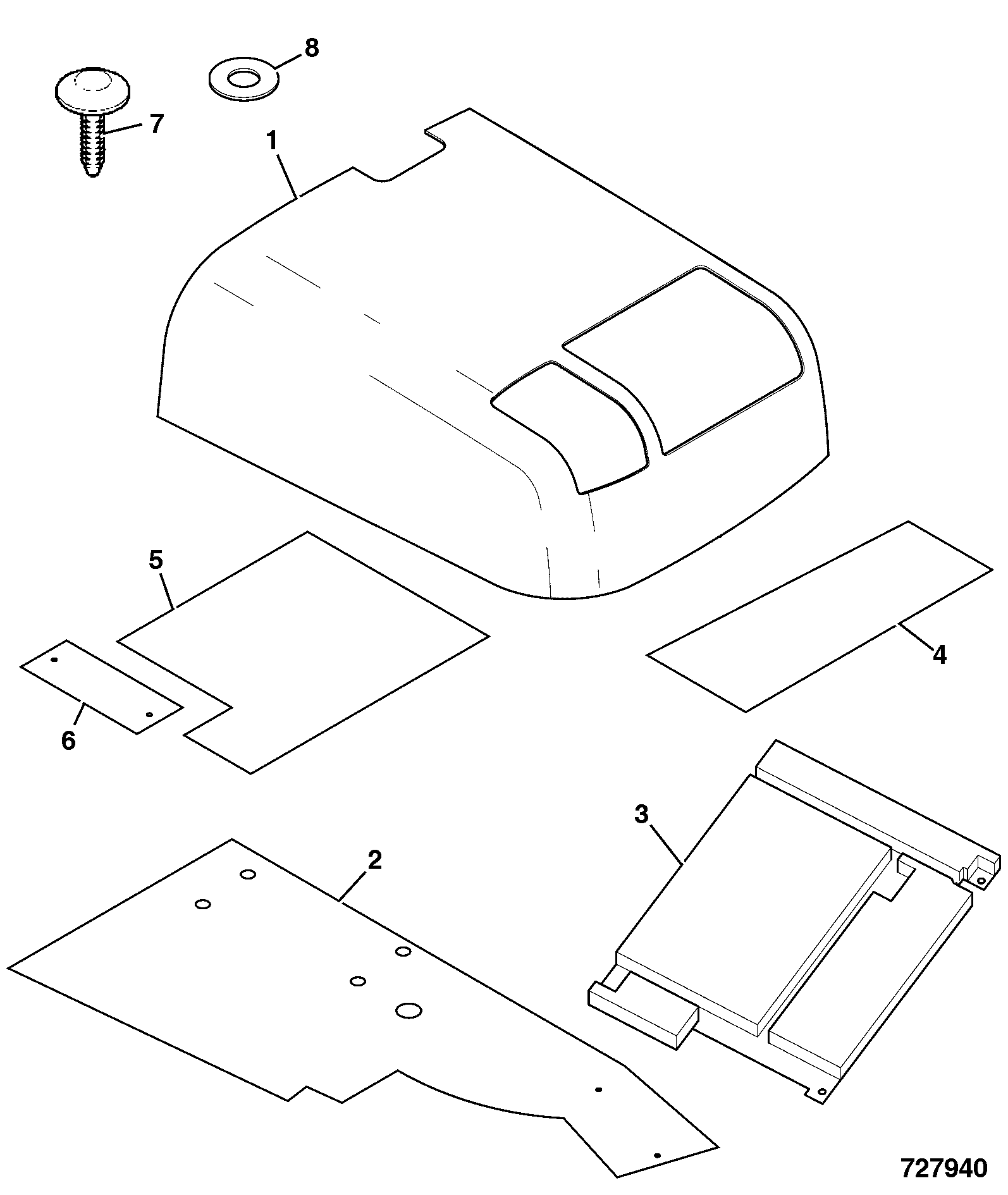

DIAG-B1-5-2-400577 B1-5-2 BONNET,GRILLE SOUNDPROOFING
View Diagram -

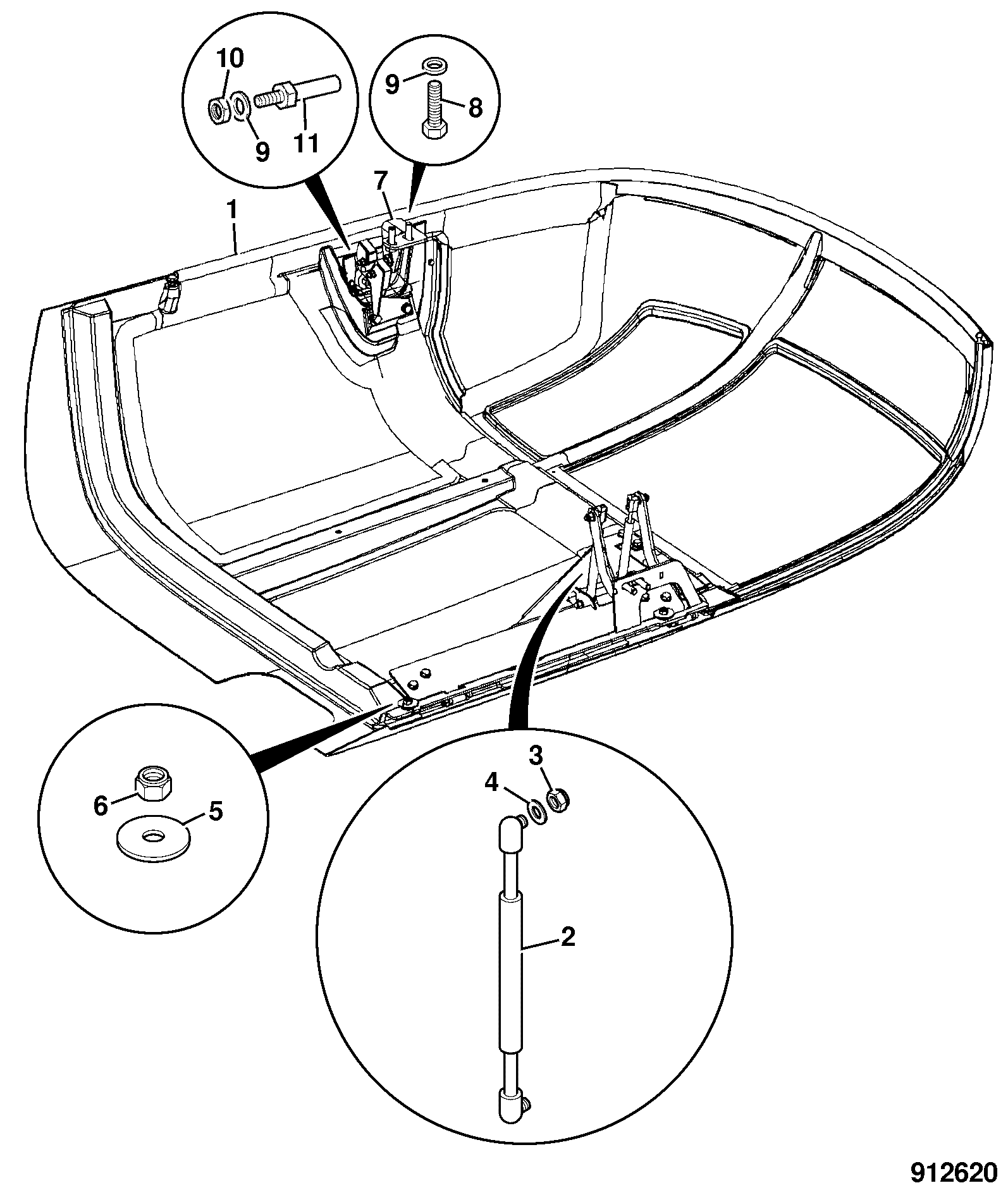

DIAG-B1-5-1-400577-12836567 B1-5-1 BONNET INSTALLATION
View Diagram
