Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (P) (W) (P) JCB PADLOCK 123/04721 | 1 | $70.74 | ||||
| 1 | COVER MOULDING 162/01607 | 1 | $7,805.83 | |||
| 2 | HINGE ENGINE COVER 162/02426 | 1 | $218.00 | |||
| 3 | GRILLE 162/01705 | 1 | $348.93 | |||
| 4 | STRIP FOAM 2100 MM 926/12104 | 1 | $94.46 | |||
| 5 | SEAL ANTI RE-CIRC 161/00359 | 1 | $266.26 | |||
| 5 | SEAL ANTI RE-CIRC 161/00389 | 1 | $433.52 | |||
| 6 | STRUT GAS 160/01218 | 1 | $159.06 | |||
| 7 | LOCK 162/01718 | 1 | $278.74 | |||
| 8 | SET SCREW M6x12 1315/0201Z | 1 | $0.62 | |||
| 9 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 10 | EDGE SEAL LEAF 30M (ROLL) 926/16100 | 1 | $396.24 | |||
| 11 | RUBBER SEAL 926/18300 | 1 | $104.98 | |||
| 12 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 13 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 16 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 17 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 18 | COVER ENG BAY FRNT 161/00526 | 1 | $347.67 | |||
| 19 | SCREW.M5X20LG. 826/01406 | 1 | $10.69 | |||
| 21 | BONNET STOP. (P710-T) 828/00398 | 1 | $44.10 | |||
| 23 | WASHER 823/00030 | 1 | $3.85 | |||
| 24 | NUT M_5 STD PLAIN 1370/0001Z | 1 | $0.15 | |||
| 25 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 26 | WASHER M_5 SPRING 1425/0005Z | 1 | $0.81 | |||
| 28 | WASHER 823/00445 | 1 | $0.23 | |||
| 30 | GROMMET 828/00267 | 1 | $11.45 | |||
| 31 | CLIP.LOCKABLE.ENG.COVER 162/00645 | 1 | $198.72 | |||
| 32 | HOOK 162/00647 | 1 | $36.41 | |||
| 33 | SET-SCREW M_5 L-25mm 1315/0107Z | 1 | $0.85 | |||
| 34 | BLOCK 162/01962 | 1 | $407.01 | |||
| 35 | SET SCREW M5x20 1315/0105Z | 1 | $0.95 | |||
| 36 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 37 | WASHER 2BA 1414/0011Z | 1 | $0.09 | |||
| 38 | PLATE 162/02375 | 1 | $65.90 | |||
| 39 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 40 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 41 | PLATE REINFORCING 162/02466 | 1 | $32.93 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-

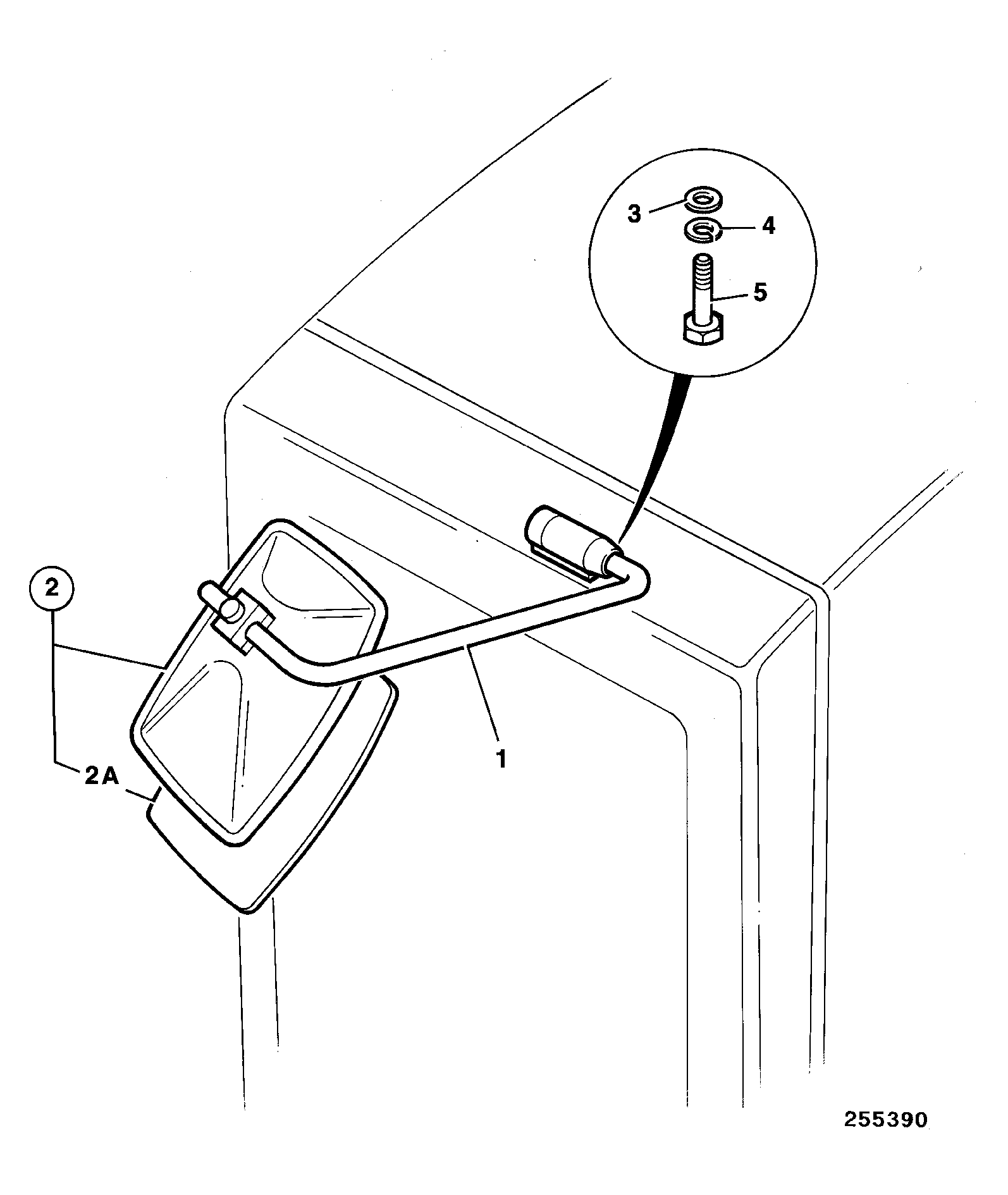

DIAG-B1-4-6-400570 B1-4-6 MIRROR ASSEMBLY QUICKHITCH PLASTIC BONNET
View Diagram -

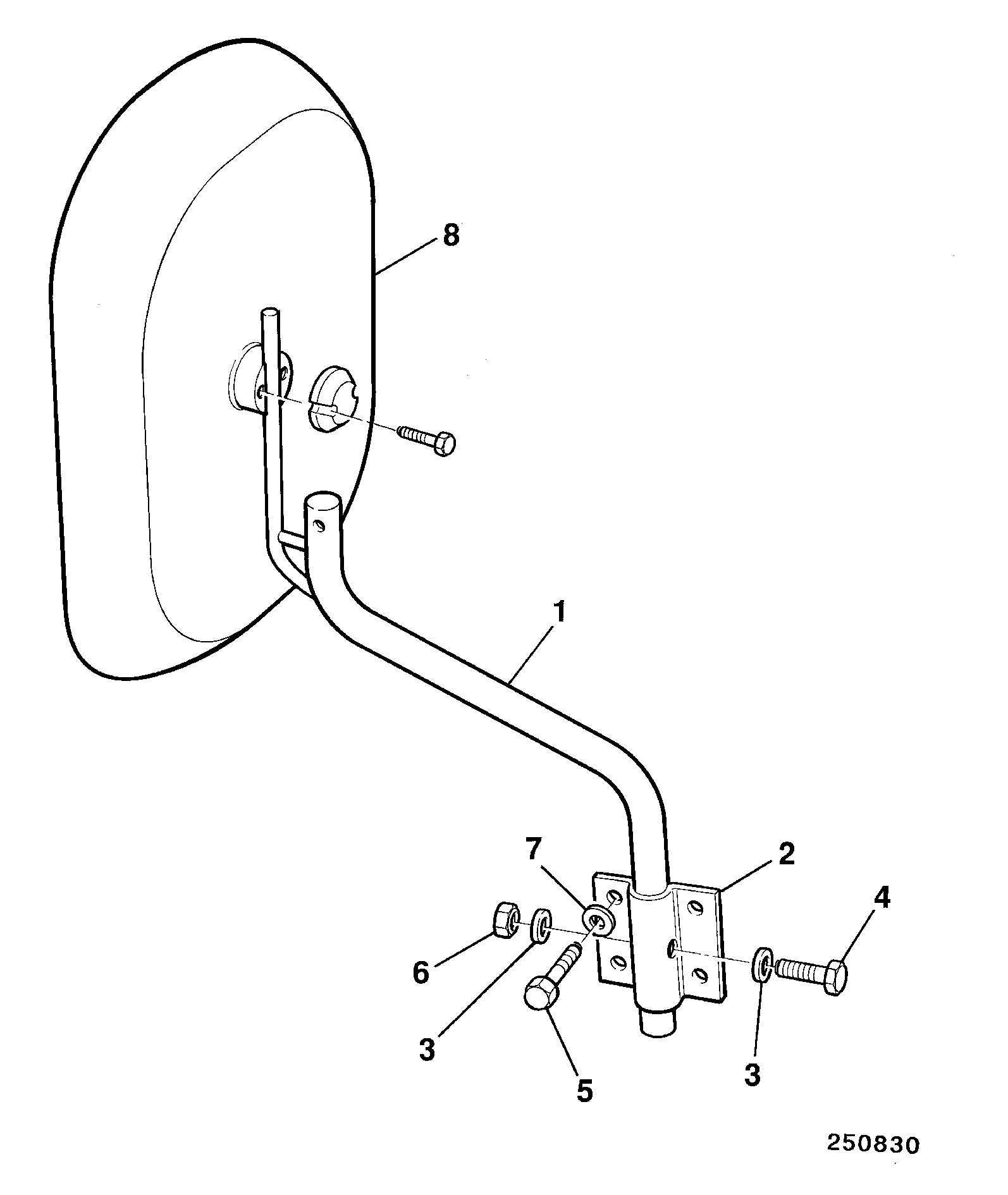

DIAG-B1-4-5-400570-12832661 B1-4-5 MIRROR/LIGHT CHASSIS MOUNTING
View Diagram -
DIAG-B1-6-1-400570-12832667 B1-6-1 TANK,HYDRAULIC & BATTERY BOX
View Diagram
