B1-4-3 FLOORMAT ASSEMBLY Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FLOORMAT 802/3/4 331/34694	1	AVAILABLE TO ORDER	$495.70	Quantity
2	KICK STRIP 331/30209 331/36839	1	AVAILABLE TO ORDER	$141.12	Quantity
3	C/SUNK SOCKET SCREW 826/11031	1	AVAILABLE TO ORDER	$0.81	Quantity
6	STRIP 331/36901	1	AVAILABLE TO ORDER	$28.16	Quantity

Showing 1 to 4 of 4 parts

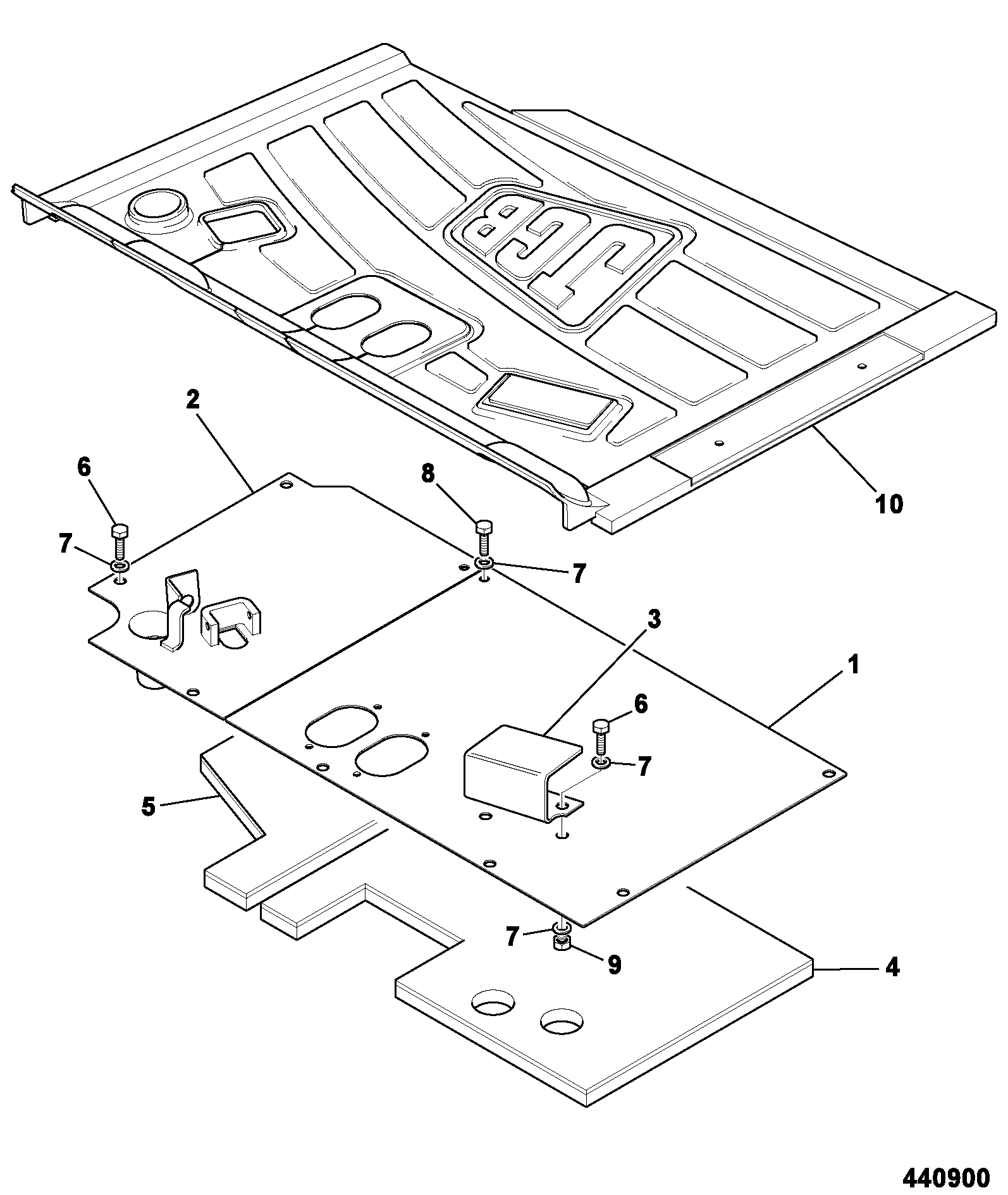

DIAG-B1-4-1-397929-12046542 B1-4-1 PLATE FLOOR
View Diagram

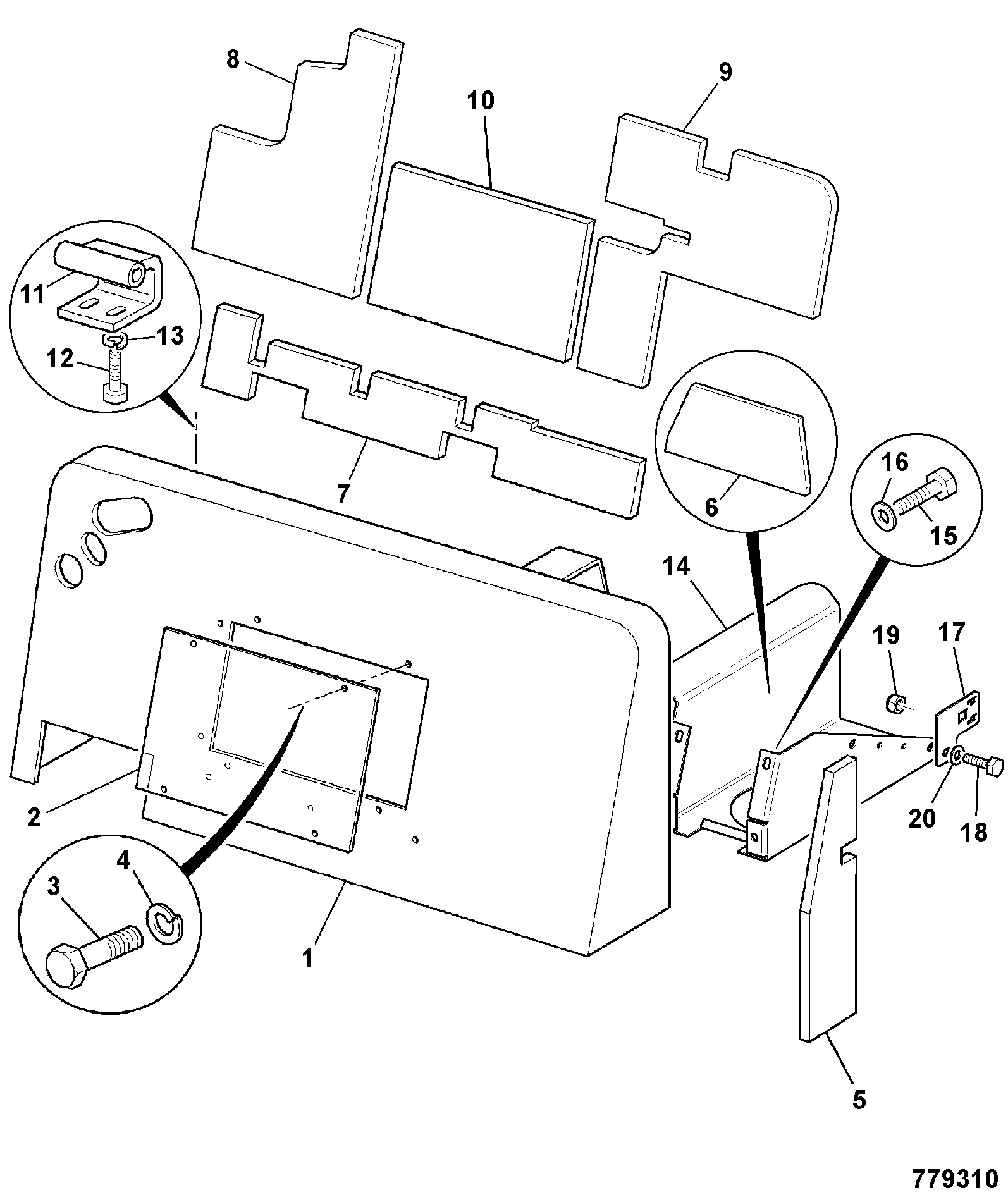

DIAG-B1-5-1-397929-12046545 B1-5-1 BULKHEAD & SOUNDPROOFING
View Diagram
DIAG-B1-6-1-397929 B1-6-1 COVERS, ENGINE
View Diagram

Previous Assembly DIAG-B1-4-1-397929-12046542 B1-4-1 PLATE FLOOR Next Assembly DIAG-B1-5-1-397929-12046545 B1-5-1 BULKHEAD & SOUNDPROOFING
