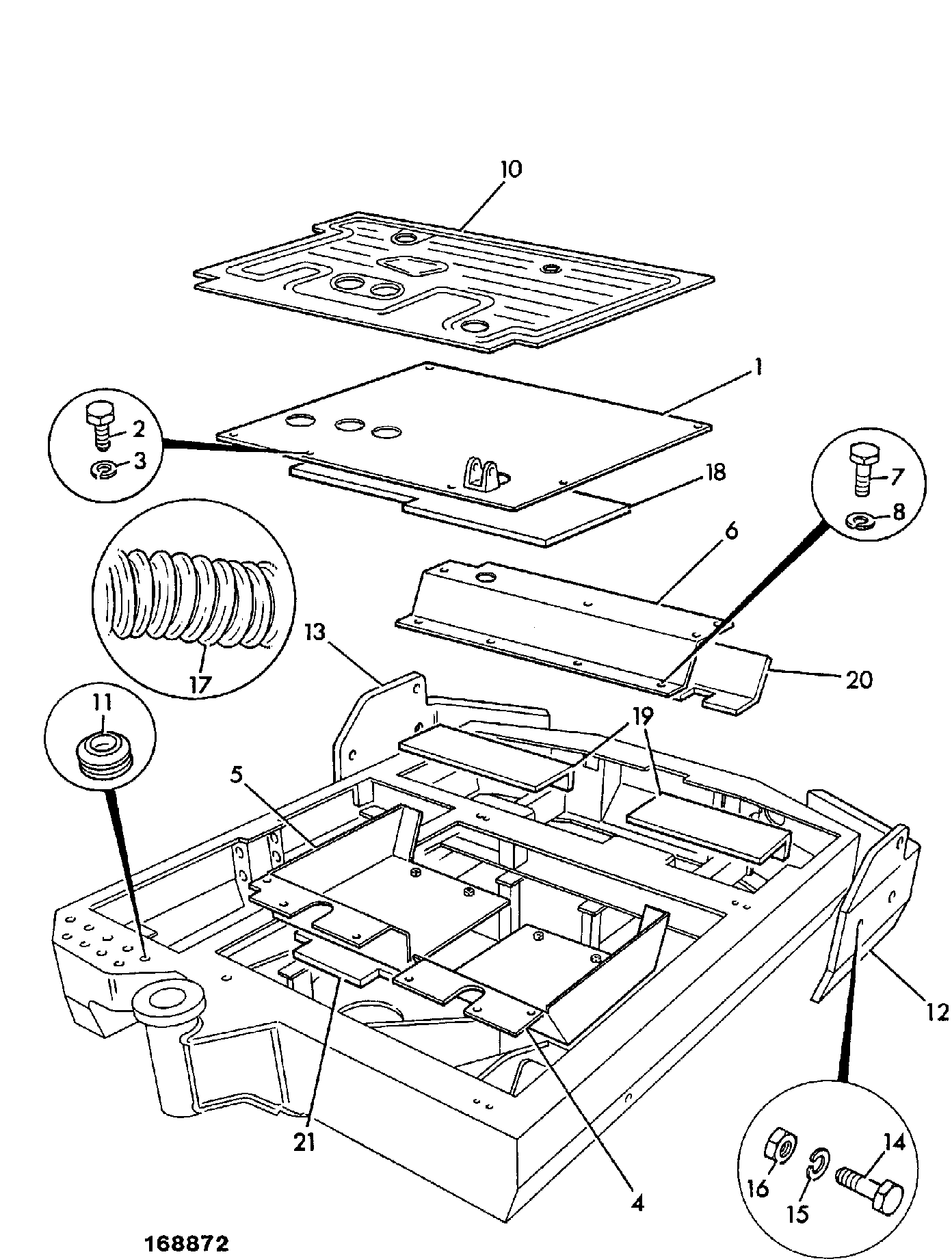

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CLIP SNAPPER 231/10603 | 1 | $5.13 | ||||
| 3 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 4 | SPRING WASHER M8 823/00415Z | 1 | $0.30 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 7 | LOCTITE #275 50ML 4102/0502 | 1 | $117.25 | |||
| 8 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 11 | O RING 2403/0236 | 1 | $1.05 | |||
| 12 | CAP BREATHER 231/10602 | 1 | $54.73 | |||
| 13 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 14 | WASHER SEAL 823/00407 | 1 | $4.69 | |||
| 15 | O RING 2405/0211 | 1 | $6.02 | |||
| 17 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 18 | ELEMENT BREATHER 32/905200 | 1 | $168.00 | |||
| 19 | TUBE-3.5 METRES 647/00327 647/00339 | 1 | $72.92 | |||
| 23 | SUCTION STRAINER.1 1/2" 32/904200 | 1 | $34.95 | |||
| 24 | BLANKING PLUG 816/82003 | 1 | $3.91 | |||
| 25 | DOWTY WASHER 1406/0016 | 1 | $7.89 | |||
| 26 | CAP 816/83007 | 1 | $43.89 | |||
| 27 | O RING BS021 NBR90 2401/0610 | 1 | $1.32 | |||
| 28 | BUFFER RUBBER 231/07901 | 1 | $27.07 | |||
| 29 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 30 | SPRING WASHER M10 823/00416Z | 1 | $0.15 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B1-2-20-398017 B1-2-20 TANK, DIESEL FUEL
View Diagram -
DIAG-B1-4-20-398017 B1-4-20 FLOORPLATES, MAT & COUNTERWEIGHTS
View Diagram -
DIAG-B1-1-20-398017 B1-1-20 MAINFRAME
View Diagram
