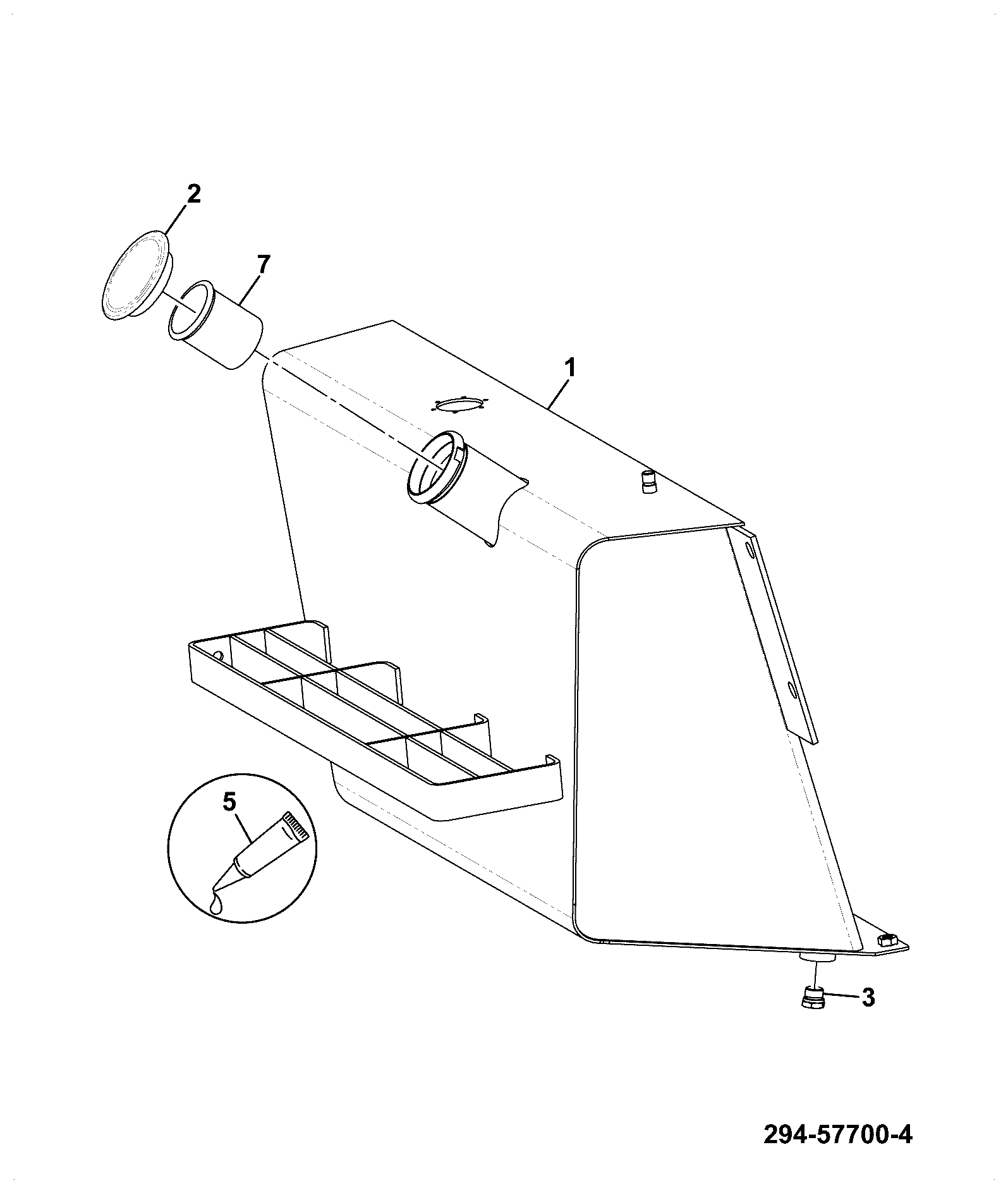

B1-3-10 TANK, DIESEL FUEL & FITTINGS WELD ON STEP, ABI Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	TANK FUEL 294/57700	1	AVAILABLE TO ORDER	$2,875.21	Quantity
2	CAP - FILLER 122/62400	1	2 IN STOCK	$85.33	Quantity
3	PLUG 3/4 "O RING BOSS 1745/0003	1	AVAILABLE TO ORDER	$2.56	Quantity
5	HERMETITE 4102/0800	1	AVAILABLE TO ORDER	$188.98	Quantity
7	STRAINER 122/98439	1	AVAILABLE TO ORDER	$77.94	Quantity

Showing 1 to 5 of 5 parts
