Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (P) (W) WEATHERSEAL ROLE 50 MTR Roll 926/07800 926/14900 | 1 | $12.25 | ||||
| 1 | WA FILTER BOX DOOR 333/R9285 | 1 | $240.01 | |||
| 2 | WA HINGE 332/W3900 | 1 | $67.63 | |||
| 3 | WA HINGE PIN 332/W4460 | 1 | $14.31 | |||
| 4 | (P) BEARING - 10 ID PLASTIC 332/T2015 | 1 | $3.21 | |||
| 5 | WA LATCH MTG 333/R9276 | 1 | $546.51 | |||
| 6 | SPRUNG DOOR RETAINER 332/T9574 | 1 | $76.75 | |||
| 7 | HANDLE BLACK POLYAMIDE 162/00643 | 1 | $8.80 | |||
| 8 | NUT M4 STD PLAIN 1370/9401Z | 1 | $0.50 | |||
| 9 | PLAIN WASHER M4 (BR3) 1420/0004D | 1 | $0.58 | |||
| 10 | M4X15 CSK SCREW (P710) (BR3) 826/11417 | 1 | $0.62 | |||
| 11 | BOLT M5 button hd (P493) 826/11127 | 1 | $27.66 | |||
| 12 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 13 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 14 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 16 | NUT M6 SELF LOCK WW 1371/0103D | 1 | $15.71 | |||
| 17 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 20 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 21 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 23 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

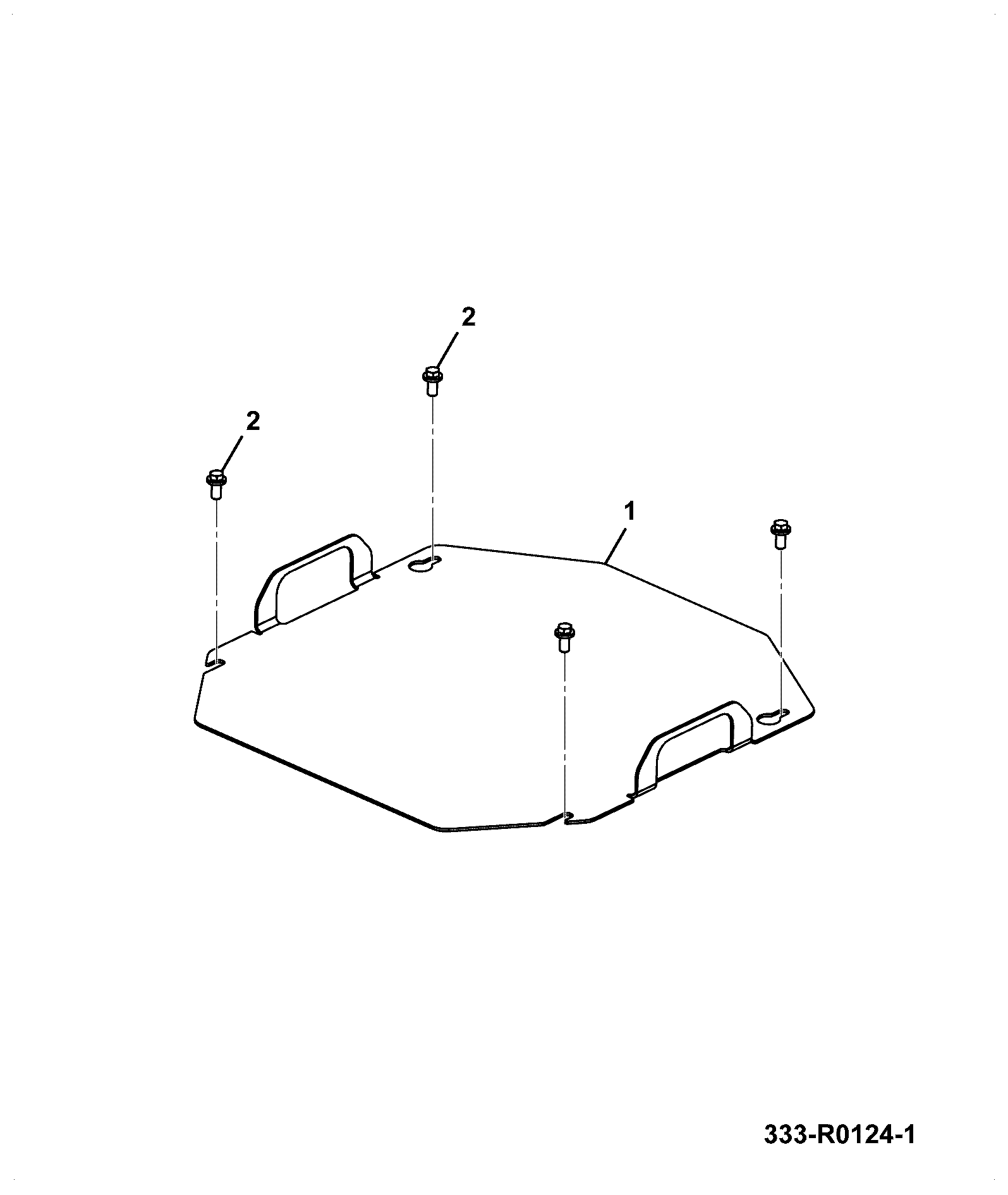

DIAG-B1-1-10-404996 B1-1-10 CHASSIS FRONT COVER PLATE
View Diagram -

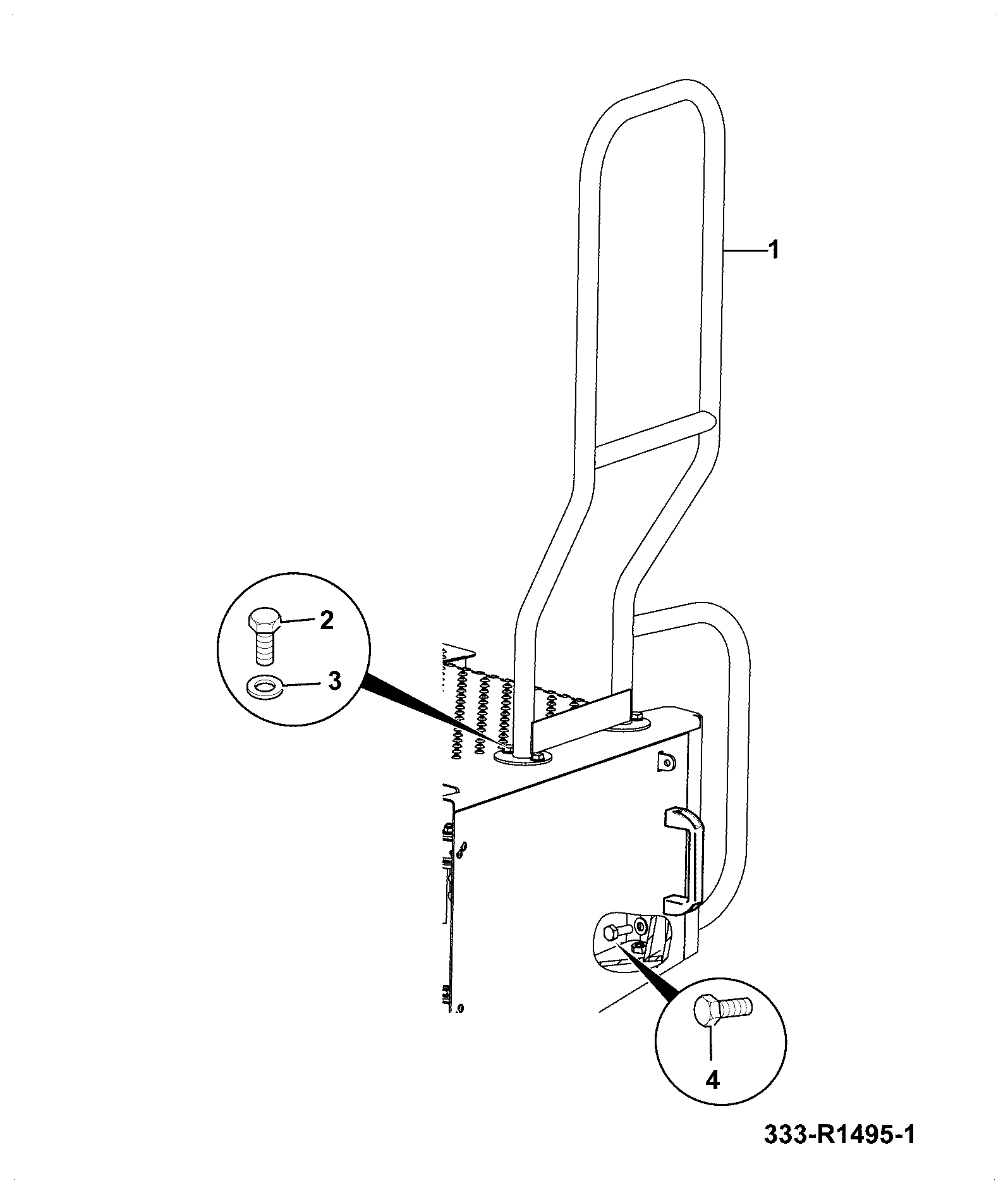

DIAG-B1-3-10-404996 B1-3-10 BODYWORK FRONT GRAB RAIL, LH
View Diagram -
DIAG-B0-4-1-404996 B0-4-1 BODY WORK BATTERY BOX ASSEMBLIES
View Diagram
