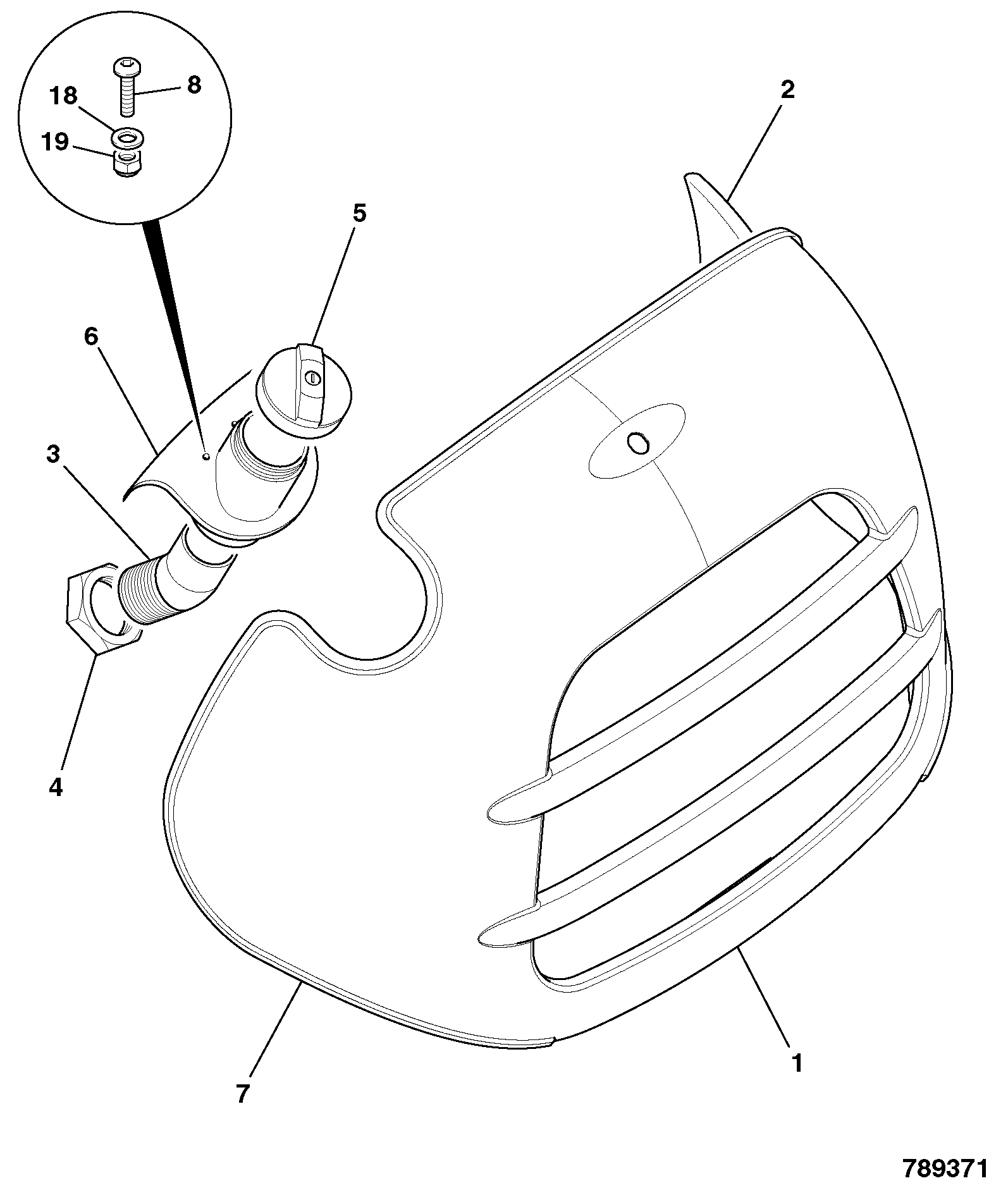

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Seal 984/20375 | 1 | $26.40 | ||||
| 2 | Spring 331/69142 903/21215 | 1 | $15.33 | |||
| 3 | FILTER, SUCTION 32/925556 | 1 | $294.44 | |||
| 3A | O RING 32/920301 | 1 | $40.42 | |||
| 4 | Filter Return 32/925555 | 1 | $340.03 | |||
| 4A | Element Filter 6 m 32/925557 | 1 | $153.58 | |||
| 4B | ELEMENT - 10 MICRON 32/925363 | 1 | $134.61 | |||
| 4C | CAP 32/925377 | 1 | $20.89 | |||
| 5 | CAP-SCREW M10 L-_25mm GRADE 12.9 1391/3407D | 1 | $2.78 | |||
| 7 | Plug Drain 9/16unf 332/T1016 | 1 | $31.57 | |||
| 8 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 9 | GUAGE SIGHT 265/01289 | 1 | $78.45 | |||
| 10 | SUCTION HOSE 8020X 332/R1458 | 1 | $569.18 | |||
| 11 | CLIP - WORMDRIVE 35/50mm 2201/0008 | 1 | $5.41 | |||
| 11 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 12 | ADAPTOR G5/8A x 3/4 SAE 816/90007 | 1 | $21.93 | |||
| 13 | WA SEDIMENTER BRACKET 335/08528 | 1 | $56.81 | |||
| 14 | LOWER TANK BRACKET 331/45573 | 1 | $4.08 | |||
| 15 | (W) (P) SET SCREW M10x16(RE INSTATE) 1315/0403D | 1 | $1.16 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | HEX.BOLT M10x40 LG (P664/P545) 1315/3410D | 1 | $1.89 | |||
| 18 | SPACER 234/06502 | 1 | $53.62 | |||
| 19 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 21 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
Showing 1 to 24 of 24 parts
