Scroll to zoom Click a part # to view details

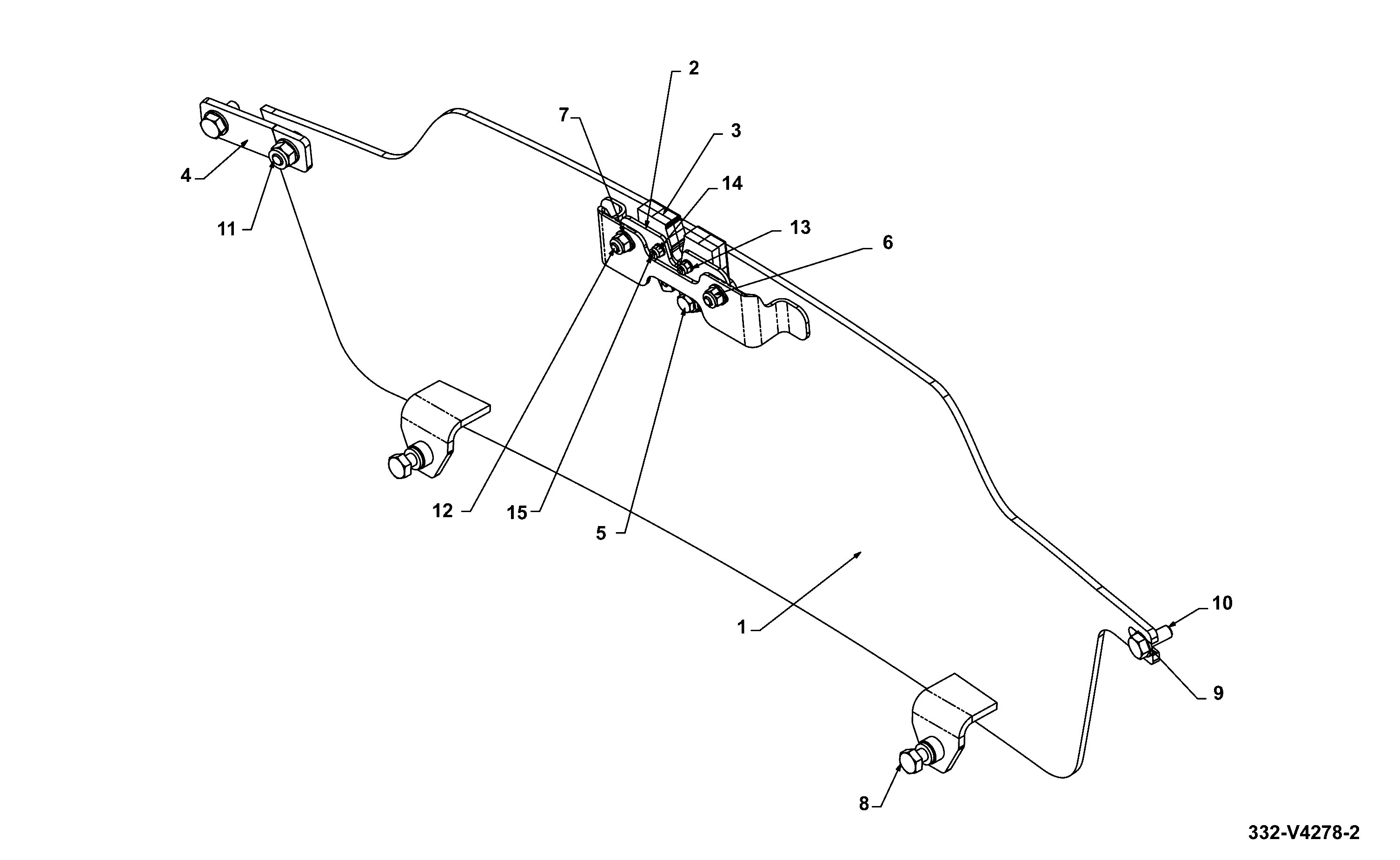

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA REAR COVER (NO LIGHTS) 332/V4283 | 1 | $930.21 | |||
| 2 | PRESSING 332/V4170 | 1 | $18.57 | |||
| 3 | LATCH 332/S6158 | 1 | $162.80 | |||
| 4 | TOP PLATE 332/V4007 | 1 | $129.28 | |||
| 5 | LOCK 826/11012 | 1 | $150.74 | |||
| 6 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 8 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 9 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 10 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 11 | NUT LOCK M10 (P545) 1371/0303D | 1 | $6.62 | |||
| 12 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 13 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 14 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 15 | SET-SCREW M_5 L-_30mm 1315/0108D | 1 | $3.97 | |||
| 16 | (W) (P) GROMMET TLTe (P524) 123/00576 | 1 | $26.77 | |||
| 17 | (W) (P) EXTENSION SPRING (P564) 814/10210 | 1 | $14.65 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-B1-24-1-400502 B1-24-1 COVER REAR NO LIGHTS
View Diagram -
DIAG-B1-24-5-400502 B1-24-5 COVER REAR NO LIGHTS
View Diagram -
DIAG-B1-23-1-400502 B1-23-1 CHAFF GUARD
View Diagram
