Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KEY 476/44702 | 1 | $30.26 | ||||
| 2 | FILLER CAP 476/44701 | 1 | $116.38 | |||
| 3 | DRAIN PLUG - MAGNETIC 816/80012 | 1 | $45.32 | |||
| 4 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 6 | HOSE CUT LENGHT 648/03502 | 1 | $27.62 | |||
| 7 | WASHER 1403/0003 | 1 | $4.03 | |||
| 9 | ADAPTER 3/8BSP X 8 816/60322 | 1 | $51.52 | |||
| 10 | BREATHER 476/31301 | 1 | $57.43 | |||
| 11 | SUCTION FILTER 32/904800 | 1 | $58.29 | |||
| 13 | RETURN FILTER 581/06200 | 1 | $381.43 | |||
| 14 | SIGHT GAUGE 123/00306 | 1 | $44.03 | |||
| 15 | SEAL KIT 126/00104 | 1 | $49.65 | |||
| 16 | CAP SCREW M8x20(KANBAN) 1391/3305Z | 1 | $2.94 | |||
| 17 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 18 | LABEL HYDRAULIC OIL 817/02306 | 1 | $10.35 | |||
| 19 | BRACKET SUPPORT 481/00295 | 1 | $1,726.53 | |||
| 20 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 21 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 22 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 23 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

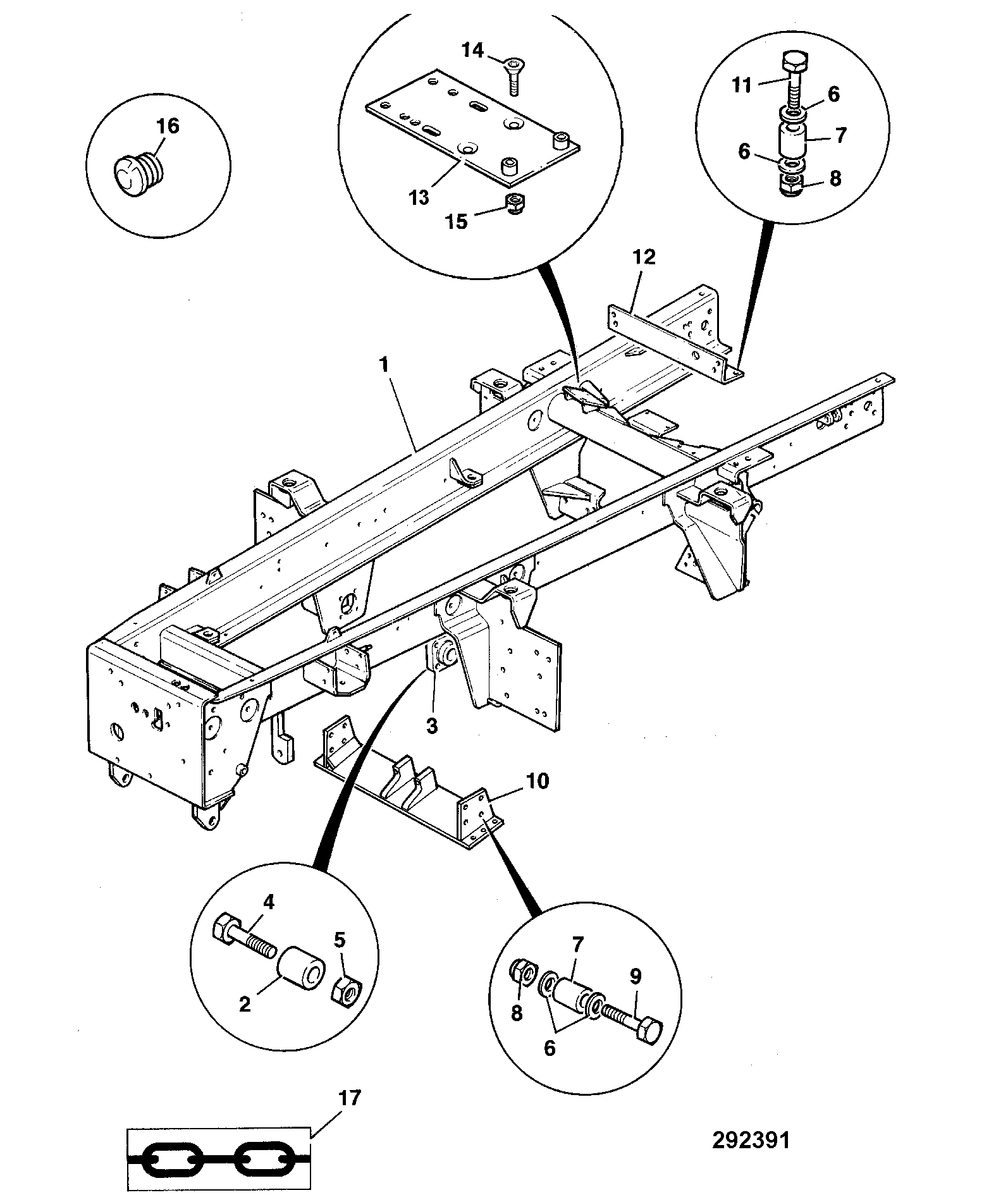

DIAG-B1-1-1-393551 B1-1-1 CHASSIS & FITTINGS
View Diagram -
DIAG-B1-2-2-393551 B1-2-2 TANK, HYDRAULIC
View Diagram -

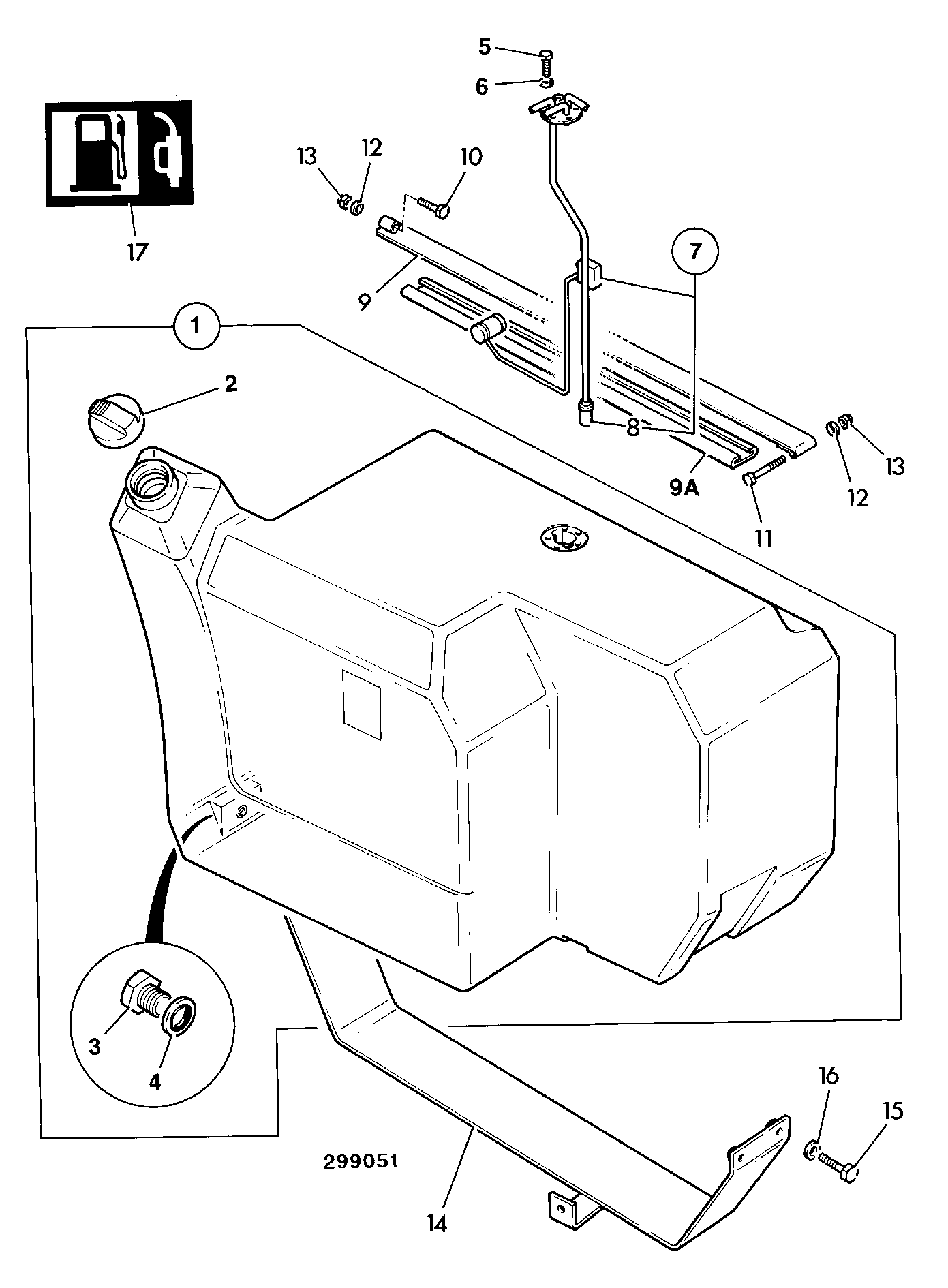

DIAG-B1-3-1-393551 B1-3-1 TANK, DIESEL FUEL
View Diagram
