Scroll to zoom Click a part # to view details

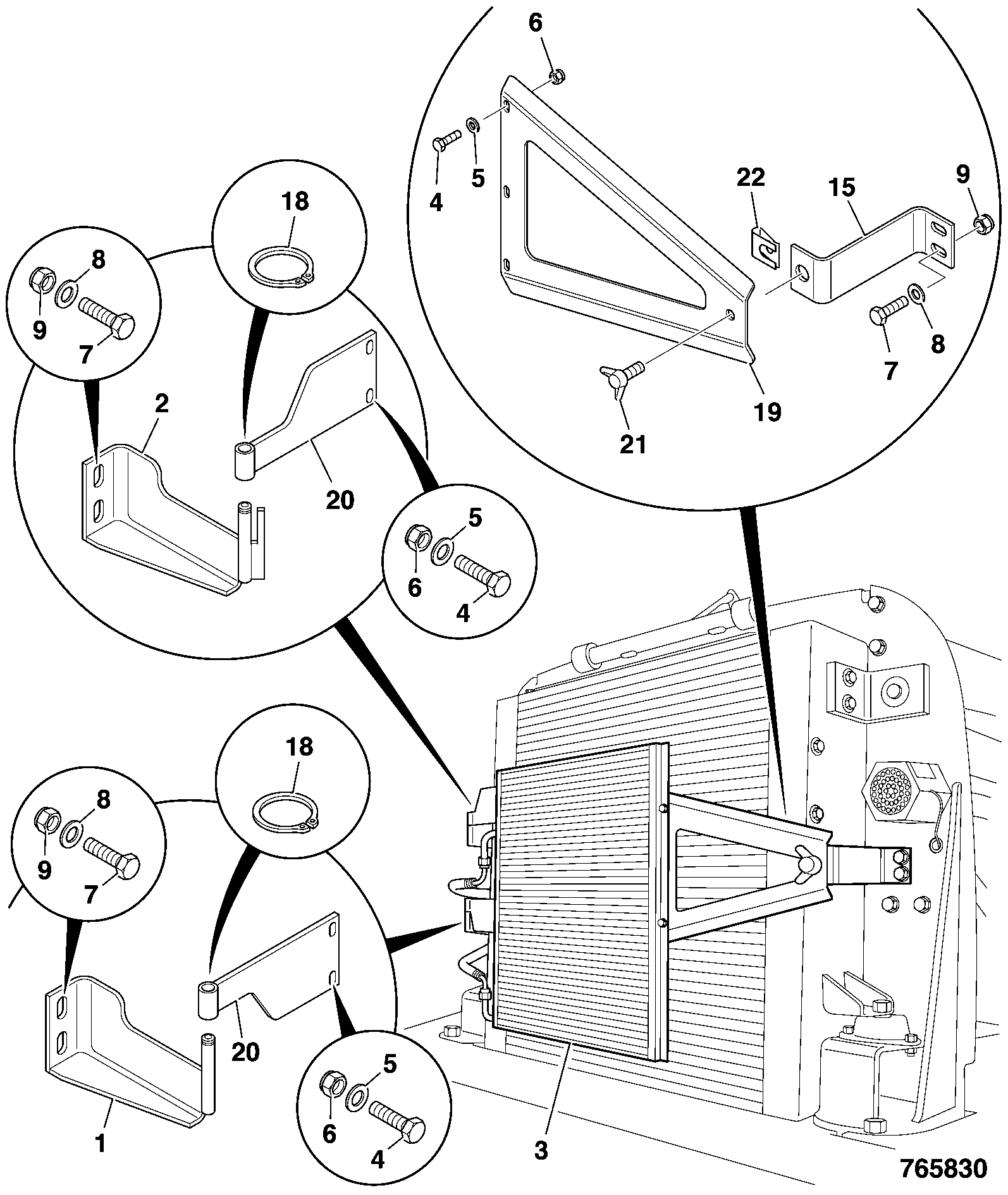

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CLIP.LOCKABLE.ENG.COVER 162/00645 | 1 | $198.72 | ||||
| 3 | CONDENSER 30/926331 | 1 | $1,093.84 | |||
| 4 | HEX.BOLT M6x60 LG 1315/3214D | 1 | $1.05 | |||
| 5 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 6 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 7 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 16 | ANTILUCE FASTENER 259/80601 | 1 | $59.00 | |||
| 17 | BEARING OILITE 265/01843 | 1 | $30.26 | |||
| 18 | Circlip E Series (P545) 821/00492 400/10478 | 1 | $0.20 | |||
| 19 | CLIP (P493) 821/00328 | 1 | $8.20 | |||
| 20 | RETENTION FASTENER (P493) 821/00223 | 1 | $4.56 | |||
| 21 | SPACER 264/11404 | 1 | $13.98 | |||
| 22 | SCREW 826/00316 | 1 | $0.18 | |||
| 23 | NUT 2BA STD SELF LOCK 1358/0203Z | 1 | $7.92 | |||
| 24 | WASHER 2BA 1414/0011Z | 1 | $0.09 | |||
| 25 | 2BAX1/2 SCREW 826/00450 | 1 | $0.18 | |||
| 26 | STRAP 140/00857 | 1 | $61.13 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-B1-19-1-403015 B1-19-1 AIR CONDITIONING CONDENSER
View Diagram -
DIAG-B1-19-3-403015 B1-19-3 AIR CONDITIONING CONDENSER
View Diagram -
DIAG-B1-18-1-403015 B1-18-1 SOUNDPROOFING ENGINE COVER
View Diagram
