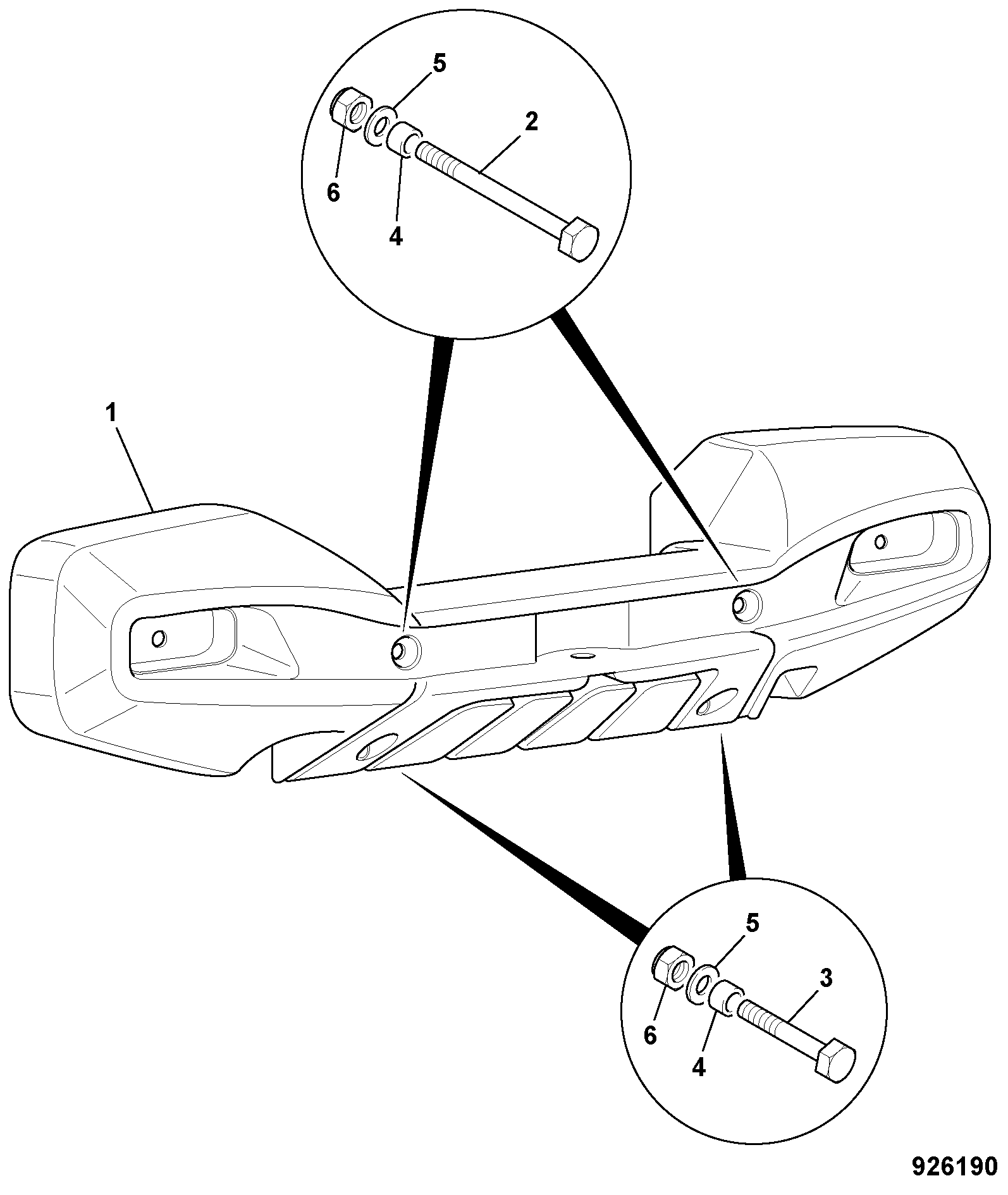

B1-17-1 COUNTERWEIGHT ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	SPACER 38 X 50LG 332/U1399	1	AVAILABLE TO ORDER	$55.35	Quantity
4	BLANKING PLUG 333/T9529	1	AVAILABLE TO ORDER	$0.62	Quantity
4	Plug Yellow M30 835/00170	1	AVAILABLE TO ORDER	$14.41	Quantity

Showing 1 to 3 of 3 parts

DIAG-B1-16-30-404996 B1-16-30 GUARD LOADER END RAMS AND RESET SENSORS, STEEL MILL SALES SPECIAL
View Diagram
DIAG-B1-17-10-404996 B1-17-10 COUNTERWEIGHT ABI
View Diagram

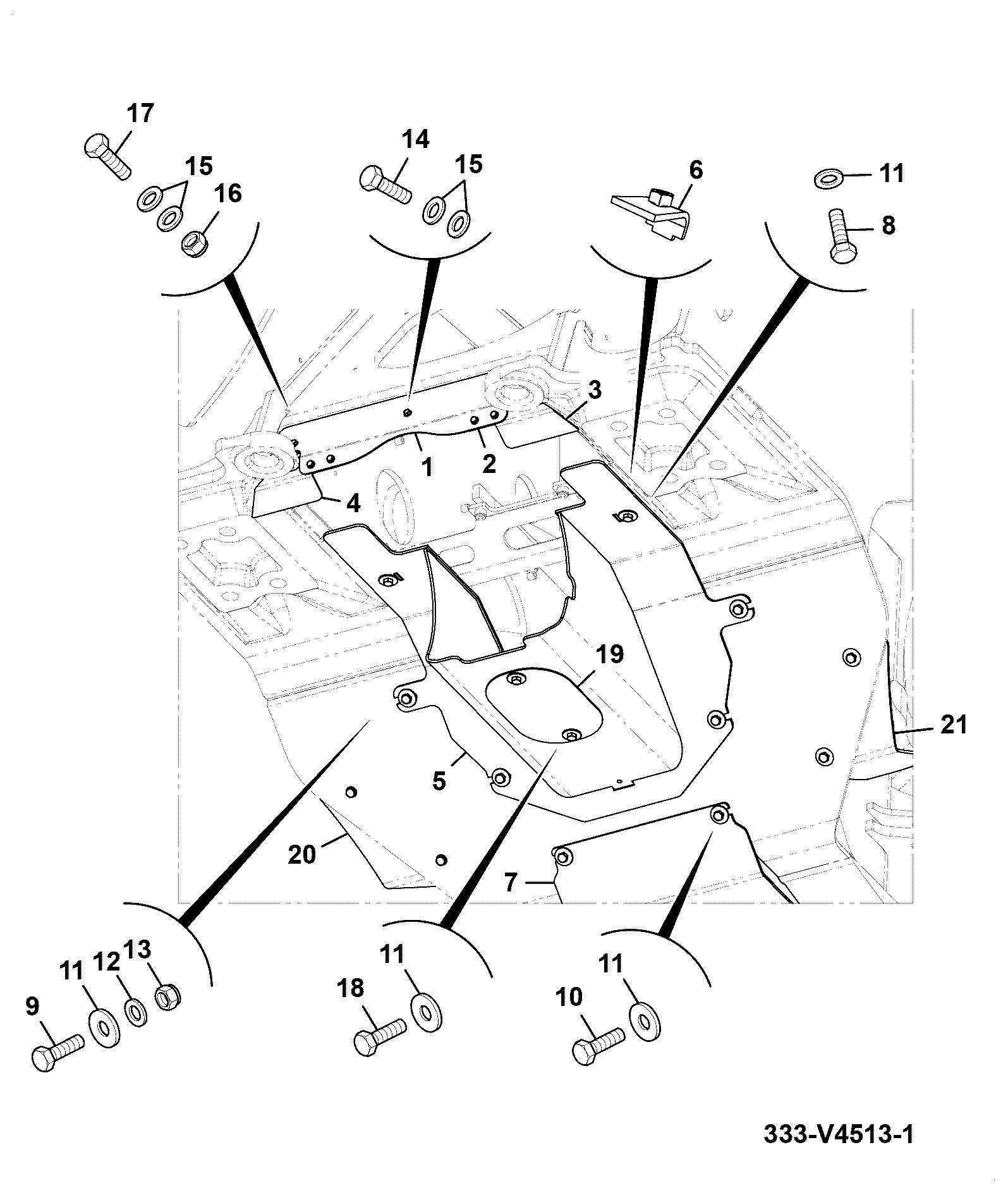

DIAG-B1-16-20-404996 B1-16-20 GUARD BELLY PLATE FRONT CHASSIS
