Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | GUARD LEFT HAND LOWER 331/15614 | 1 | $331.64 | |||
| 3 | GUARD RIGHT HAND LOWER 331/15615 | 1 | $351.33 | |||
| 4 | Guard L.H. upper l 331/15616 | 1 | $461.43 | |||
| 8 | GUARD L.H. REAR LI 331/15638 | 1 | $1,432.78 | |||
| 9 | GUARD R.H. REAR LI 331/15639 | 1 | $1,102.28 | |||
| 10 | BOLT M24 X 260 1316/4033 | 1 | $80.27 | |||
| 11 | NUT 1371/0901Z | 1 | $4.83 | |||
| 12 | WASHER 823/00411 | 1 | $9.78 | |||
| 13 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 14 | BOLT M10x110 1315/3421Z | 1 | $14.37 | |||
| 15 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

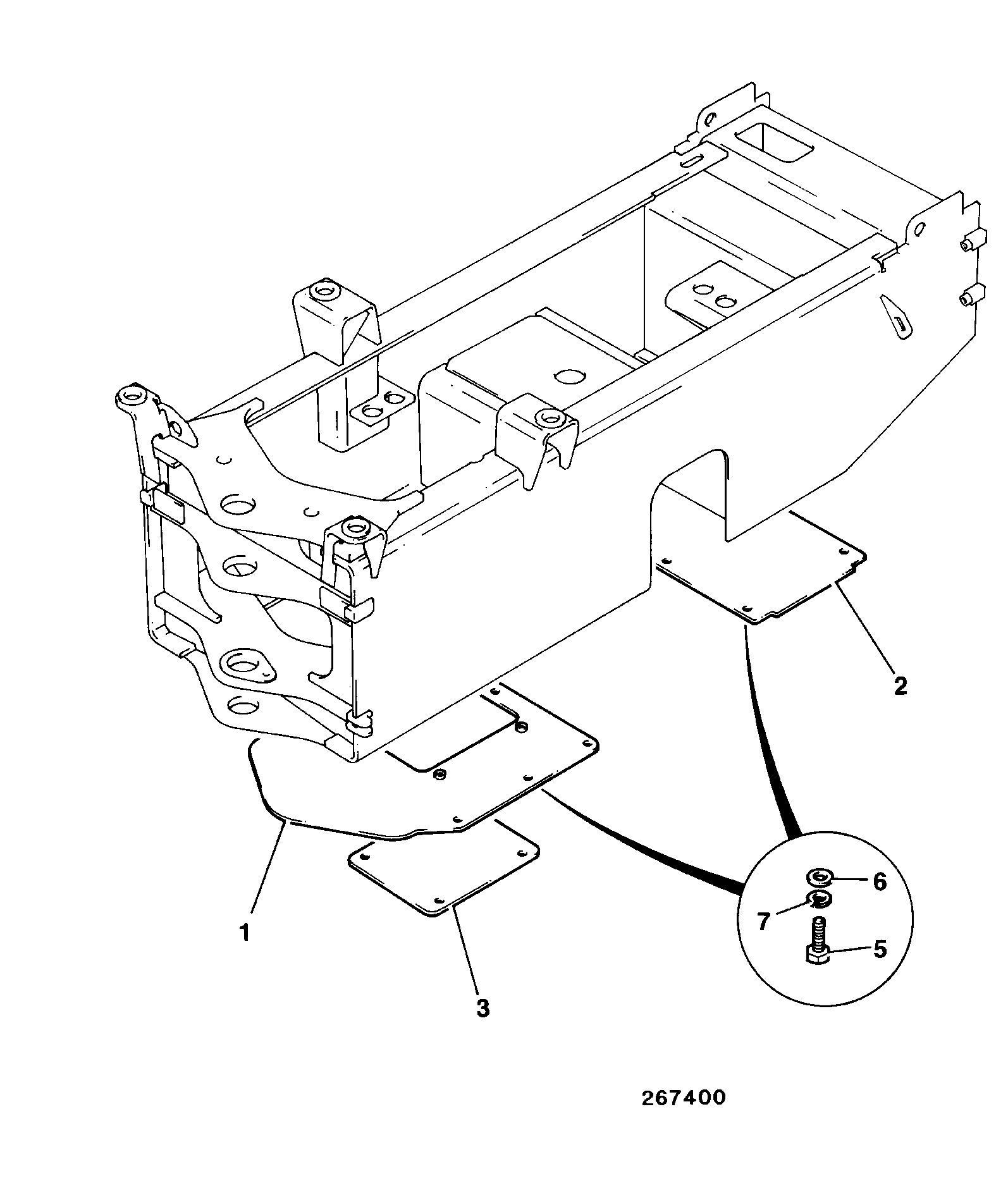

DIAG-B1-16-1-404930-15829949 B1-16-1 GUARD, BELLY OPTIONAL
View Diagram -

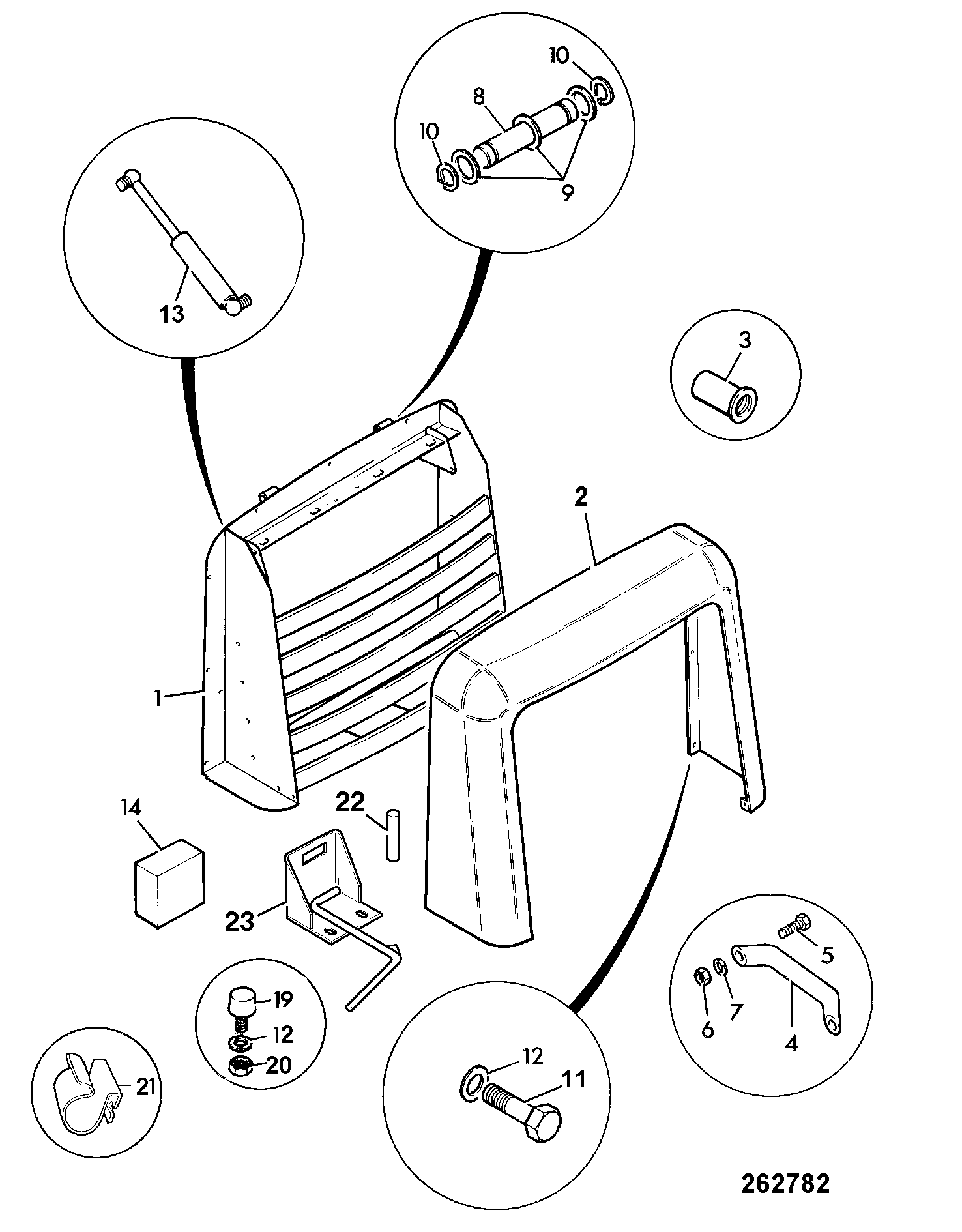

DIAG-B1-20-1-404930-15829953 B1-20-1 REAR GRILLE
View Diagram -
DIAG-B1-21-1-404930 B1-21-1 GUARDS REAR LIGHTS
View Diagram
