Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | CONDENSER 30/916900 | 1 | $879.81 | |||
| 3 | HINGE FRAME 268/00246 | 1 | $180.12 | |||
| 4 | BEARING OILITE 265/01843 | 1 | $30.26 | |||
| 5 | CATCH 265/02467 | 1 | $54.18 | |||
| 8 | RETAINER 478/00288 | 1 | $26.12 | |||
| 9 | PLUG 835/00172 | 1 | $0.30 | |||
| 10 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 11 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 13 | BOLT M8x60 1315/3314Z | 1 | $2.86 | |||
| 14 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | PIPE CLAMP 821/00312 | 1 | $5.82 | |||
| 20 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 21 | BUFFER (Grommet) ( Reinstate ) 265/00589 | 1 | $32.09 | |||
| 21 | RUBBER BUFFER (P461) 828/00407 | 1 | $42.79 | |||
| 22 | NUT M_5 STD PLAIN 1370/0001Z | 1 | $0.15 | |||
| 23 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 24 | (P) CIRCLIP 821/00318 | 1 | $0.68 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

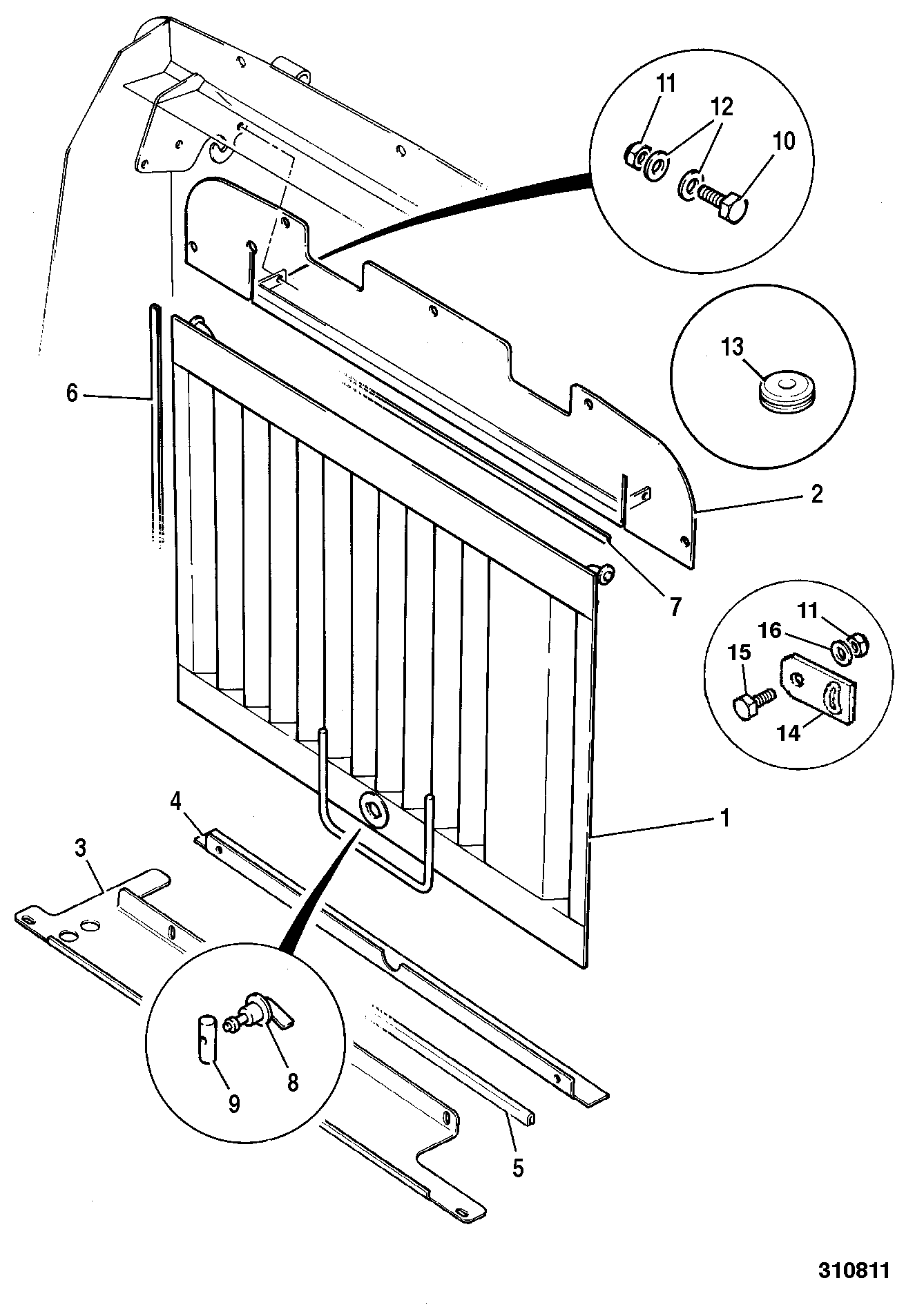

DIAG-B1-15-8-404576 B1-15-8 AIR INTAKE SCREEN
View Diagram -

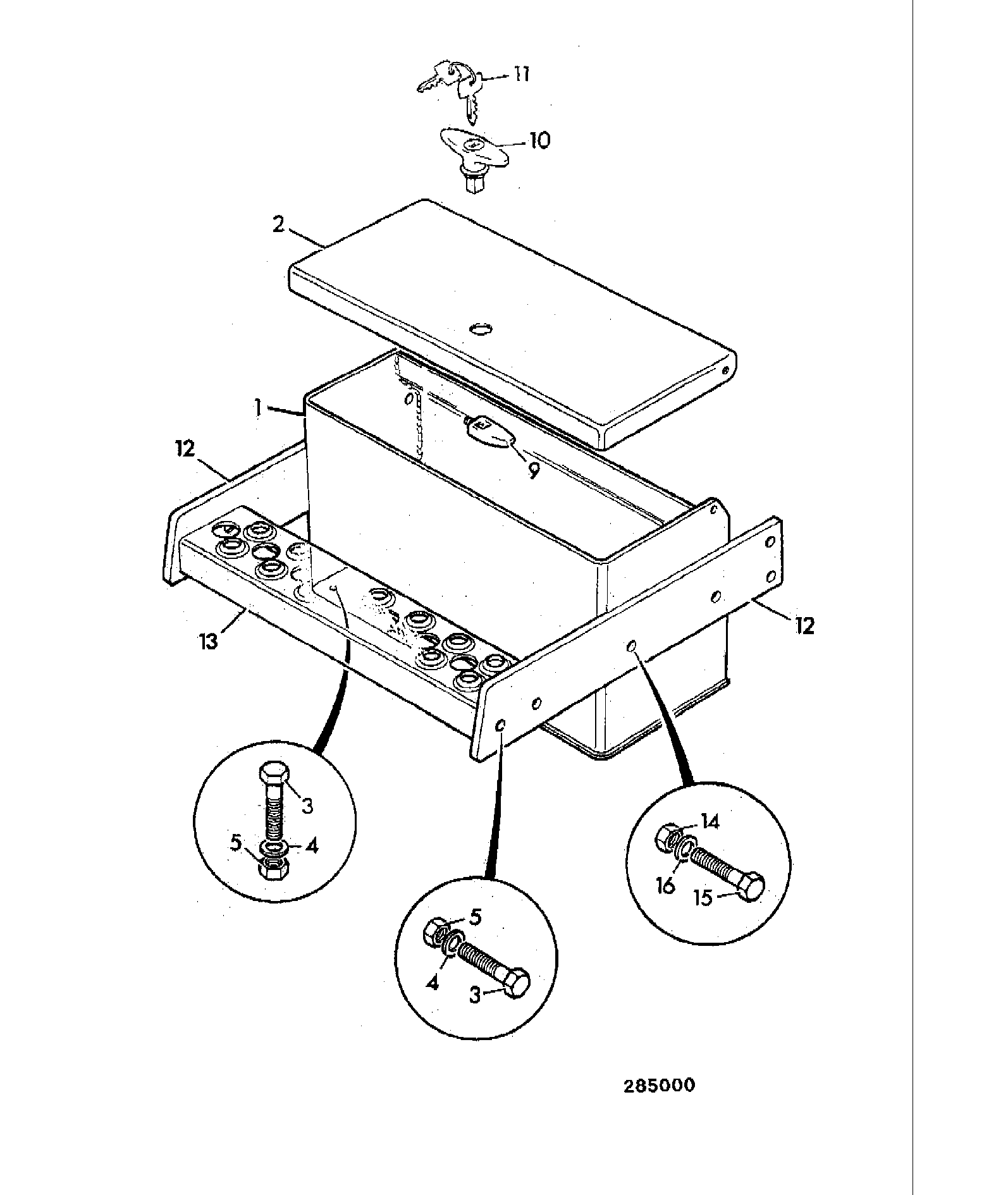

DIAG-B1-14-3-404576 B1-14-3 STEP/TOOLBOX
