Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | INTAKE SCREEN 268/00247 | 1 | $1,679.49 | |||
| 2 | INTAKE SCREEN 268/00248 | 1 | $191.19 | |||
| 3 | SCREEN INTAKE BOTT 265/02596 | 1 | $111.75 | |||
| 5 | BRACKET SCREEN SUP 268/35035 | 1 | $288.16 | |||
| 6 | SEALING RUBBER (50m Roll) 926/12700 | 1 | $29.80 | |||
| 7 | EDGE SEAL LEAF 30M (ROLL) 926/16100 | 1 | $396.24 | |||
| 8 | STRIP EDGE 30M (ROLL) 926/04800 | 1 | $161.39 | |||
| 10 | RETAINER 478/00288 | 1 | $26.12 | |||
| 11 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 12 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 13 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 14 | BUMP STOP 122/22701 122/22701A | 1 | $9.73 | |||
| 15 | NUT 5/16UNF STD SELF LOCK 1340/0103Z | 1 | $2.54 | |||
| 16 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

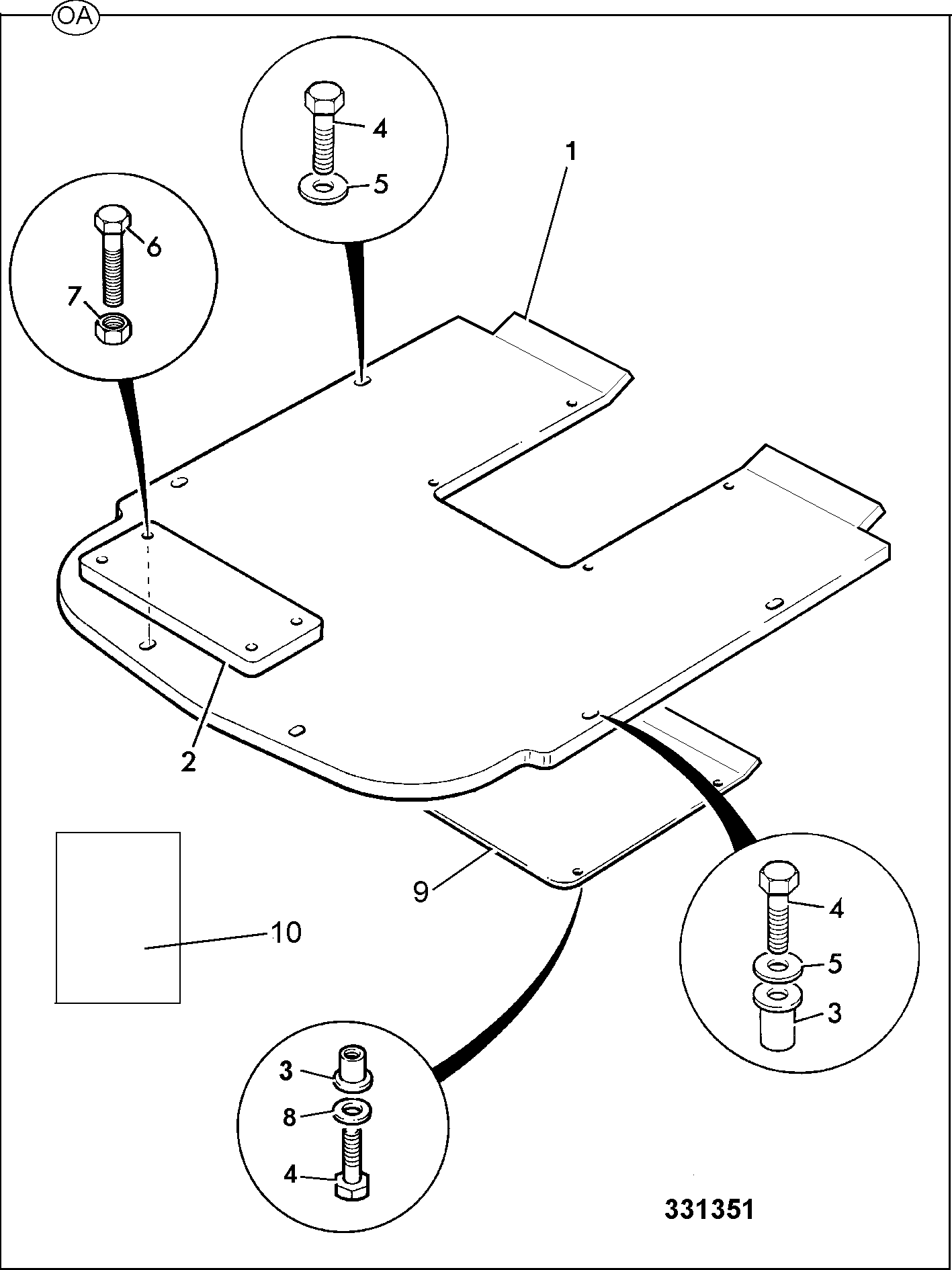

DIAG-B1-16-1-404552 B1-16-1 GUARD, BELLY OPTIONAL
View Diagram -

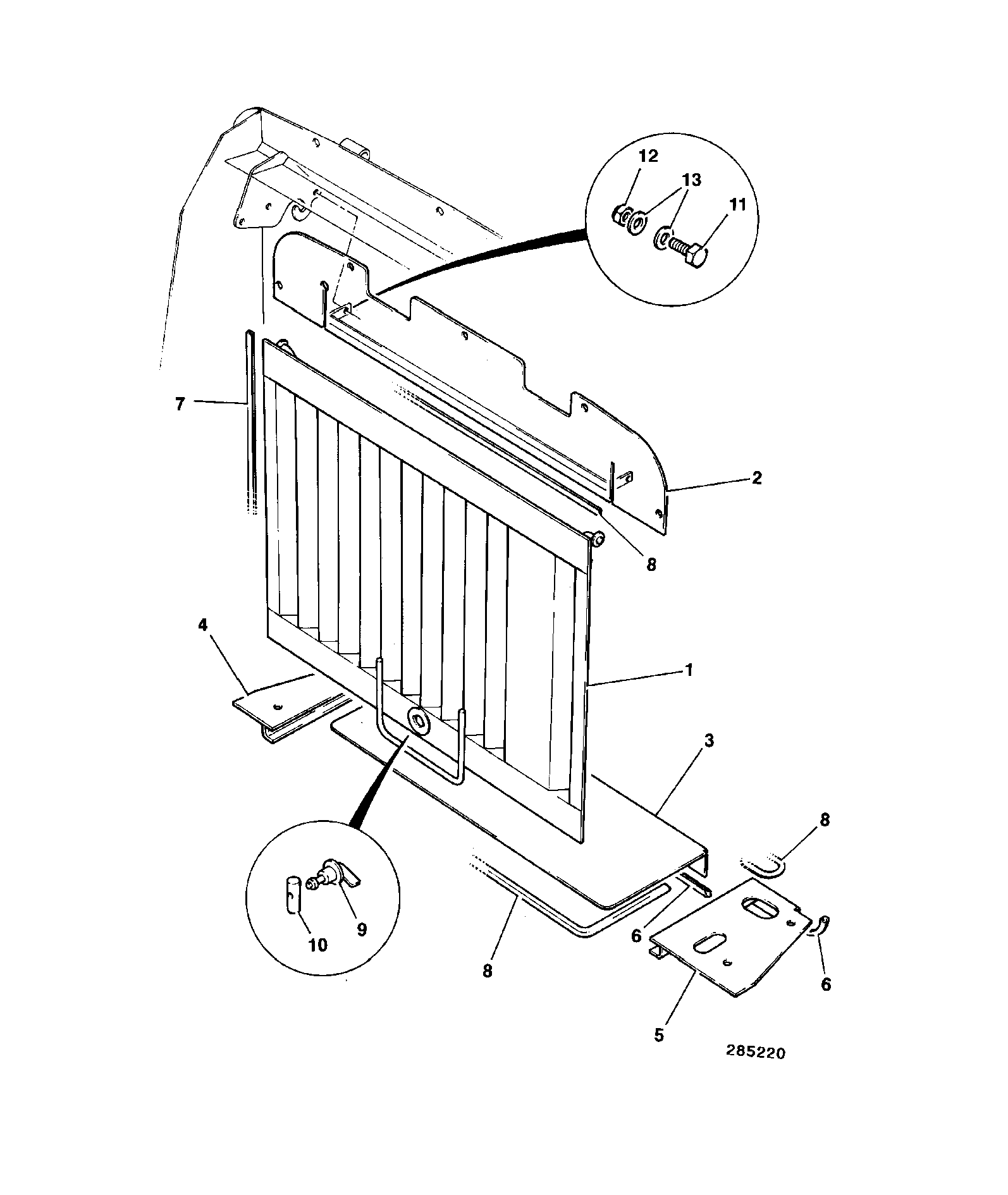

DIAG-B1-15-1-404552 B1-15-1 AIR INTAKE SCREEN
View Diagram -

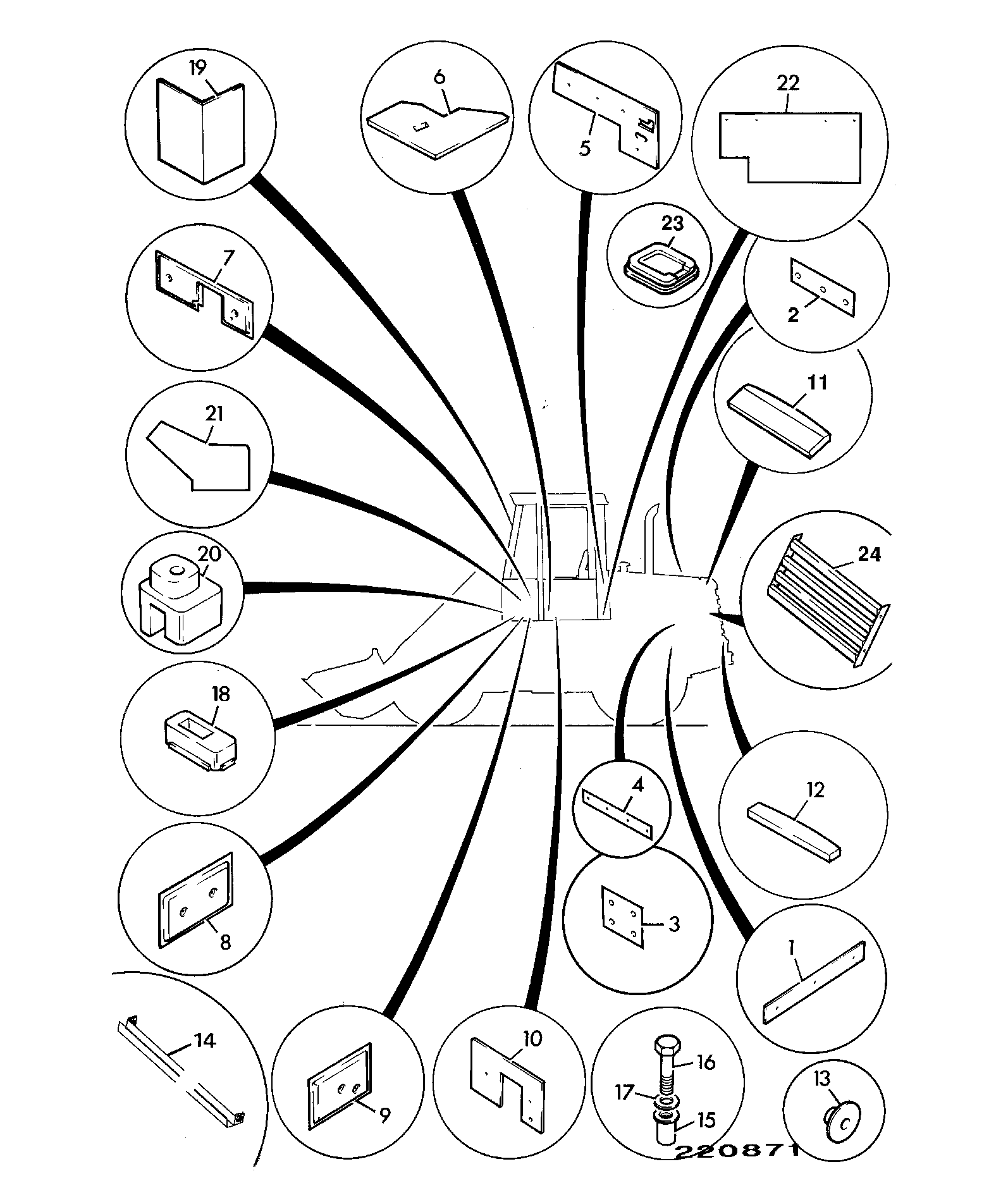

DIAG-B1-17-1-404552-15594746 B1-17-1 SOUNDPROOFING 'Q' BUILD
View Diagram
