Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ARM STABILISER L.H 161/00622 | 1 | $4,591.11 | |||
| 1 | ARM STABILIZER R.H 161/00320 | 1 | $4,591.11 | |||
| 2 | FOOT STABILISER 161/00321 161/01156 | 1 | $1,241.92 | |||
| 4 | P/PIN 49.95/49.85* 285 403/H0051 811/50457 | 1 | $304.04 | |||
| 5 | P/PIN 60.00/59.90 * 305 811/50455 | 1 | $141.95 | |||
| 6 | BOLT M12x110 1315/3521Z | 1 | $7.62 | |||
| 7 | BOLT M12x100 1315/3520Z | 1 | $10.52 | |||
| 9 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 10 | BONNET & LIGHT STOP 828/00405 | 1 | $10.72 | |||
| 11 | P/PIN 49.92/49.82 * 260 403/H0050 811/50456 | 1 | $178.64 | |||
| 12 | P/PIN 44.45/44.35 * 243 348/00021 156/30900 811/70094 | 1 | $129.06 | |||
| 13 | SHOULDER RING 1 3/4 823/00334 | 1 | $2.94 | |||
| 14 | SHIM 1.4mm 819/00049 | 1 | $3.49 | |||
| 15 | NUT 1/2UNF STD SELF LOCK 1340/0403Z | 1 | $3.41 | |||
| 16 | WASHER 823/00006 | 1 | $22.37 | |||
| 23 | Screw Set Screw M6 1318/0203Z | 1 | $3.70 | |||
| 24 | WASHER 823/00030 | 1 | $3.85 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

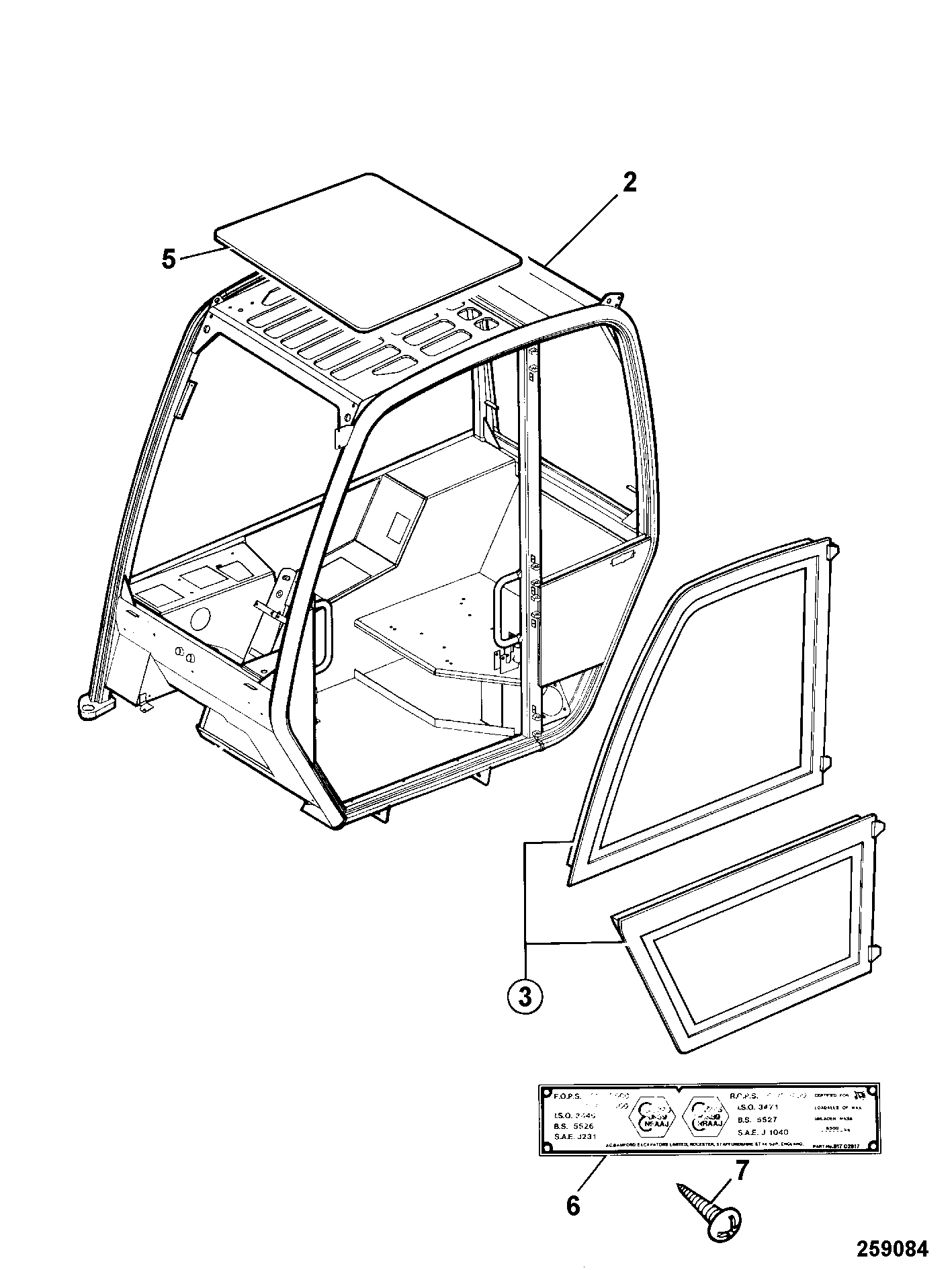

DIAG-B2-1-1-401699 B2-1-1 CAB
View Diagram -

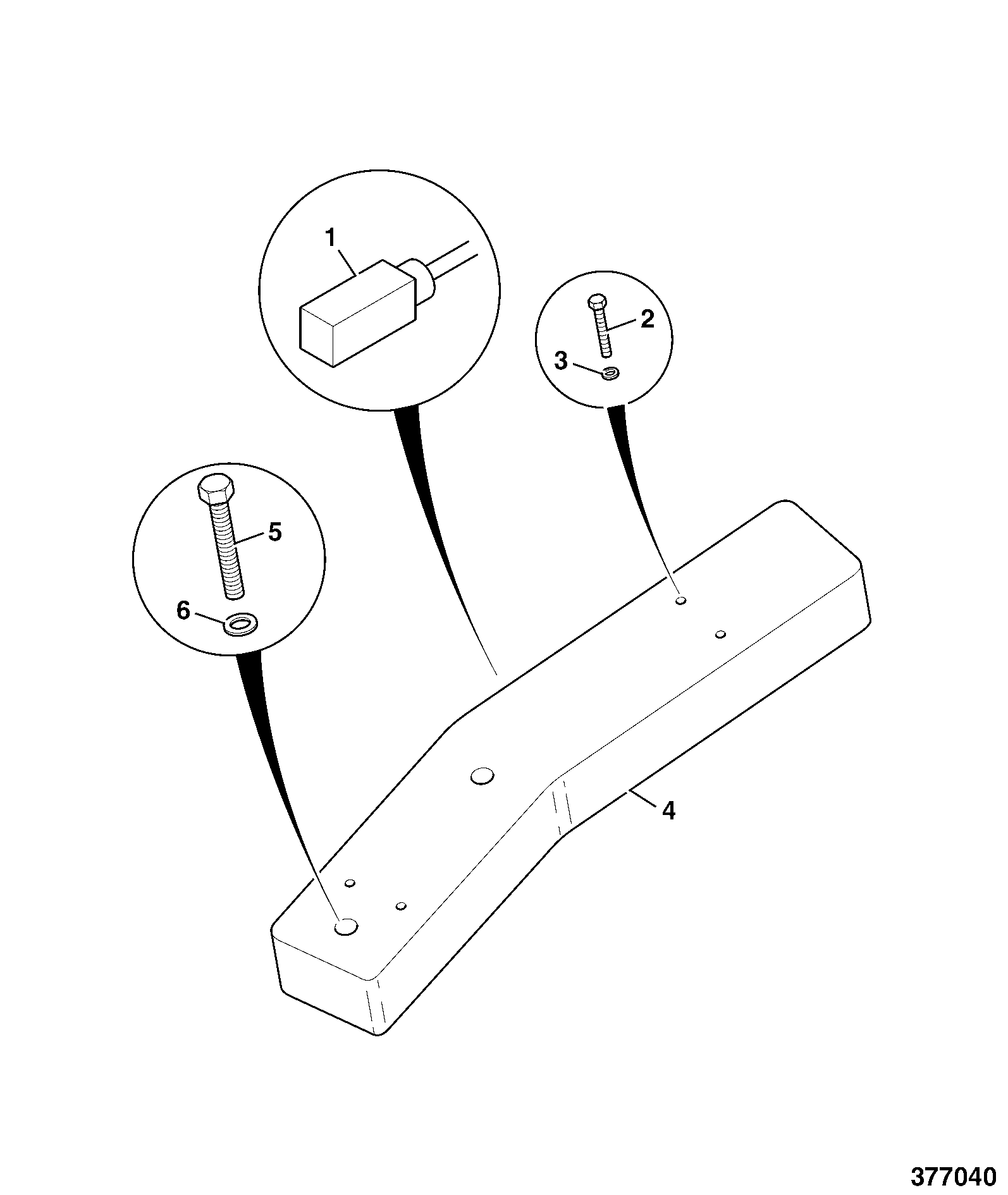

DIAG-B1-11-3-401699 B1-11-3 STABILIZER ISOLATION PROXIMITY SWITCH
