Scroll to zoom Click a part # to view details

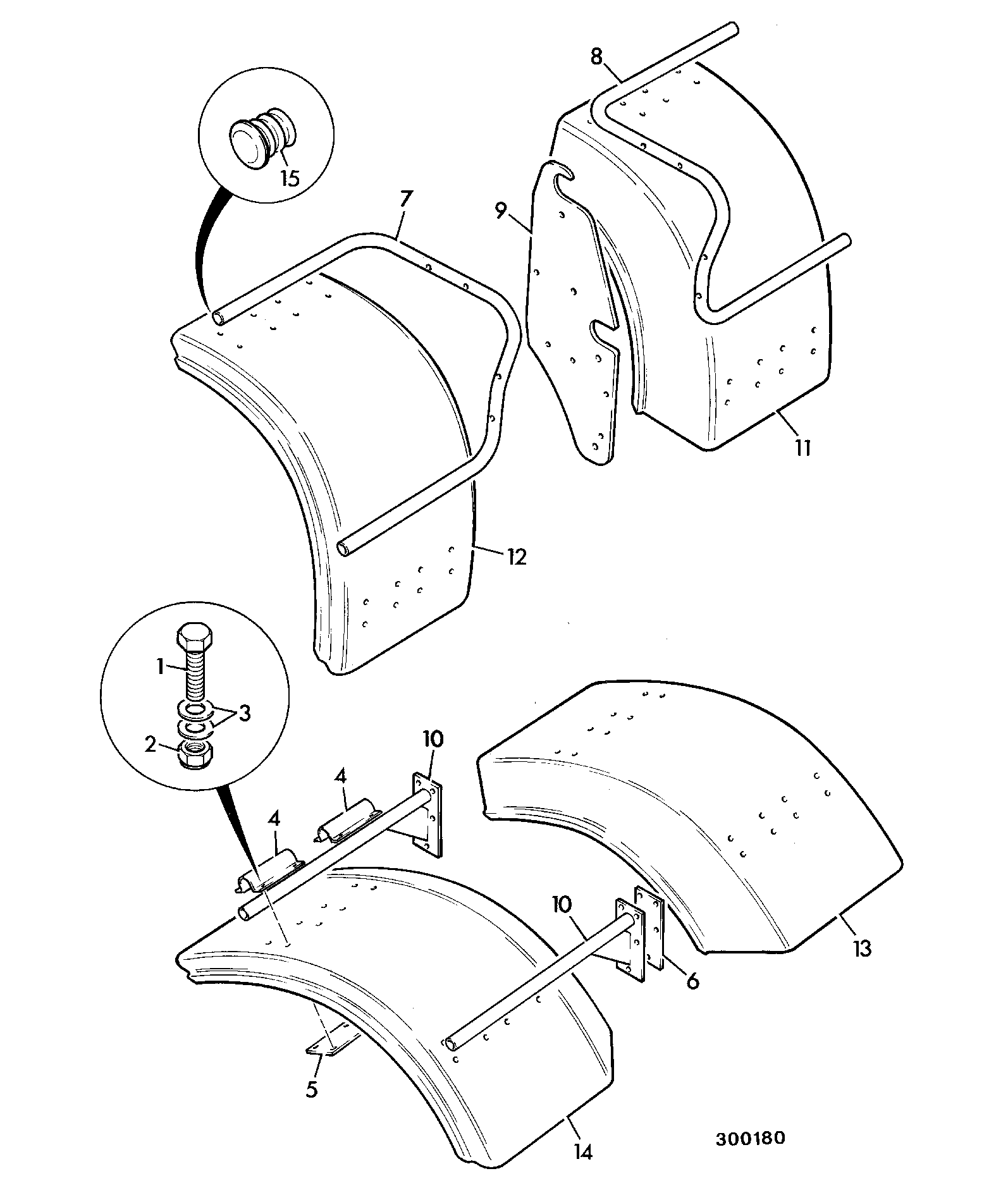

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | ||||
| SEAL Metres 4x15mtrs =60MTRS 926/06300 | 1 | $0.47 | ||||
| 1 | TUBE -MOUNTING 265/00449 | 1 | $653.71 | |||
| 2 | LH SHORT FRONT FENDER 414 331/58238 | 1 | $651.08 | |||
| 2 | RH SHORT FRONT FENDER 414 331/58240 | 1 | $421.98 | |||
| 5 | BACK PLT(FENDER MTG.) 265/00533 | 1 | $46.11 | |||
| 6 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 9 | BOLT M10x65 1315/3415Z | 1 | $5.56 | |||
| 10 | WA REAR FENDER MTG 416 268/10083 333/T4124 | 1 | $1,103.70 | |||
| 11 | REAR FENDER 416 331/58249 | 1 | $889.42 | |||
| 12 | BRACKET 268/10032 | 1 | $747.90 | |||
| 13 | PLUG.PLASTIC.BLACK 835/10035 | 1 | $2.37 | |||
| 14 | U-BOLT M20 826/01469 | 1 | $72.72 | |||
| 15 | NUT M20 STD SELF LOCK 1370/0703Z | 1 | $12.95 | |||
| 16 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $1.94 | |||
| 17 | PLATE -CLAMP 265/00527 | 1 | $42.10 | |||
| 19 | SADDLE PLT(FENDER MTG) 265/00532 | 1 | $101.48 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $0.26 | |||
| 21 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 22 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 23 | FENDER TREADPLATE 265/02455 | 1 | $733.21 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 27 | WASHER - NYLON 823/00198 | 1 | $0.47 | |||
| 28 | WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | |||
| 29 | CAP SCREW M6x20 SPECIAL 826/00902 | 1 | $1.25 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-B1-12-1-404555 B1-12-1 FENDERS FRONT & REAR WIDE TYRE OPTION
View Diagram -
DIAG-B1-8-1-404555 B1-8-1 MOUNTINGS REAR LIGHTS
View Diagram -

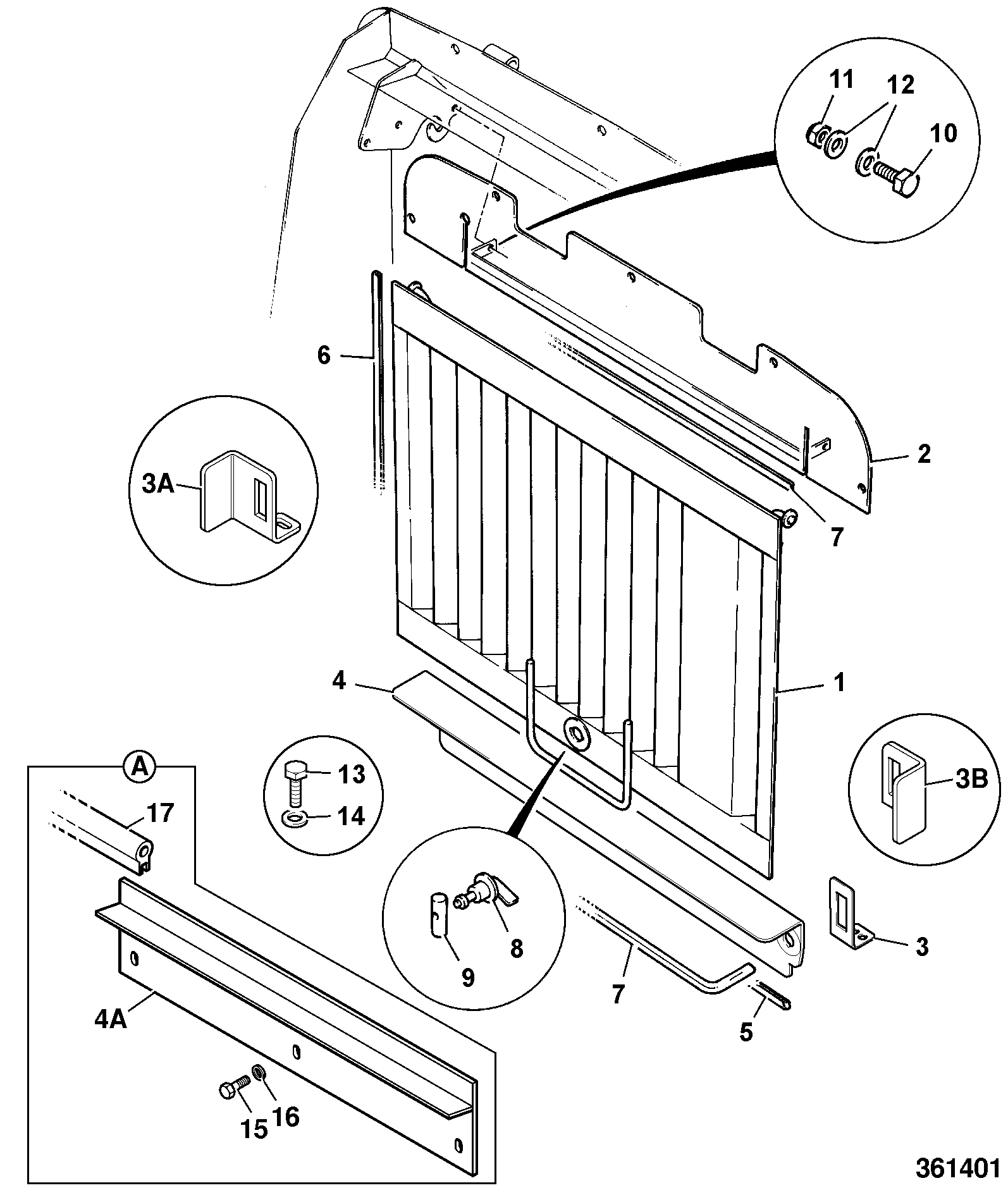

DIAG-B1-15-1-404555 B1-15-1 AIR INTAKE SCREEN
View Diagram
