Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI BONNET 332/V5713 400/E5231 | 1 | $3,690.20 | |||
| 2 | (P) (W) (P) (W) (P) M8 LUG NUT (P143) 826/11422 | 1 | $2.28 | |||
| 3 | WA STRIKER 332/V5095 | 1 | $29.11 | |||
| 4 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 5 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 7 | WA HINGE PLATE 332/V5430 | 1 | $19.40 | |||

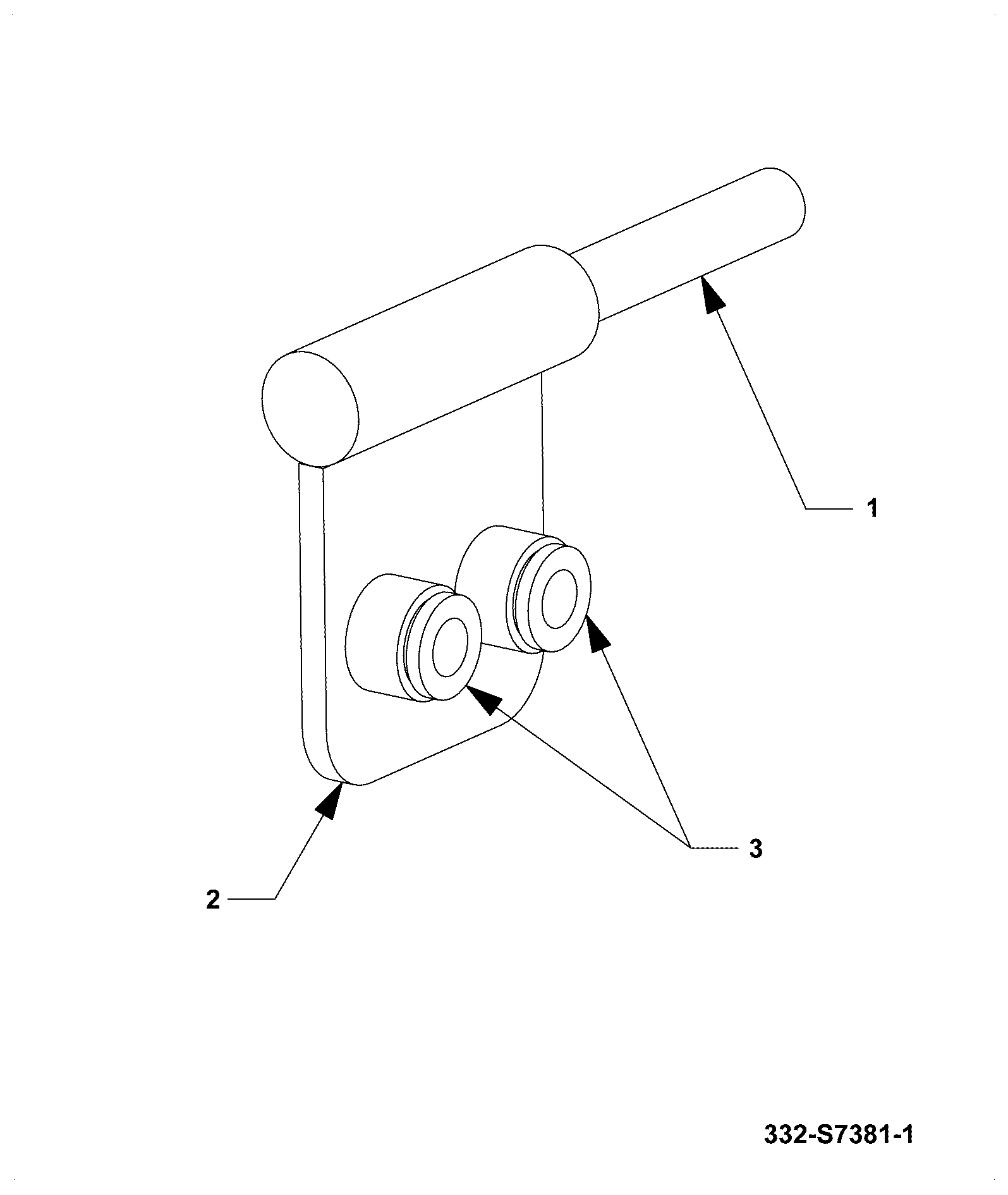

| 8 | HINGE BRKT 332/S7381 | 1 | $66.45 | |||
| 9 | RH HINGE BRKT 332/S7401 | 1 | $43.80 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 11 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
Showing 1 to 10 of 10 parts
