Scroll to zoom Click a part # to view details

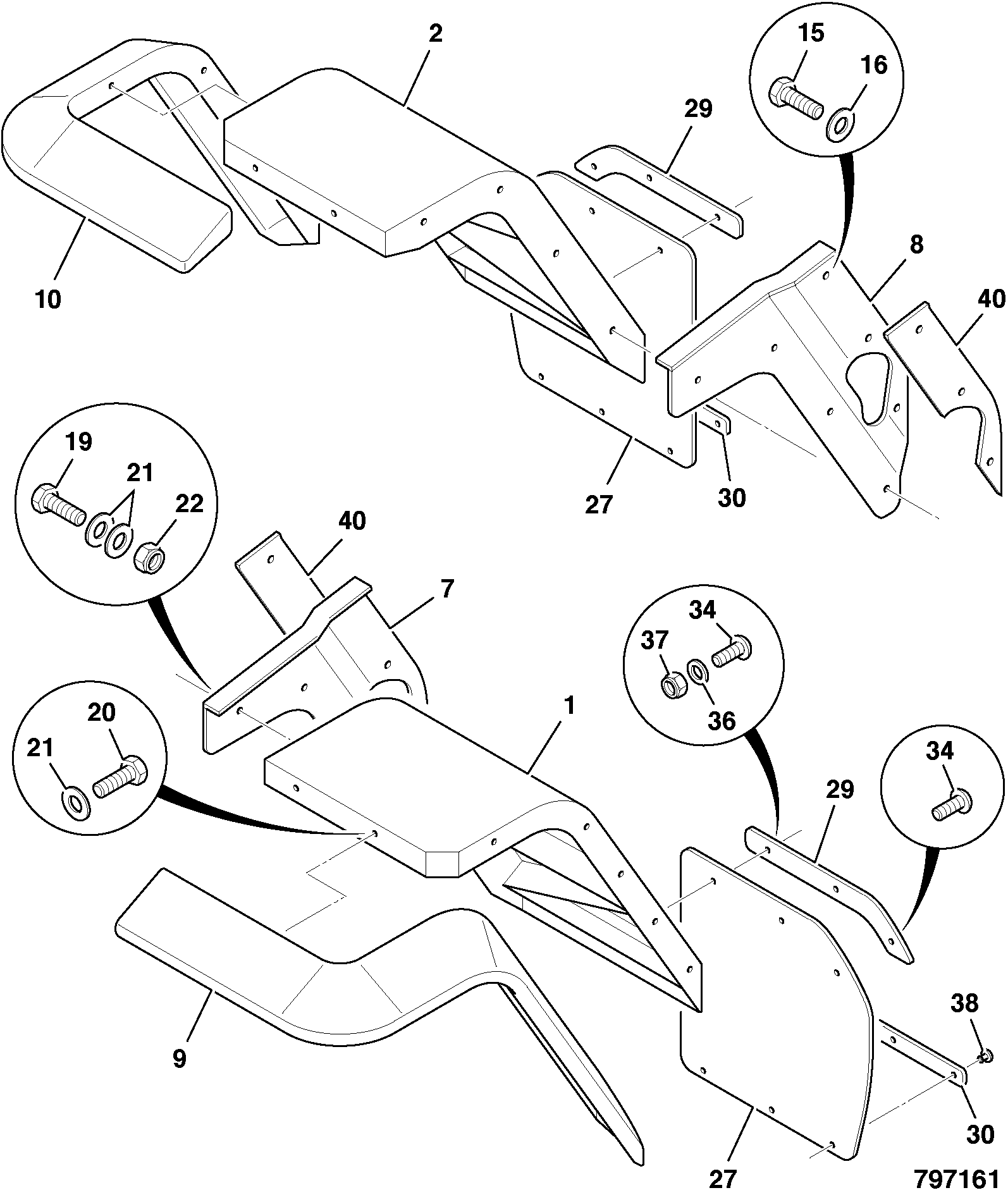

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA LH FRONT FENDER 332/P6444 | 1 | $1,759.20 | |||
| 2 | WA RH FRONT FENDER 332/P6461 | 1 | $1,829.54 | |||
| 7 | WA LH FENDER MOUNTING 332/P6457 | 1 | $347.46 | |||
| 8 | WA RH FENDER MOUNTING 332/P6466 | 1 | $472.97 | |||
| 8 | WA RH FENDER MOUNTING 334/P1829 | 1 | $471.19 | |||
| 9 | FENDER TRIM-FRONT LH 346/00177 | 1 | $594.12 | |||
| 10 | FENDER TRIM-FRONT RH 346/00178 | 1 | $213.37 | |||
| 15 | SET-SCREW M16 L-_40mm 1315/0710D | 1 | $3.11 | |||
| 16 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 20 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 21 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 22 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 27 | MUDFLAP, FRONT 331/47606 | 1 | $281.84 | |||
| 29 | FRONT MUDFLAP STRIP 331/47589 | 1 | $80.56 | |||
| 30 | PLATE 265/02961 | 1 | $92.24 | |||
| 34 | M8x30 BUTTON HEAD SCREW 826/11357 | 1 | $18.30 | |||
| 36 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 37 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 38 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 40 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 41 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-B1-10-6-404781 B1-10-6 FENDERS FRONT 20.5 R25 & 620 TYRES
View Diagram -
DIAG-U4-6-2-404780 U4-6-2 COOLER,AIR CHARGE HOSE AND PIPEWORK
View Diagram -
DIAG-U4-3-3-404780 U4-3-3 COOLER,INSTALLATION
View Diagram
