| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| PIPE CLIP 826/11374 | 1 | $46.20 | ||||
| POP-RIVET 826/01547 | 1 | $1.20 | ||||
| Safety Tread 331/55352 | 1 | $27.60 | ||||
| 3 | WA RH SKIRT 8040/45/55 332/P6342 | 1 | $1,129.66 | |||
| 4 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 5 | WA LH SKIRT: 8042Z & 8047 335/06248 | 1 | $914.70 | |||
| 6 | SWING RAM 85X50 DONGYANG 903/20747 | 1 | $1,439.19 | |||
| 7 | PIVOT PIN - 50 X 164 811/90451 | 1 | $129.51 | |||
| 8 | PLATE KEEP 231/20002 | 1 | $20.13 | |||
| 9 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | ELBOW ADAPTOR 816/00420 | 1 | $6.23 | |||
| 12 | GREASE PIPE ADPT. 200/04604 | 1 | $14.75 | |||
| 13 | HOSE 1/8 X 1050 ST-ST JLV0663 | 1 | $39.87 | |||
| 15 | SLEW RING 234/11000 334/L6277 | 1 | $3,778.29 | |||
| 16 | Bolt 1316/3717D | 1 | $6.79 | |||
| 16 | BOLT M16x80 1316/3718D | 1 | $16.72 | |||
| 17 | M16 Hardened Washer JHP0043 | 1 | $2.17 | |||
| 19 | Sedimenter Mounting WA 335/10822 | 1 | $322.84 | |||
| 20 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 21 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | SLEW PAN COVER PLATE 804-8055 331/54006 332/V5992 | 1 | $130.44 | |||
| 23 | SUMP GUARD 804ZTS 331/54022 332/V5990 | 1 | $143.36 | |||
| 24 | (W) (P) DISC HORN -LOW 12V DIODE 704/37300 335/B4669 | 1 | $38.91 | |||
| 25 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 26 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 27 | BUSH -KINGPOST 831/10121 | 1 | $304.31 | |||
| 28 | 8045 ZTS VERTICAL DECAL 817/20236 | 1 | $54.83 | |||
| 29 | 8045ZTS HORIZONTAL DECAL 817/20238 | 1 | $54.49 | |||
| 30 | STEER RAM SHIM 334/V7911 819/00040 | 1 | $6.87 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-

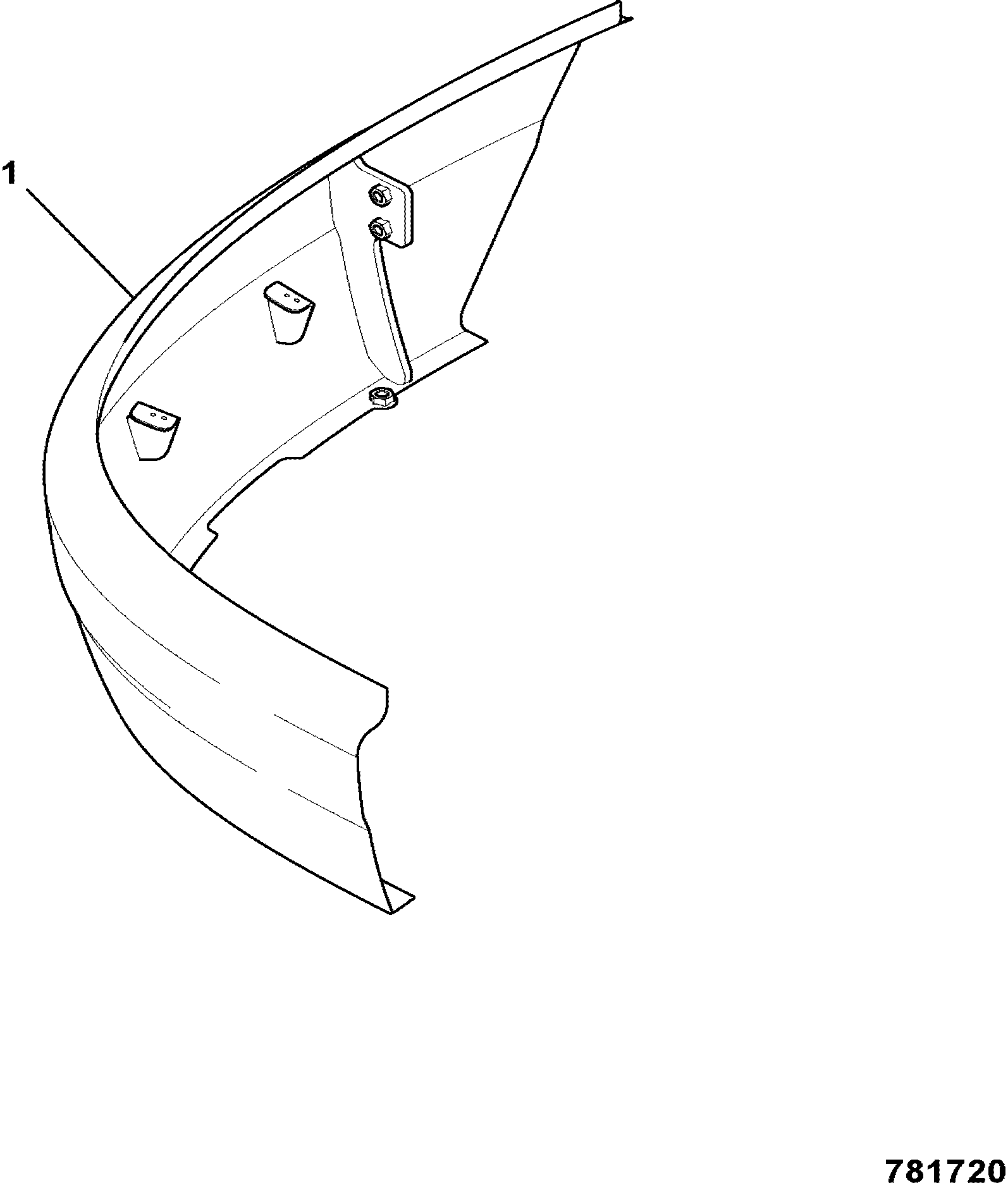

DIAG-B1-4-1-398126-12112109 B1-4-1 SKIRT R/H
View Diagram -
DIAG-A3-2-1-398126-12112087 A3-2-1 QUICKHITCH MECHANICAL
View Diagram -

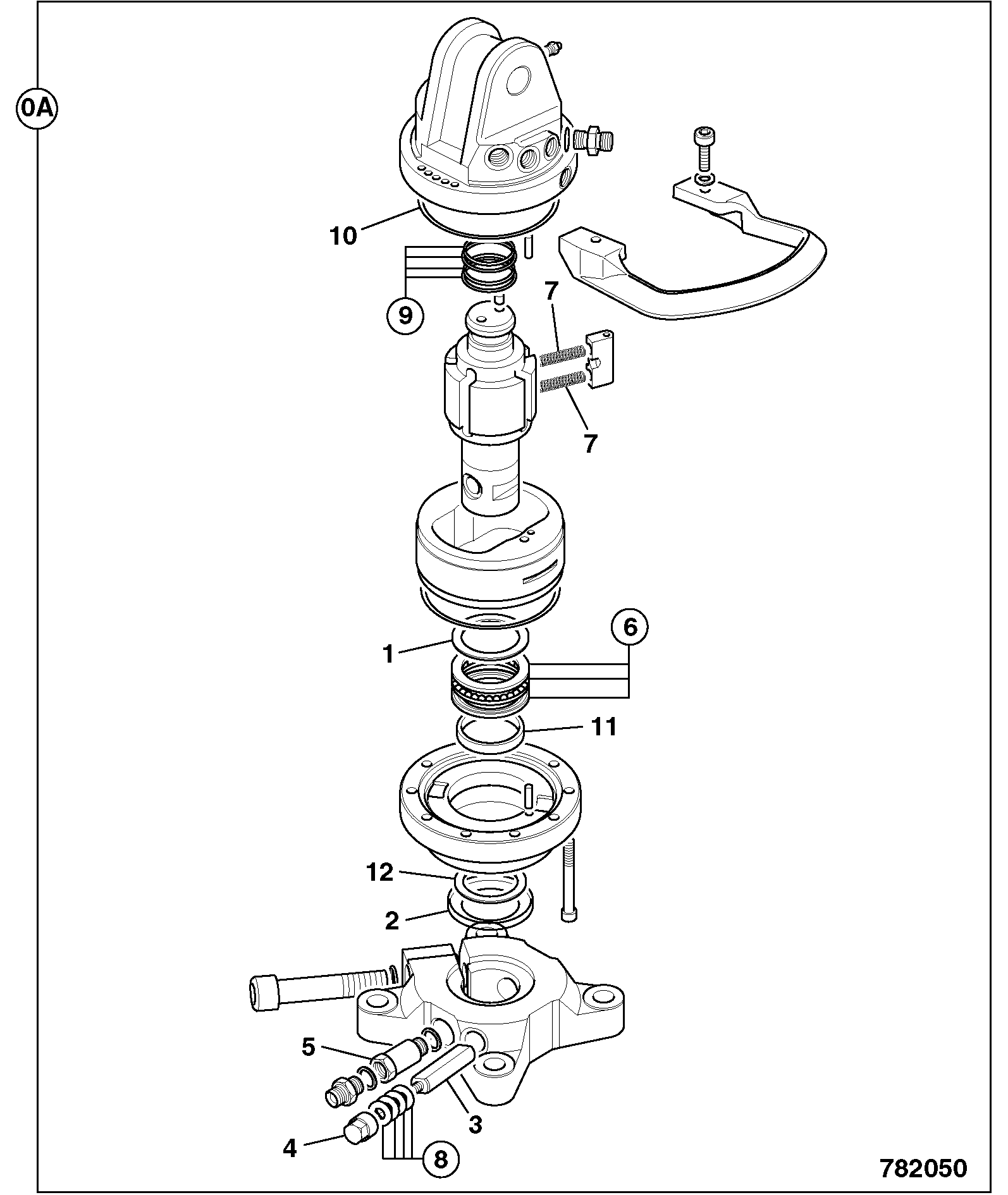

DIAG-A3-1-9-398126 A3-1-9 HYDRAULIC ROTATOR
View Diagram
