Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | ||||
| 3 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 4 | ADAPTOR:BATTERYPLATE 816/60068 | 1 | $78.83 | |||
| 5 | TUBE BUNDY 232/49103 | 1 | $35.50 | |||
| 6 | ADAPTER 231/19000 231/19001 | 1 | $3.88 | |||
| 7 | OLIVE 231/19002 | 1 | $3.79 | |||
| 9 | (P) BOLT M12x60 1316/3514Z | 1 | $17.79 | |||
| 9 | BOLT M14 X 60 1316/3614Z | 1 | $3.88 | |||
| 10 | SPECIAL WASHER 823/00540 | 1 | $10.23 | |||
| 10 | SPECIAL WASHER M12 823/00394 | 1 | $2.96 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | WASHER M10 PLAIN(KANBAN) 332/H9080 1420/0008Z | 1 | $0.20 | |||
| 15 | BOLT M8x120 1315/3322Z | 1 | $4.11 | |||
| 16 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 17 | PLATE PROTECTION 232/34606 | 1 | $293.61 | |||
| 18 | SET SCREW M10X20 1315/0405 | 1 | $0.40 | |||
| 20 | (W) (Pre-P)-M10X30 SELF COLOUR 1315/0408 | 1 | $0.26 | |||
| 21 | SELF LOCK STD. 1370/0303 | 1 | $2.26 | |||
| 26 | (W) RIVET G46/0 | 1 | $0.27 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
B1-1-1 MAINFRAME AND COUNTERWEIGHTS
View Diagram -

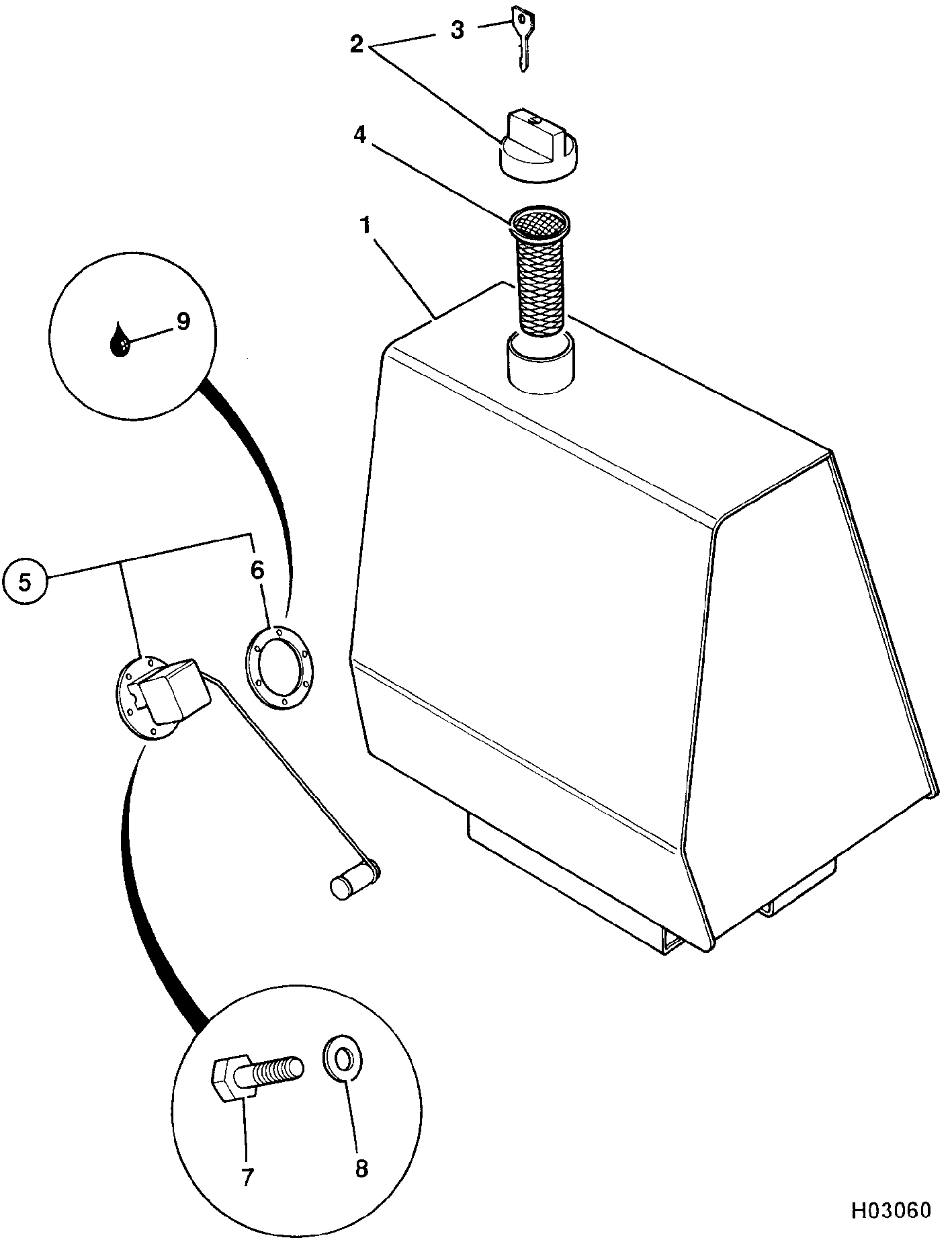

DIAG-B1-2-1-397922 B1-2-1 TANK, DIESEL FUEL
View Diagram -

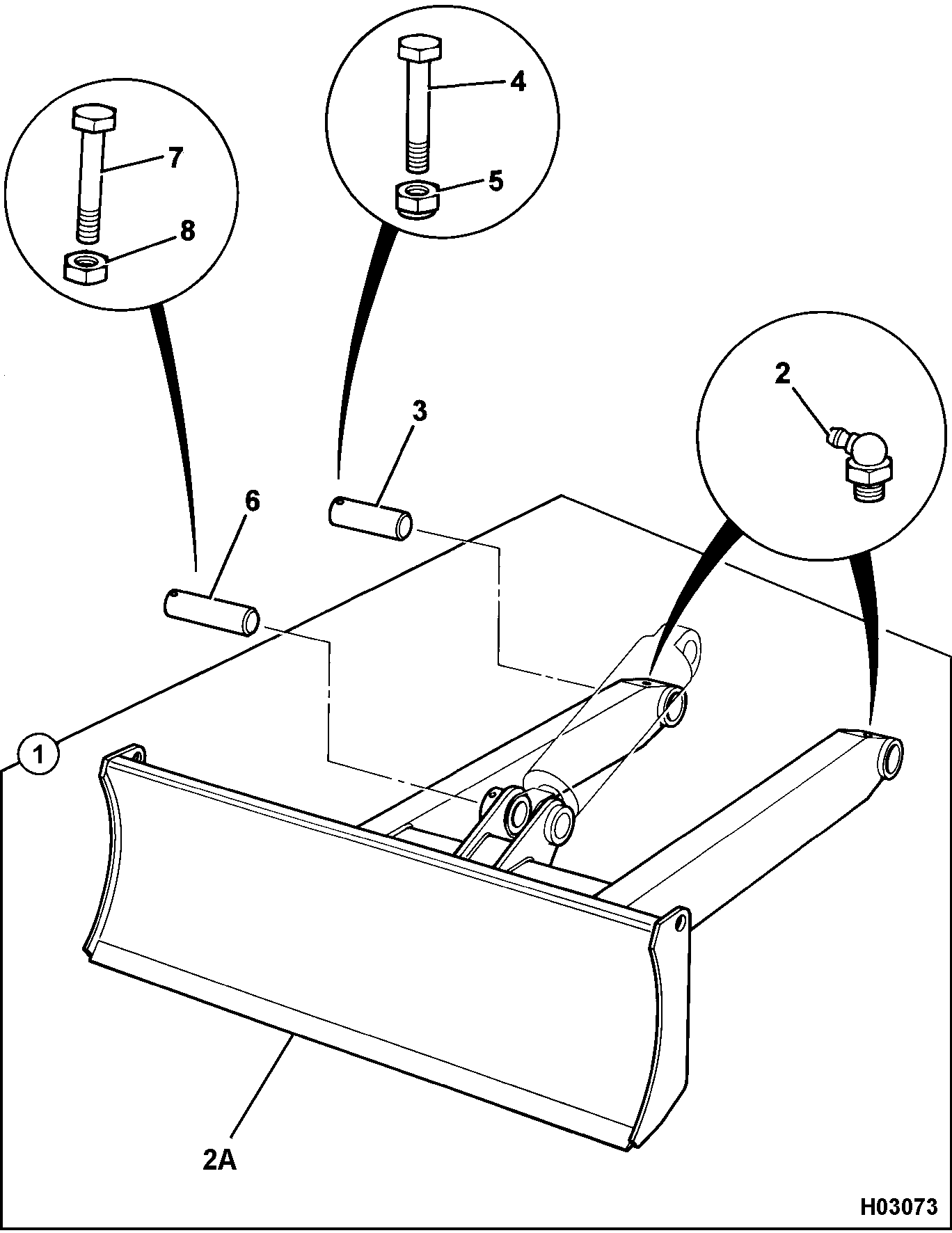

DIAG-A4-1-1-397922 A4-1-1 BLADE, DOZER
View Diagram
