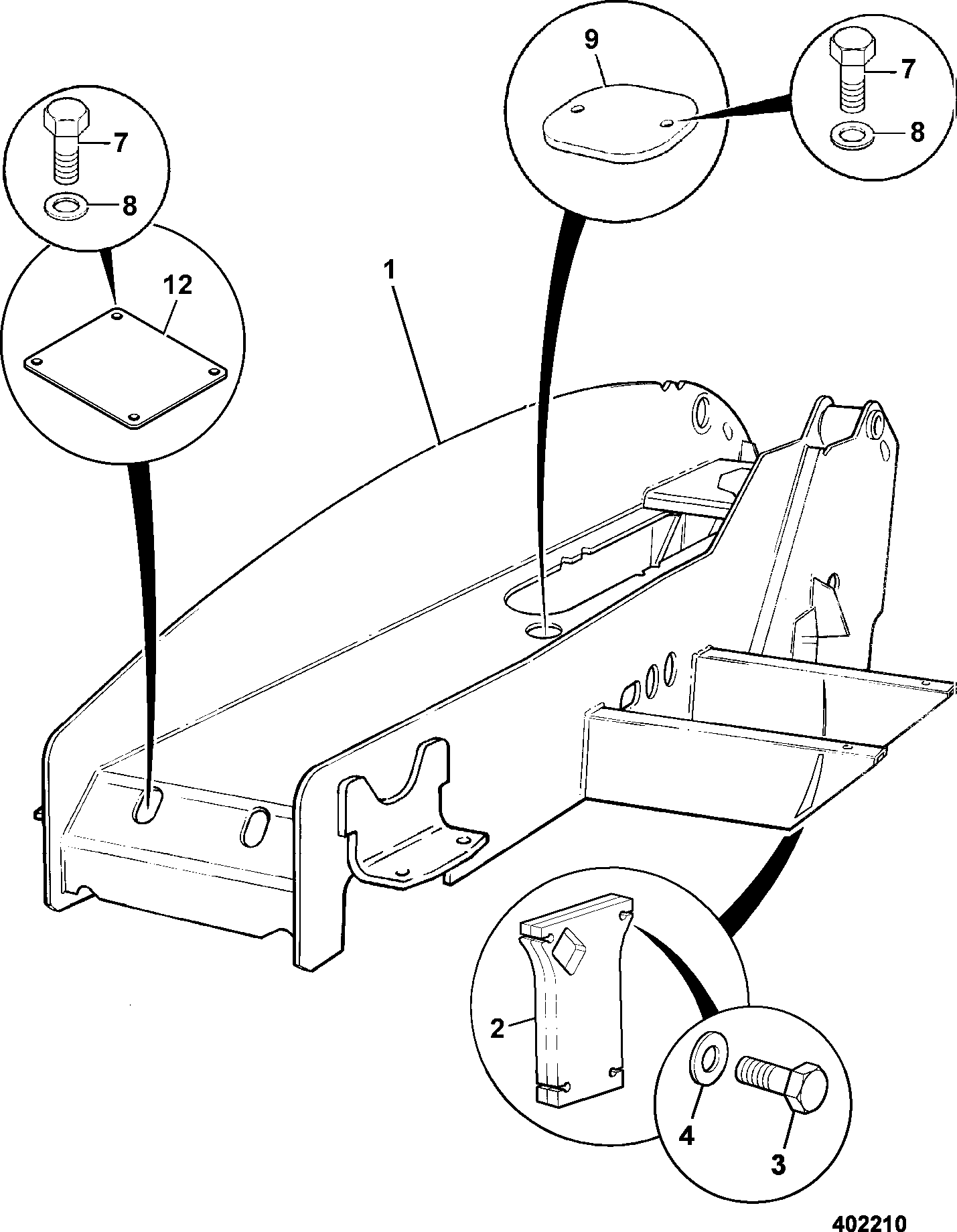

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PLATE SPACER 162/03772 | 1 | $37.06 | |||
| 2 | BOLT 1"UNFx9.5" 1305/3952Z 826/11352 | 1 | $93.43 | |||
| 2 | BOLT, 1" X 10" LG UNF RH AXLE MTG 1305/3954Z | 1 | $80.68 | |||
| 3 | WASHER 1" SMALL PLAIN 1410/0010Z | 1 | $4.80 | |||
| 4 | HEX NUT 1 " UNF 1340/0901Z | 1 | $17.51 | |||
| 6 | PLATE COVER 331/18014 | 1 | $152.99 | |||
| 7 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | DECKPLATE COVER PLATE 331/17596 | 1 | $86.66 | |||
| 10 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 11 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 12 | PLATE 162/00851 | 1 | $159.64 | |||
Showing 1 to 12 of 12 parts
