Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GROMMET BLIND 19.05 DIA x 5 THK 2410/1314 | 1 | $4.72 | |||
| 1 | MINI CX CHASSIS PAINTED 335/10285 | 1 | $1,818.90 | |||
| 3 | CAPSCREW 1391/3525 | 1 | $23.84 | |||
| 4 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 5 | NUT M12 SELF LOCK 1371/0403D | 1 | $6.69 | |||
| 6 | AXLE MTG BRKT 331/48397 | 1 | $87.06 | |||
| 6A | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 6A | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 7 | FRONT AXLE PIVOT PIN 811/90496 | 1 | $129.57 | |||
| 8 | GREASE NIPPLE 1450/1007 | 1 | $7.33 | |||
| 9 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | FRONT AXLE BUSH 831/10325 | 1 | $91.76 | |||
| 15 | SET SCREW M10x25 (P313-TIM) 1316/0407D | 1 | $5.85 | |||
| 20 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-B1-1-10-395189 B1-1-10 CHASSIS FRONT AXLE MOUNTING 4WD
View Diagram -

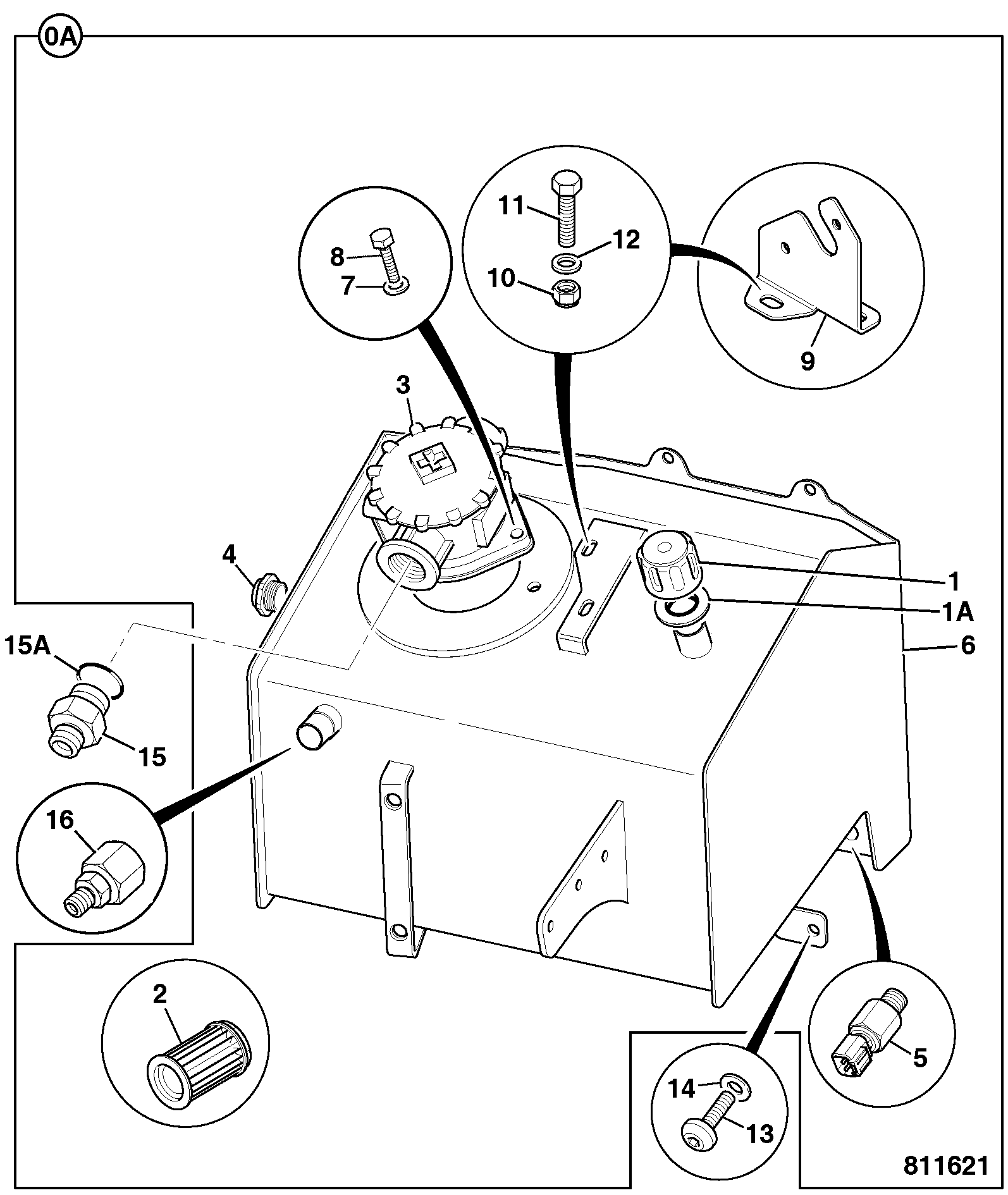

DIAG-B1-2-1-395189 B1-2-1 TANK, HYDRAULIC
View Diagram -

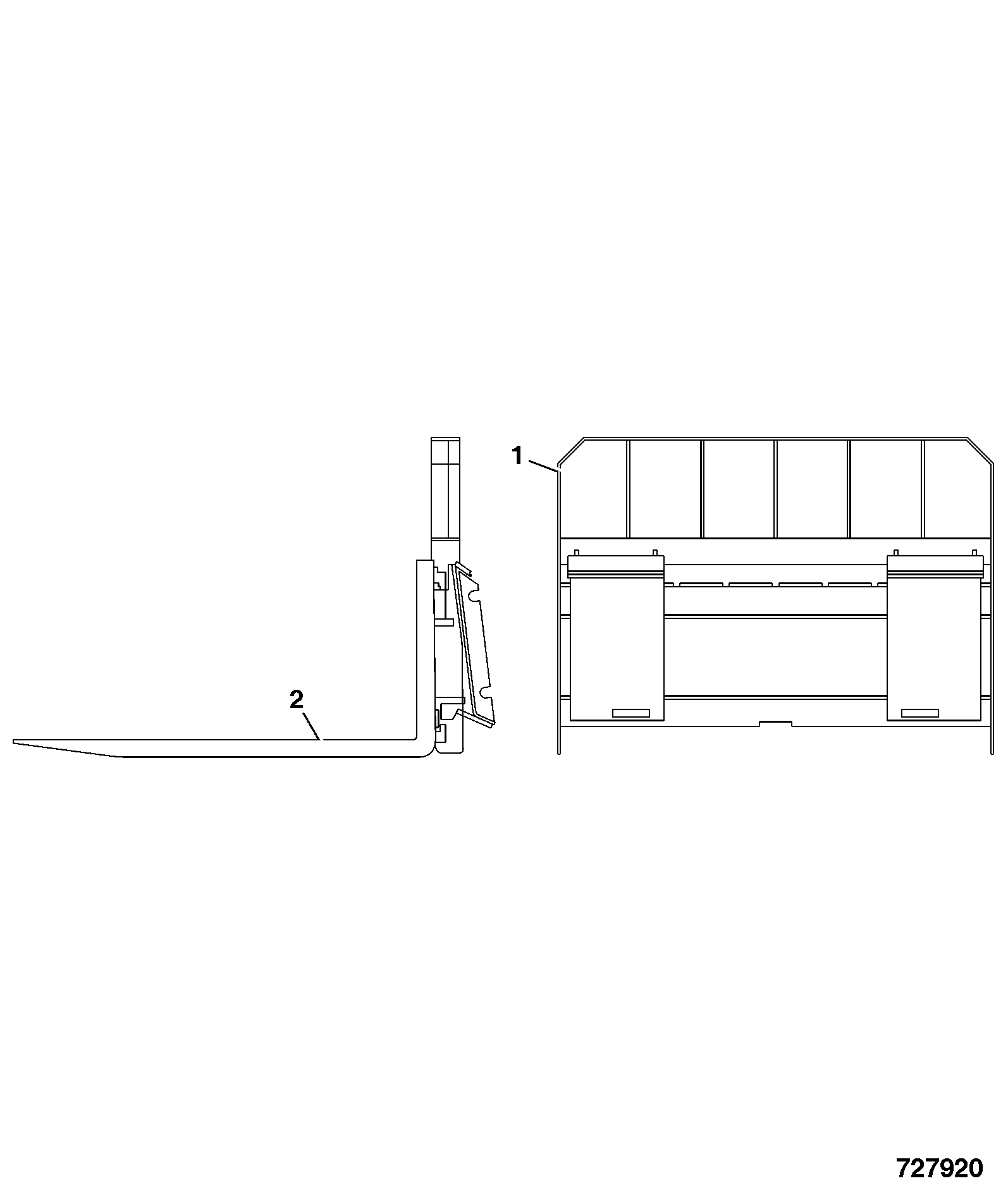

DIAG-A3-1-1-395189-11334213 A3-1-1 FORK FRAME AND FORKS 980/90278 QHICK HITCH MOUNTED
View Diagram
