| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | ||||
| 3 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 4 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 5 | BOLT M24 X 280 1316/4034 | 1 | $36.03 | |||
| 6 | BOLT M24 X 260 1316/4033 | 1 | $80.27 | |||
| 7 | NUT 1371/0903D | 1 | $61.98 | |||
| 10 | PIN PIVOT 811/10072 | 1 | $659.33 | |||
| 11 | BOLT M10x100 1315/3420Z | 1 | $8.86 | |||
| 12 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 13 | PLATE COVER 141/00573 | 1 | $197.43 | |||
| 14 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 15 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 16 | SPACER AXLE 142/00718 | 1 | $32.53 | |||
| 17 | FLEXI GROMMET MTR 926/00600 | 1 | $3.82 | |||
| 22 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 23 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

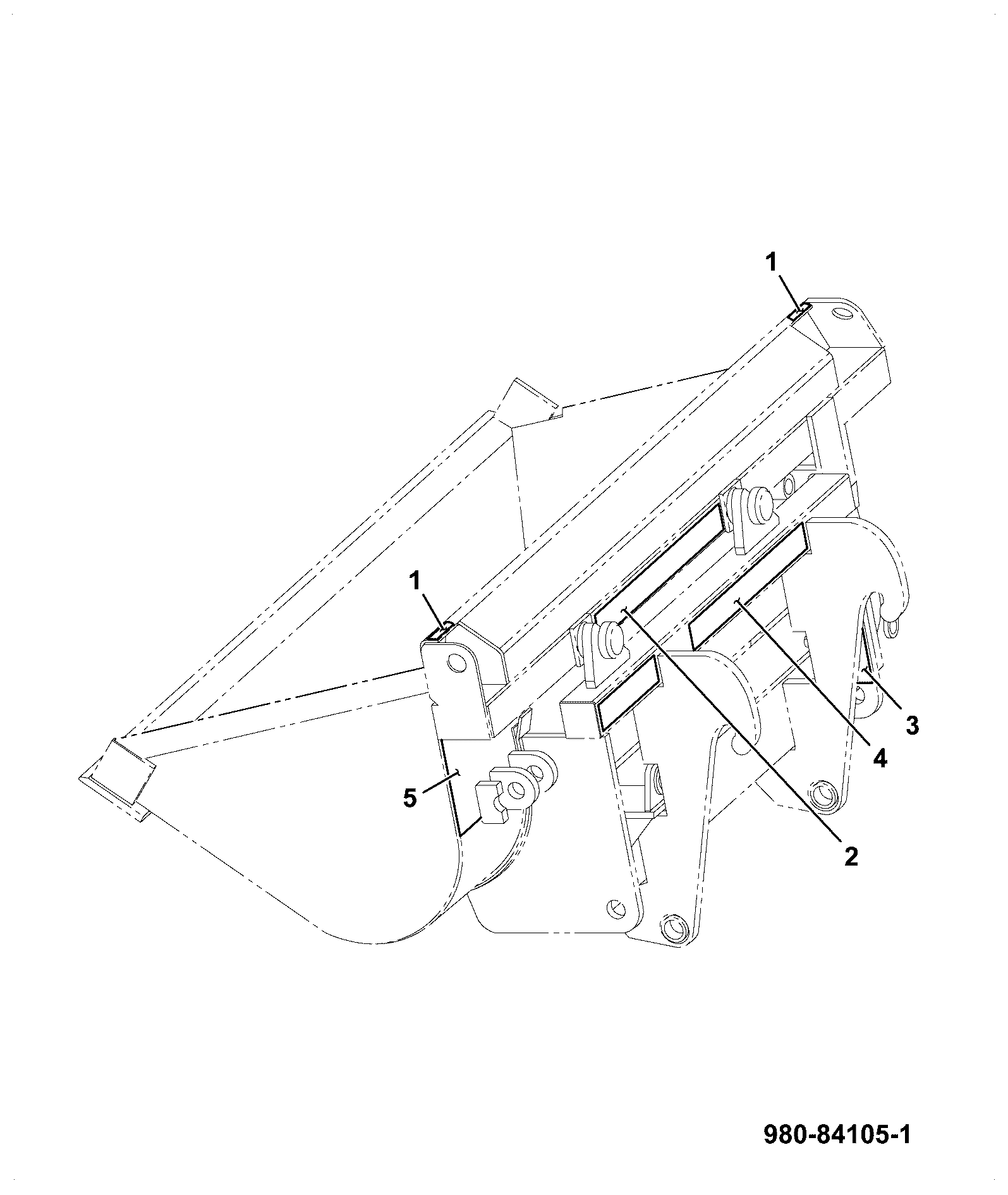

DIAG-A3-14-100-394235 A3-14-100 980/84105 DECALS 980/84105, 980/88255, 980/90165
View Diagram -

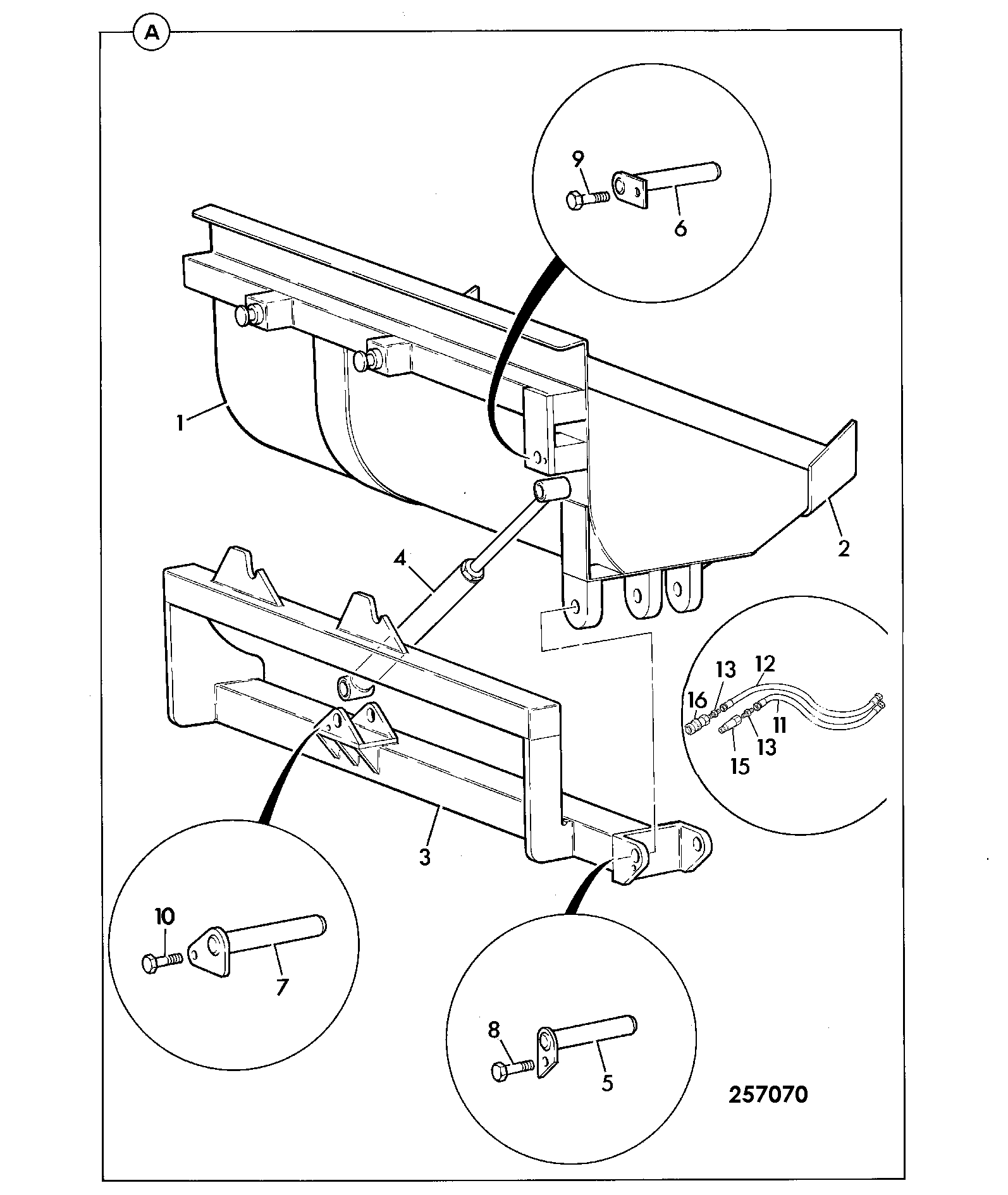

DIAG-A3-14-2-394235-10670902 A3-14-2 SHOVEL SIDE TIP DIRECT MOUNT
View Diagram -
DIAG-A3-14-1-394235-10670900 A3-14-1 SHOVEL SIDE TIP
View Diagram
