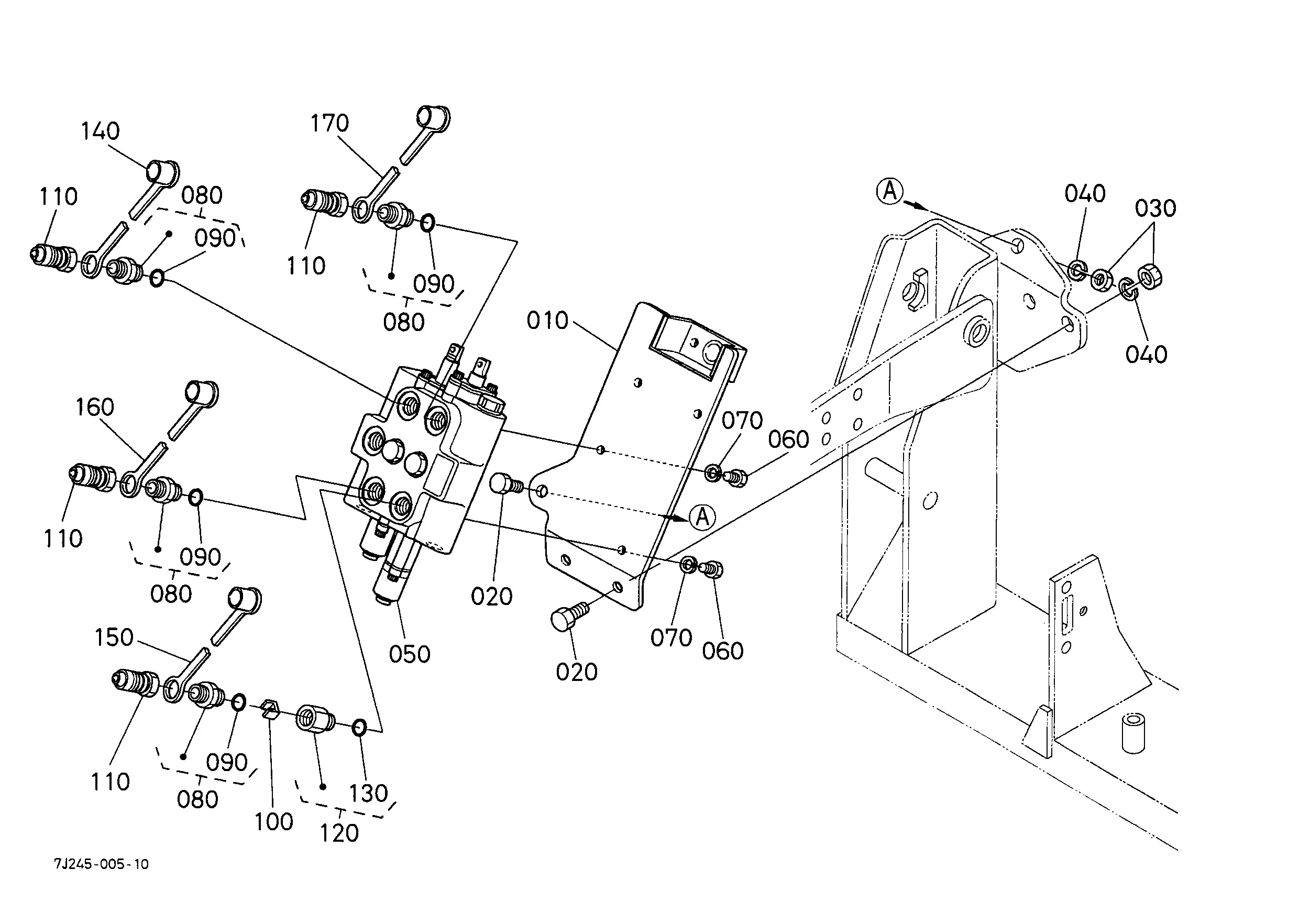

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LEVER 75532-62110 | 1 | $101.69 | |||
| 020 | Control Lever and Valve Bushing 75540-62140 | 1 | $9.83 | |||
| 030 | COLLAR, 5/8 75545-62150 | 1 | $1.92 | |||
| 040 | CIR CLIP, EXTERN 75599-41522 0Y462-50100 | 1 | $0.80 | |||
| 050 | ROD 75536-62160 75536-62162 | 1 | $40.21 | |||
| 060 | Rod End Joint (Rod End Bearing) 75532-62260 7K530-71180 | 1 | $16.40 | |||
| 070 | HEX,NUT(5/16-24U 75599-31042 | 1 | $0.51 | |||
| 080 | Control Lever Pin 75540-62190 K2C51-62190 | 1 | $12.60 | |||
| 090 | WASHER, SAE 75599-32009 | 1 | $0.14 | |||
| 100 | Cotter Pin (Pin, Cotter) 75599-53110 75599-53111 | 1 | $0.22 | |||
| 110 | LEVER, CONTROL 75532-62210 75532-62212 | 1 | $222.78 | |||
| 120 | GRIP,LEVER 31355-82520 31355-82522 | 1 | $20.10 | |||
| 130 | PIN 75599-51540 | 1 | $7.12 | |||
| 140 | SAE Flat Washer 60009-60704 75599-32015 | 1 | $4.29 | |||
| 150 | Pin for Control Lever, Gauge Wheel, and Hitch Assemblies 75599-53173 | 1 | $0.30 | |||
| 160 | replaces #75536-62280 ROD 2 75536-62280 75536-62282 | 1 | $47.64 | |||
| 170 | Plain (Flat) Washer 60009-60701 75599-32012 | 1 | $0.14 | |||
| 180 | Plated Cotter Pin (Cotter Key) 75599-53152 75599-52115 | 1 | $0.30 | |||
| 220 | COVER 75536-62310 | 1 | $210.25 | |||
| 230 | Hex Head Bolt, 5/16 x 1 Inch 60009-60022 75599-01215 | 1 | $0.51 | |||
| 240 | Lock Washer 60009-60601 75599-33012 | 1 | $0.27 | |||
| 260 | PLATE, LIMITER 75540-62410 | 1 | $40.72 | |||
| 270 | HINGE 75548-62420 | 1 | $110.40 | |||
| 280 | BOLT, HEX 75599-01255 | 1 | $2.59 | |||
| 290 | Nylon Lock Nut 75599-31912 | 1 | $0.78 | |||
| 300 | CUSHION, RUBBER 75548-62440 | 1 | $1.10 | |||
| 310 | Hex Bolt 75599-01212 | 1 | $0.51 | |||
| 340 | CUSHION 1, RUBBE 75540-62450 Discontinued | 1 | $0.30 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

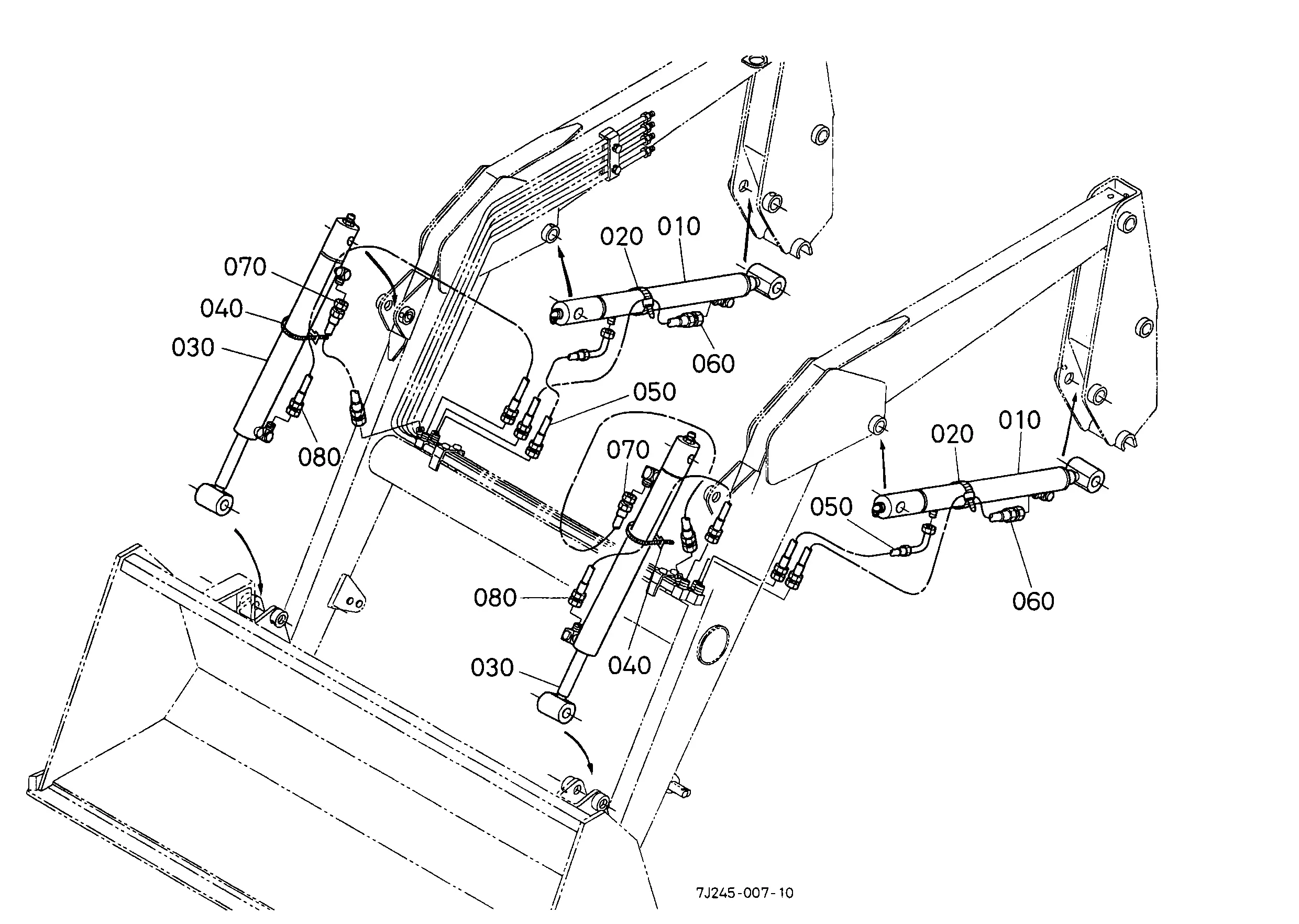

DIAG-B01500-85619 B01500 CYLINDER/HYDRAULIC HOSE
View Diagram -
DIAG-B00101-85619 B00101 CONTROL VALVE
View Diagram -

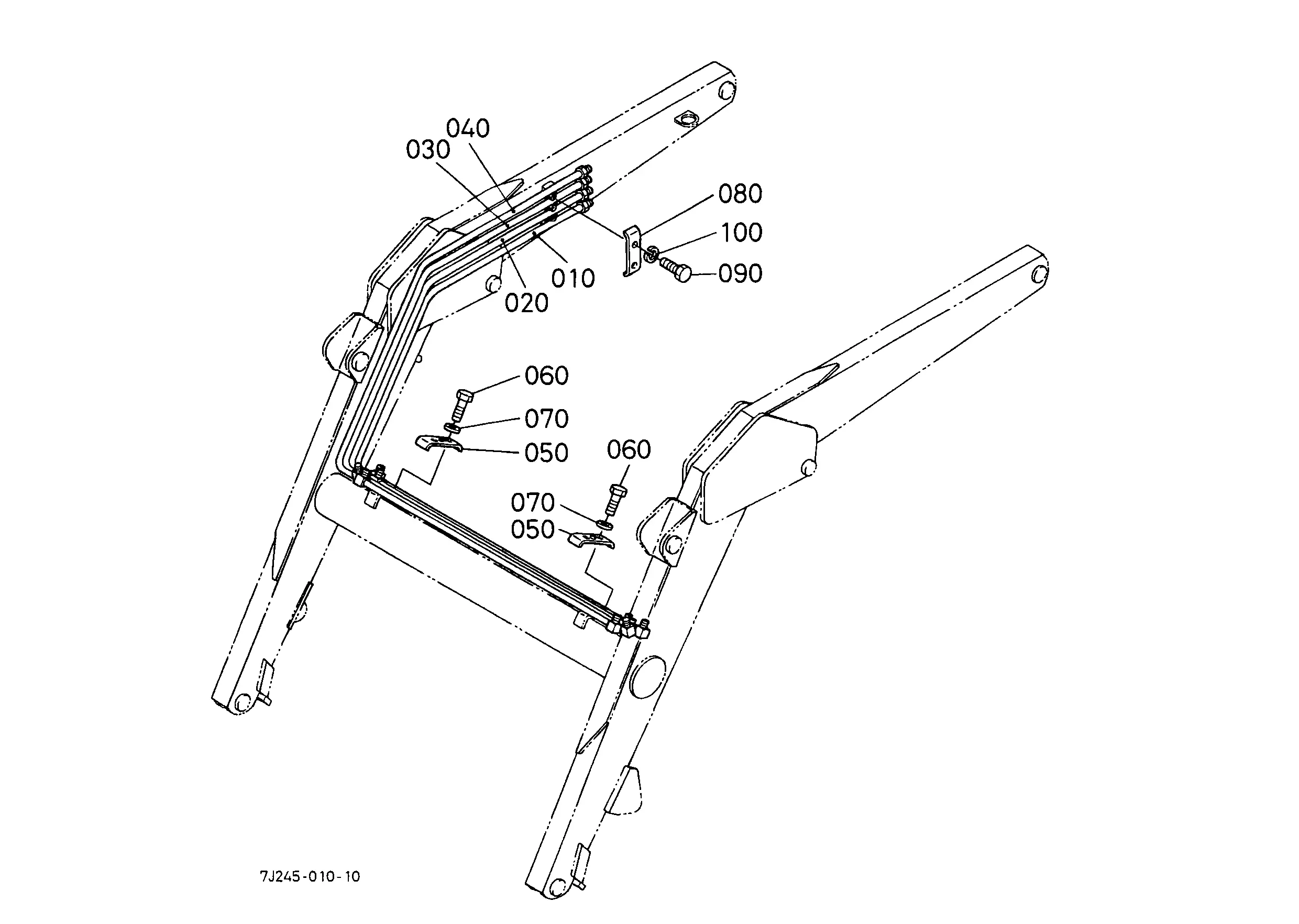

DIAG-B02000-85619 B02000 HYDRAULIC TUBE
