Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT PLATE, FRONT G3736-30100 | 1 | $1,805.19 | |||
| 020 | BOLT G3700-91210 G3700-91212 | 1 | $36.83 | |||
| 030 | RIVET G3700-94870 | 1 | $2.97 | |||
| 040 | HOLDER, COCK BAS G3700-73150 | 1 | $58.65 | |||
| 060 | COVER, FRONT G3700-30220 Discontinued | 1 | $163.13 | |||
| 070 | BOLT G3700-91190 | 1 | $1.43 | |||
| 080 | KIT, PLATE, ROOF G3740-30512 G3740-30514 | 1 | $1,962.90 | |||
| 100 | COMP,COVER MAGNE G3736-67840 | 1 | $57.40 | |||
| 110 | COMP,COVER G3736-30283 | 1 | $197.58 | |||
| 130 | HINGE, PANEL DOO G3736-30380 Discontinued | 1 | $149.69 | |||
| 140 | DOOR, PANEL G3736-63102 | 1 | $1,219.33 | |||
| 150 | BOLT G3700-91150 | 1 | $3.83 | |||
| 170 | SEAL,RUBBER G3736-96660 Discontinued | 1 | $37.97 | |||
| 190 | WINDOW, CHECK G3736-75600 | 1 | $148.94 | |||
| 200 | Nut 60009-61553 02054-50080 | 1 | $2.01 | |||
| 210 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 230 | CASE, LOAD CENTE G3736-03222 G3736-03223 | 1 | $567.00 | |||
| 240 | BOLT G3700-91170 Discontinued | 1 | $1.69 | |||
| 250 | KIT CASE, PANEL G3736-03200 | 1 | $376.90 | |||
| 260 | BOLT, HEX 01053-51030 | 1 | $4.79 | |||
| 270 | NUT (U) G3700-92500 | 1 | $1.45 | |||
| 280 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 290 | RUBBER G3700-96650 | 1 | $10.67 | |||
| 300 | WASHER, PLAIN G3700-94010 | 1 | $1.45 | |||
| 310 | RUBBER G3736-96670 | 1 | $67.31 | |||
| 320 | LABEL,STARTER G3700-88510 G3341-88510 | 1 | $8.50 | |||
| 330 | LABEL,CAUTION.VE G3700-88240 G3341-88240 | 1 | $8.70 | |||
| 340 | LABEL, FUEL 88696-50920 18901-50900 | 1 | $1.55 | |||
| 350 | LABEL,EXHAUST G3700-88270 | 1 | $14.96 | |||
| 360 | LABEL RADIATOR 18961-51450 | 1 | $9.25 | |||
| 370 | LABEL,HOOK CAUTI G3700-88360 G3352-88360 | 1 | $8.50 | |||
| 380 | LABEL,CAUTION.HI G3700-88060 G3102-88060 | 1 | $11.64 | |||
| 390 | LABEL, CAUTION G3700-88210 | 1 | $14.95 | |||
| 400 | LABEL G3700-88220 G3341-88310 | 1 | $24.28 | |||
| 410 | COVER, RADIATOR TOP G3700-75110 1G291-75110 | 1 | $31.32 | |||
| 450 | CAP MUFFLER G3700-12670 | 1 | $468.68 | |||
| 460 | PIN, SNAP G3700-94810 | 1 | $5.67 | |||
| 470 | Plain Washer 04011-50060 04012-50060 | 1 | $0.36 | |||
| 480 | PIN, JOINT 34070-44240 | 1 | $3.16 | |||
| 490 | HANDLE ASSY 53961-61420 | 1 | $37.58 | |||
| 500 | HOOK, BONNET (LA G3736-30090 | 1 | $212.07 | |||
| 520 | WASHER LOCK G3736-95360 | 1 | $28.15 | |||
| 550 | LABEL,FUEL TANK G3700-88410 | 1 | $14.95 | |||
Showing 1 to 43 of 43 parts
Related Assemblies
-

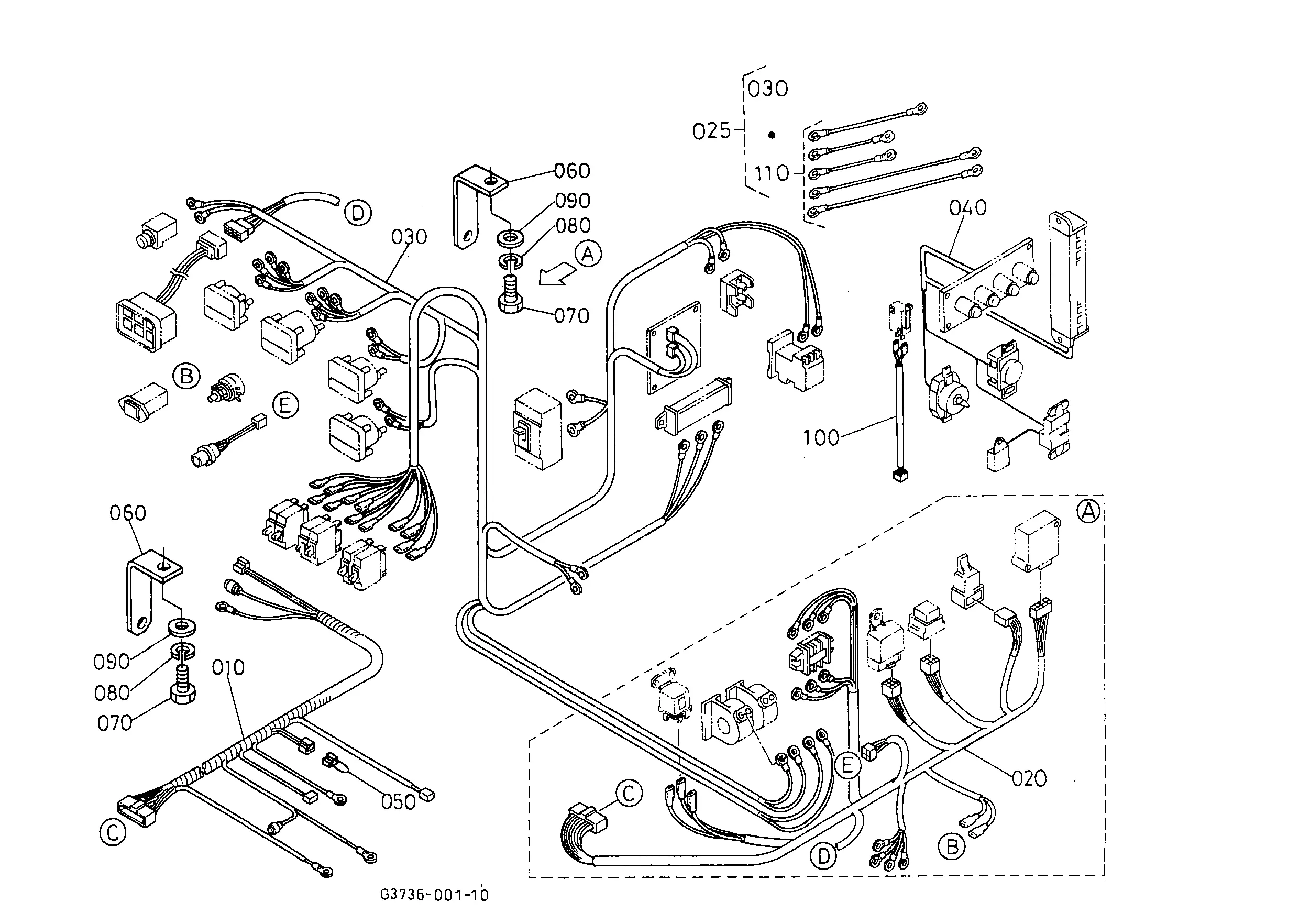

DIAG-B00600-85132 B00600 WIRE HARNESS
View Diagram -
DIAG-B00900-85132 B00900 BONNET (REAR)
View Diagram -

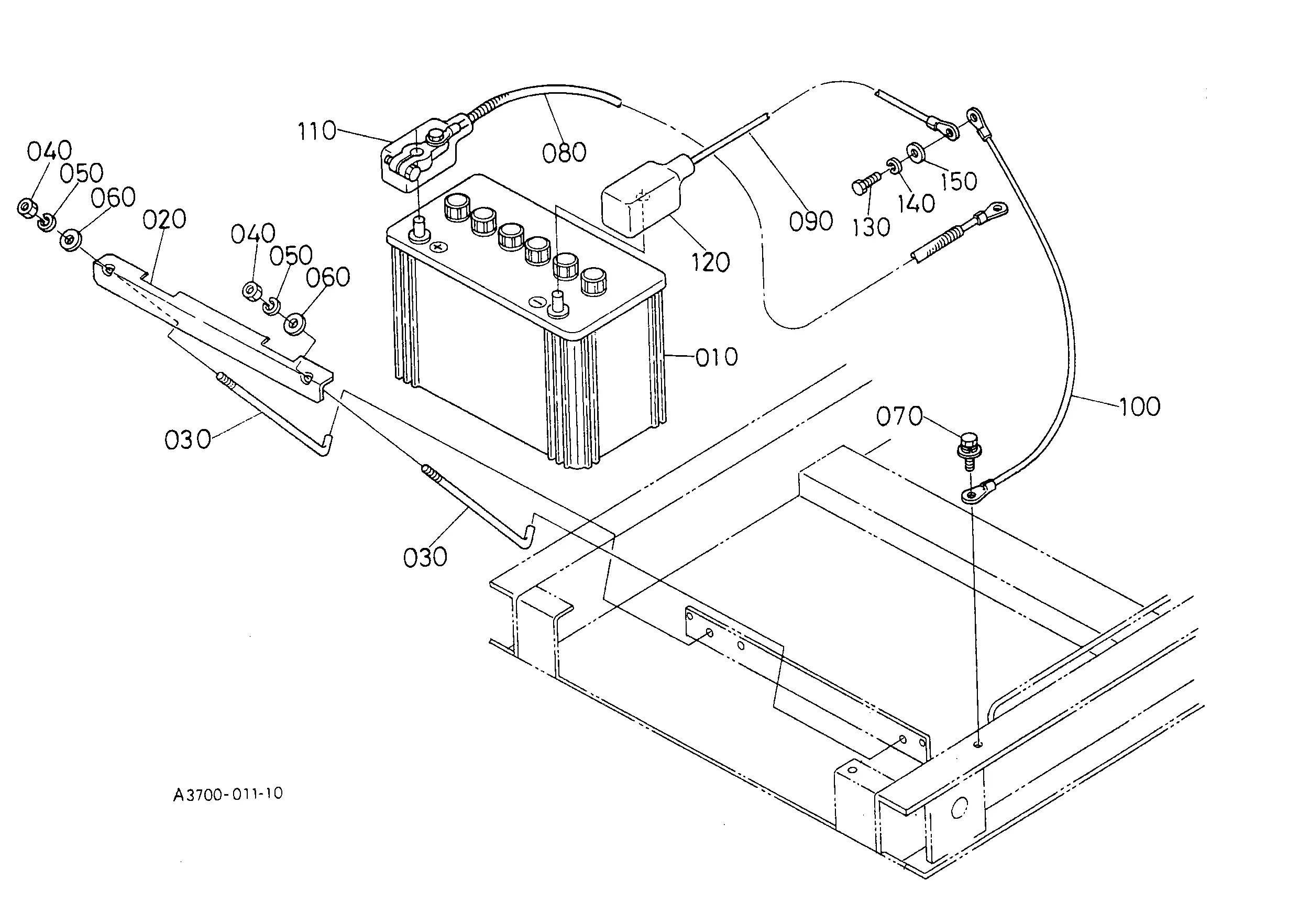

DIAG-B00500-85132 B00500 BATTERY
View Diagram
