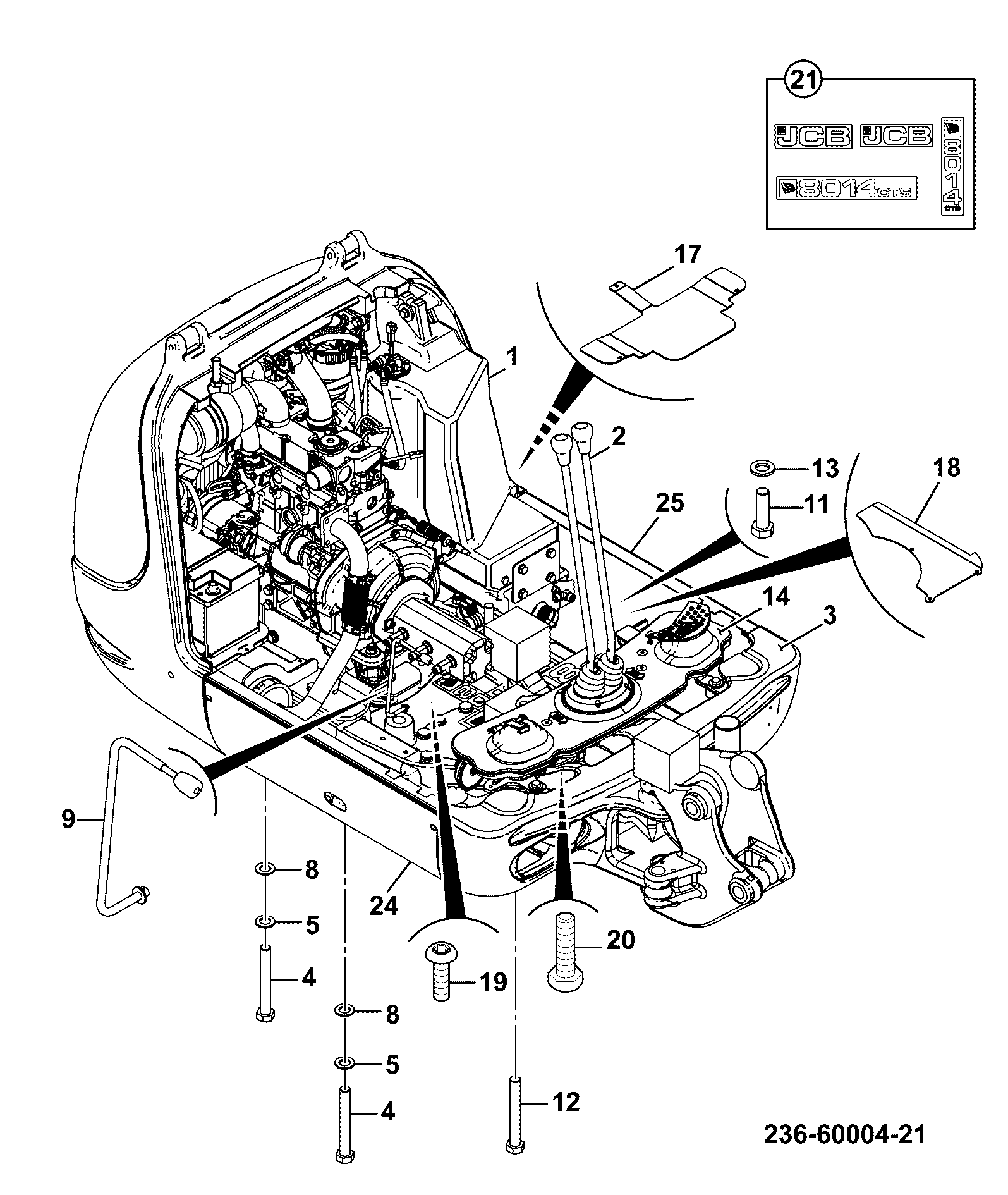

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 4 | BOLT 1315/3825D | 1 | $39.57 | |||
| 5 | M20 HARD WASHER 1422/0012D | 1 | $16.30 | |||
| 8 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 11 | BOLT 6009/3510D | 1 | $3.33 | |||
| 12 | FINE PITCH 6009/3522D | 1 | $73.22 | |||
| 13 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 17 | BELLY PLATE 331/44897 | 1 | $171.21 | |||
| 18 | VALVE PROTECTION PLATE 331/42759 | 1 | $55.73 | |||
| 19 | BUTTON HEAD SCREW M10x16 (P511) 826/11545 | 1 | $7.34 | |||
| 20 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-B0-4-2-397816 B0-4-2 UPPER STRUCTURE
View Diagram -
DIAG-B0-4-4-397816 B0-4-4 UPPER STRUCTURE
View Diagram -
DIAG-A4-1-3-397816 A4-1-3 DOZER ASSEMBLY
View Diagram
