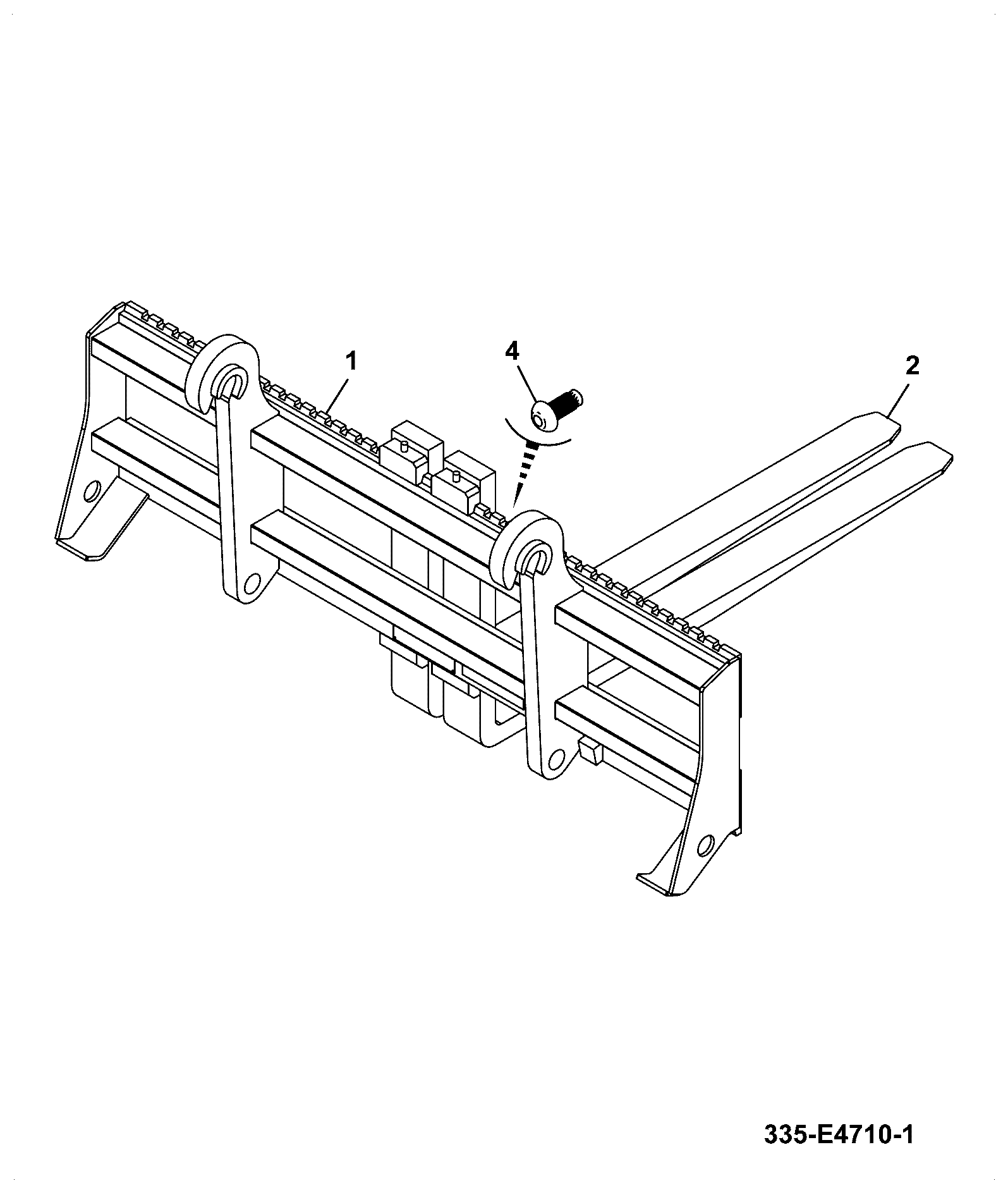

A680-2-2 FORKS AND FRAMES HT BUILDS, 2000MM WIDE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WA FORK FRAME //L 411/436 511/60700	1	AVAILABLE TO ORDER	$3,976.49	Quantity
2	WA FORK 1200mm LG. 511/60800	1	AVAILABLE TO ORDER	$803.08	Quantity
4	SCREW 4X1/4 826/00115	1	AVAILABLE TO ORDER	$1.43	Quantity

Showing 1 to 3 of 3 parts

DIAG-A680-1-2-404733 A680-1-2 FORKS AND FRAMES HT BUILDS, 1500MM WIDE
View Diagram

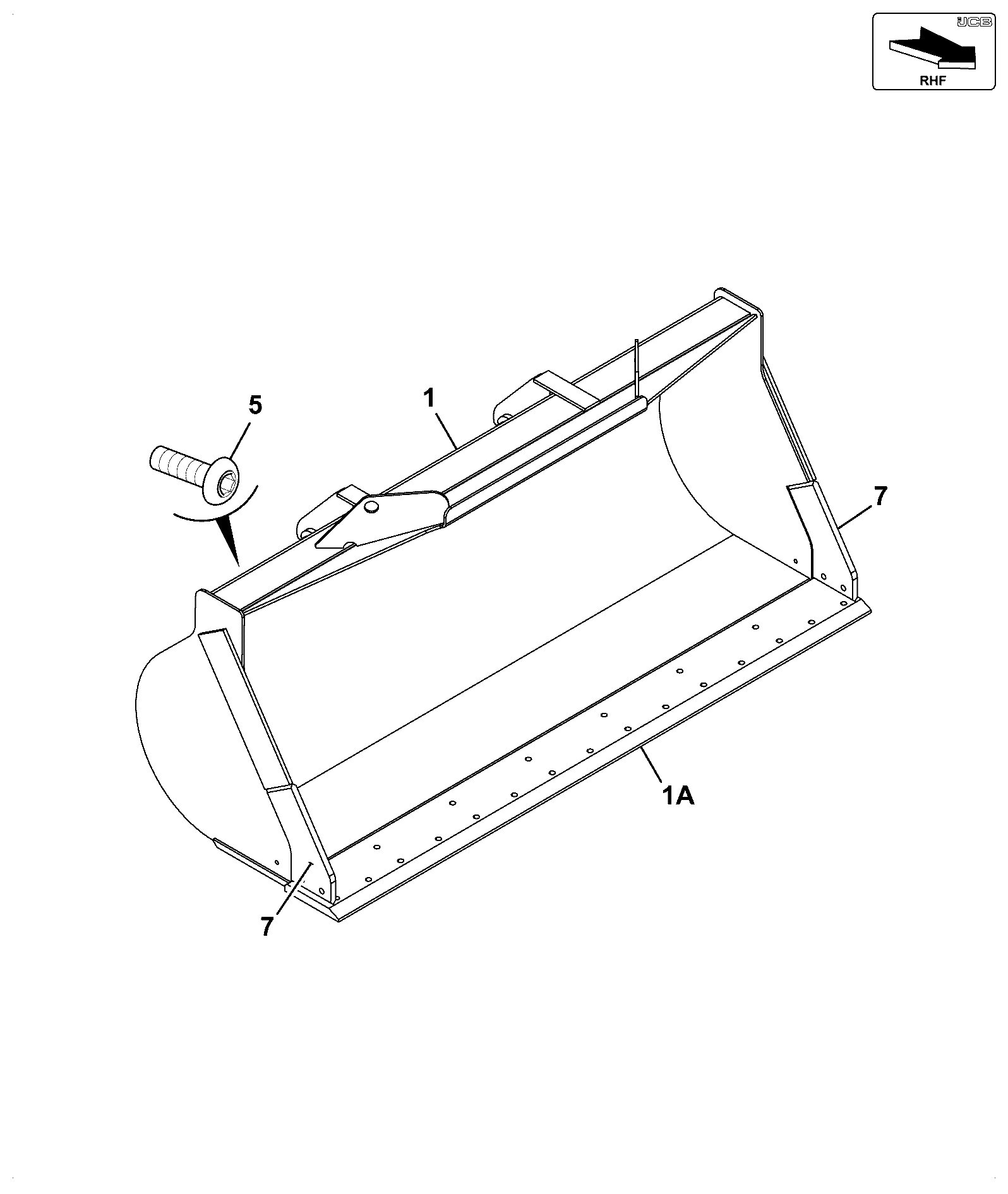

DIAG-A110-35-1-404733 A110-35-1 GENERAL PURPOSE SHOVEL 2.3cu.m .Z BAR
View Diagram

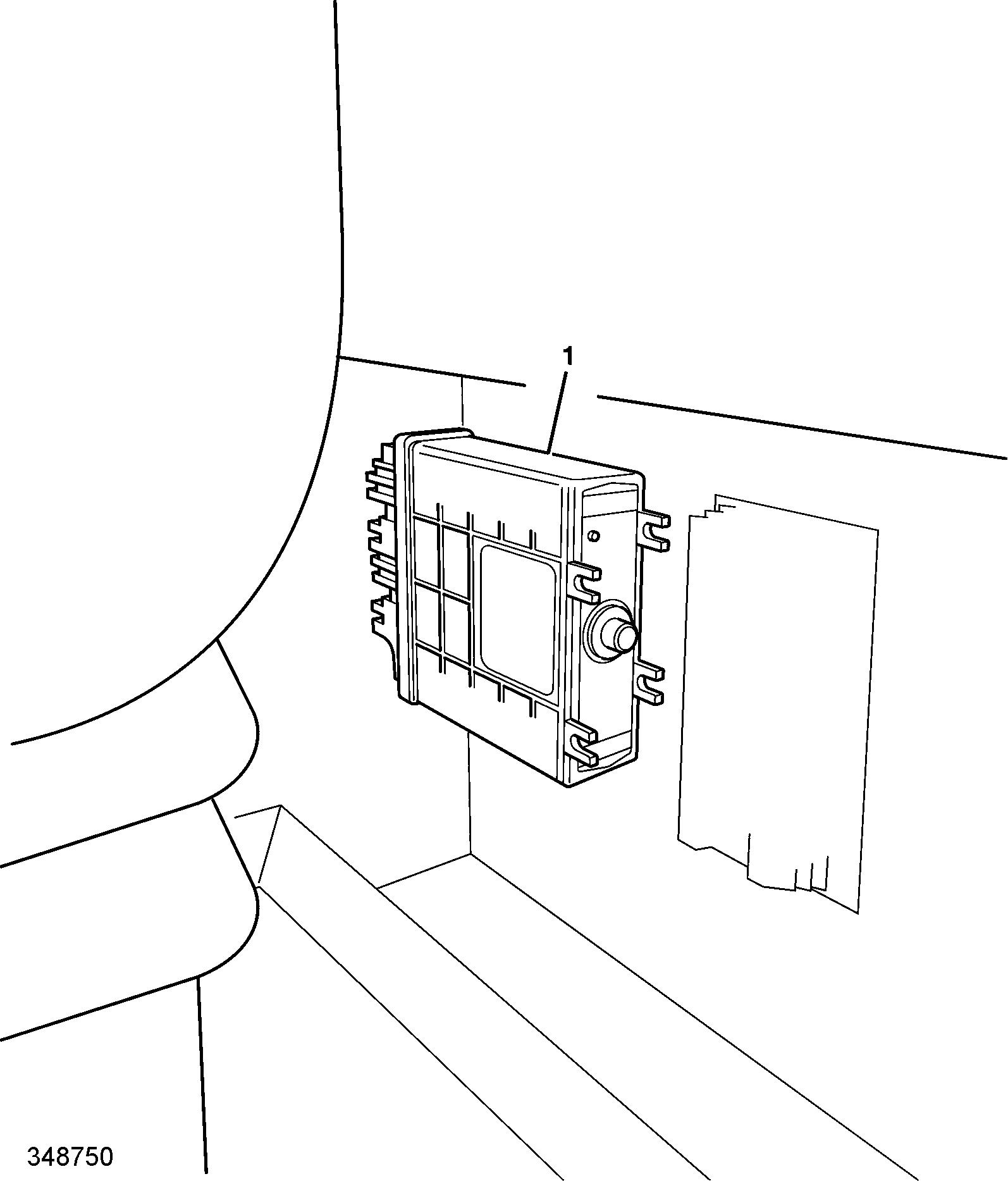

DIAG-C360-20-1-404733 C360-20-1 ELECTRICAL CONTROL UNITS TRANSMISSION CONTROL SOLID TYRES
