A610-25-1 SPECIAL SHOVEL GRAIN SHOVEL – 3.56m3 x 2450MM QUICK-FIT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Weld on 2450mm 334/E8562	1	AVAILABLE TO ORDER	$531.21	Quantity
3	Toeplate 2450mm (Bolt on) 334/E8561	1	AVAILABLE TO ORDER	$567.61	Quantity
4	Set x 8 334/E8392	1	AVAILABLE TO ORDER	$122.33	Quantity

Showing 1 to 3 of 3 parts

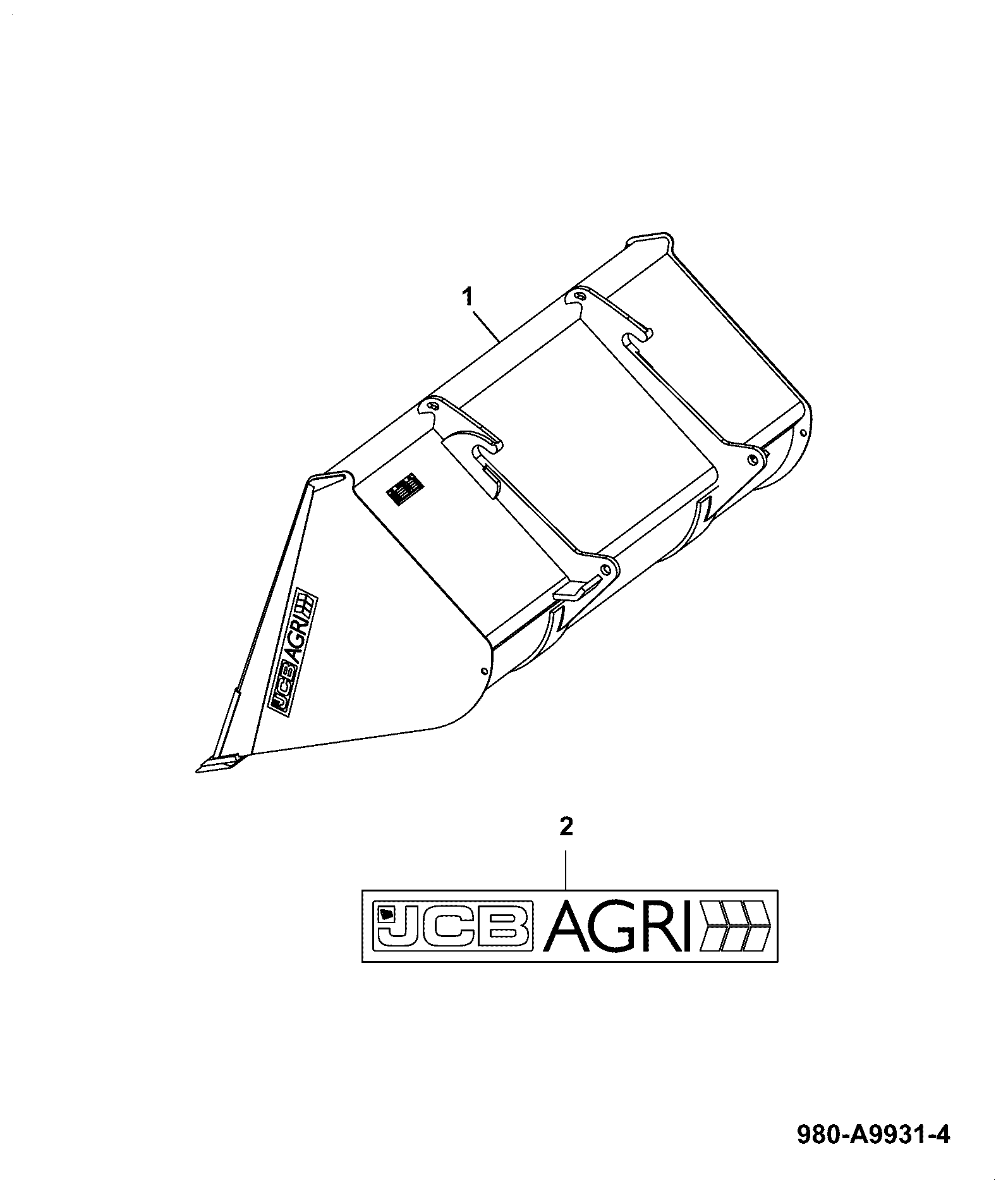

DIAG-A610-15-1-403082 A610-15-1 SPECIAL SHOVEL GRAIN SHOVEL - 3.56m3 X 2450m
View Diagram

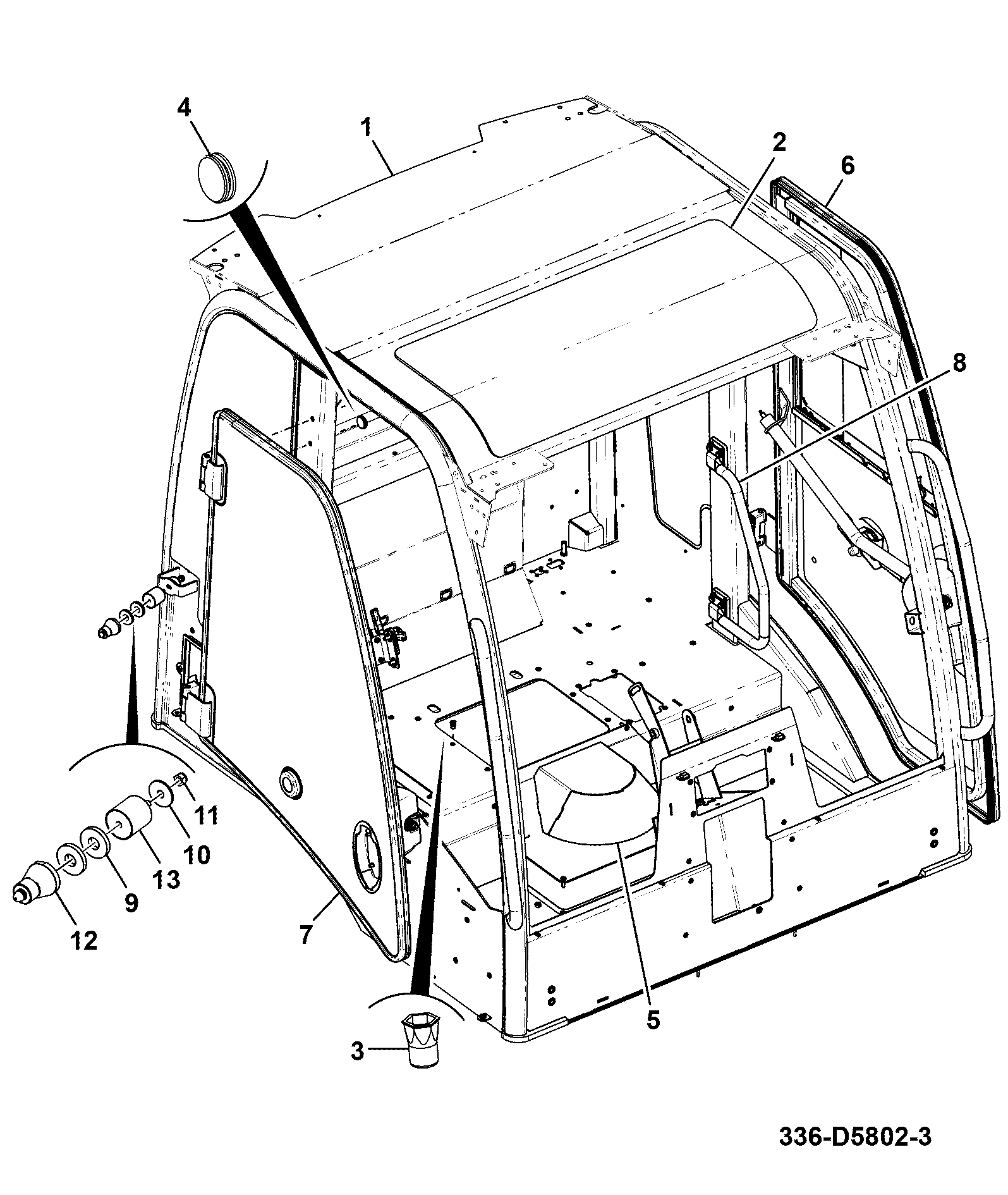

DIAG-B100-5-1-403082 B100-5-1 BODYWORK INSTALLATION ASSEMBLIES SLIDING WINDOW ABI - CAB
