| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ALTERNATOR 3A011-74010 3A012-74010 | 1 | $338.05 | ||||
| ASSY RECTIFIER 16241-64850 16231-64850 | 1 | $367.12 | ||||
| ASSY REGULATOR 1K531-64602 1K531-64603 | 1 | $245.57 | ||||
| BEARING BALL 16652-64780 16652-64782 | 1 | $38.88 | ||||
| BEARING, BALL 16652-64770 | 1 | $38.92 | ||||
| BOLT 15881-91040 | 1 | $2.86 | ||||
| BOLT 15881-91050 | 1 | $4.79 | ||||
| BOLT, THROUGH 15881-64260 | 1 | $17.75 | ||||
| BRUSH, ALTERNATO 15881-64090 | 1 | $13.30 | ||||
| BUSHING, INSULAT 16241-64900 | 1 | $28.41 | ||||
| COLLAR, ALTERNAT 15881-64150 | 1 | $14.03 | ||||
| COVER, BEARING 15881-64800 | 1 | $10.96 | ||||
| COVER, END 16241-64230 16231-64230 | 1 | $46.73 | ||||
| FRAME, DRIVE END 16678-64020 66436-64020 | 1 | $568.11 | ||||
| FRAME, END 16241-64060 | 1 | $184.85 | ||||
| HOLDER, BRUSH 16652-64310 | 1 | $68.49 | ||||
| NUT 14182-92030 | 1 | $3.52 | ||||
| NUT 15881-92010 | 1 | $10.19 | ||||
| NUT 15881-92020 | 1 | $2.86 | ||||
| PLATE, RETAINER 15881-64710 | 1 | $12.49 | ||||
| PULLEY 17356-64110 16427-64110 | 1 | $54.95 | ||||
| ROTOR 15881-64040 66436-64040 Discontinued | 1 | $374.67 | ||||
| SCREW, ROUND HEA 15881-93010 | 1 | $2.86 | ||||
| SCREW, ROUND HEA 15881-93020 | 1 | $1.34 | ||||
| SCREW, ROUND HEA 16543-93040 15881-93030 | 1 | $1.76 | ||||
| SCREW, ROUND HEA 15881-93040 | 1 | $1.76 | ||||
| SPRING, BRUSH 15881-64330 | 1 | $6.55 | ||||
Showing 1 to 27 of 27 parts
Related Assemblies
-

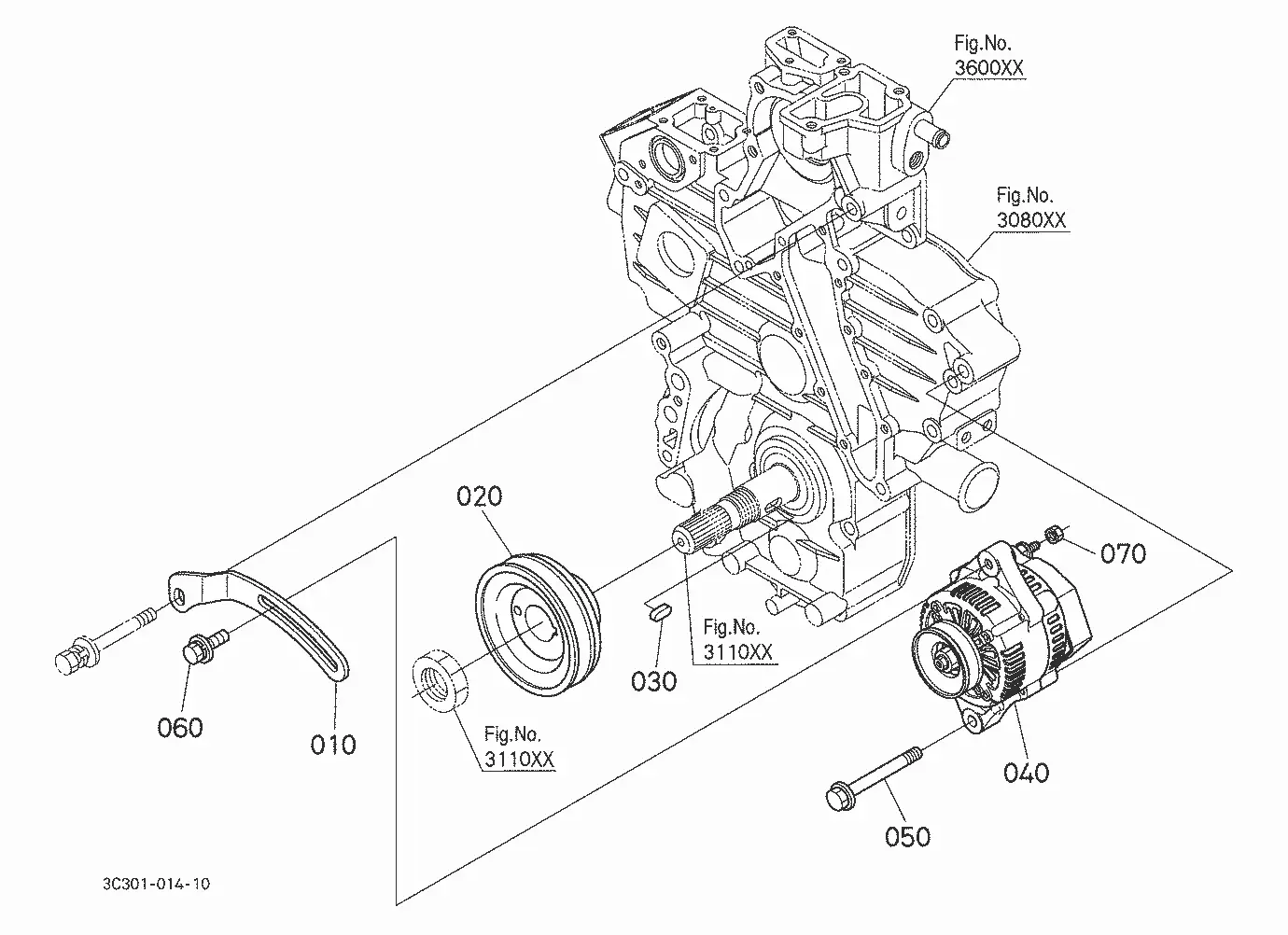

DIAG-A54000-85745 A54000 ALTERNATOR
View Diagram -

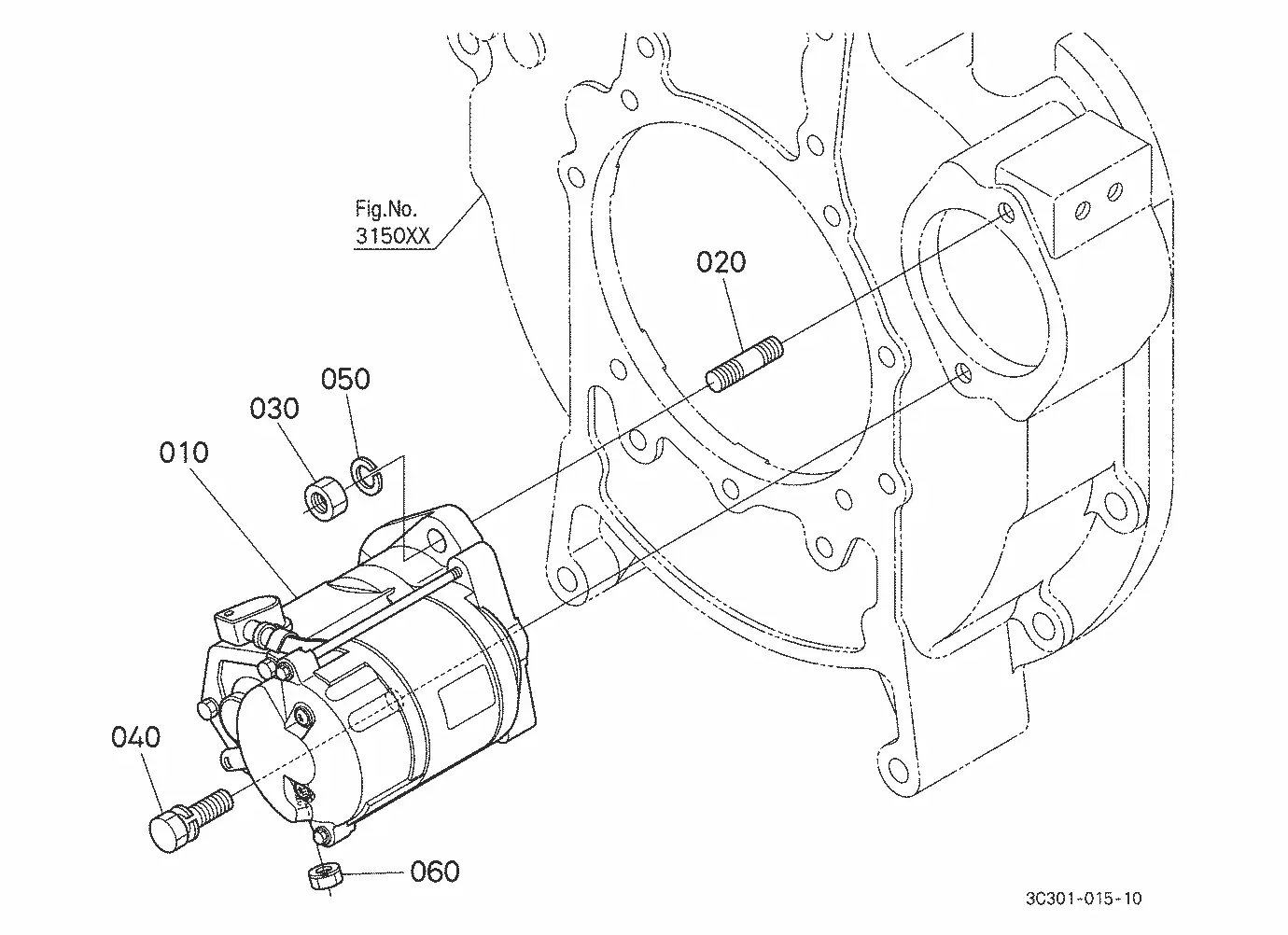

DIAG-A56000-85745 A56000 STARTER
View Diagram -

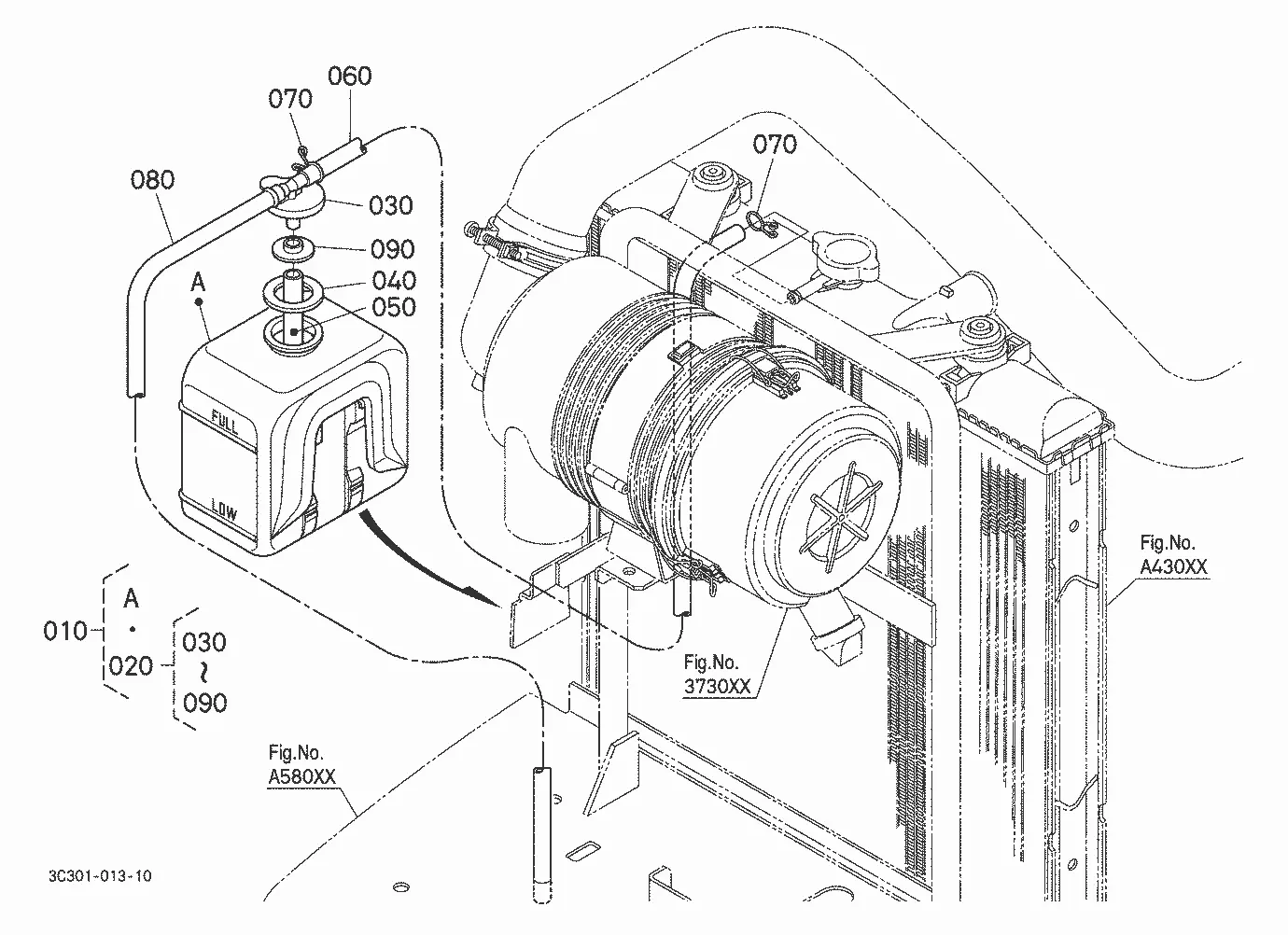

DIAG-A45000-85745 A45000 RESERVE TANK
View Diagram
