Kubota M5-091HDC12 A54002 ALTERNATOR [A] Parts Diagram

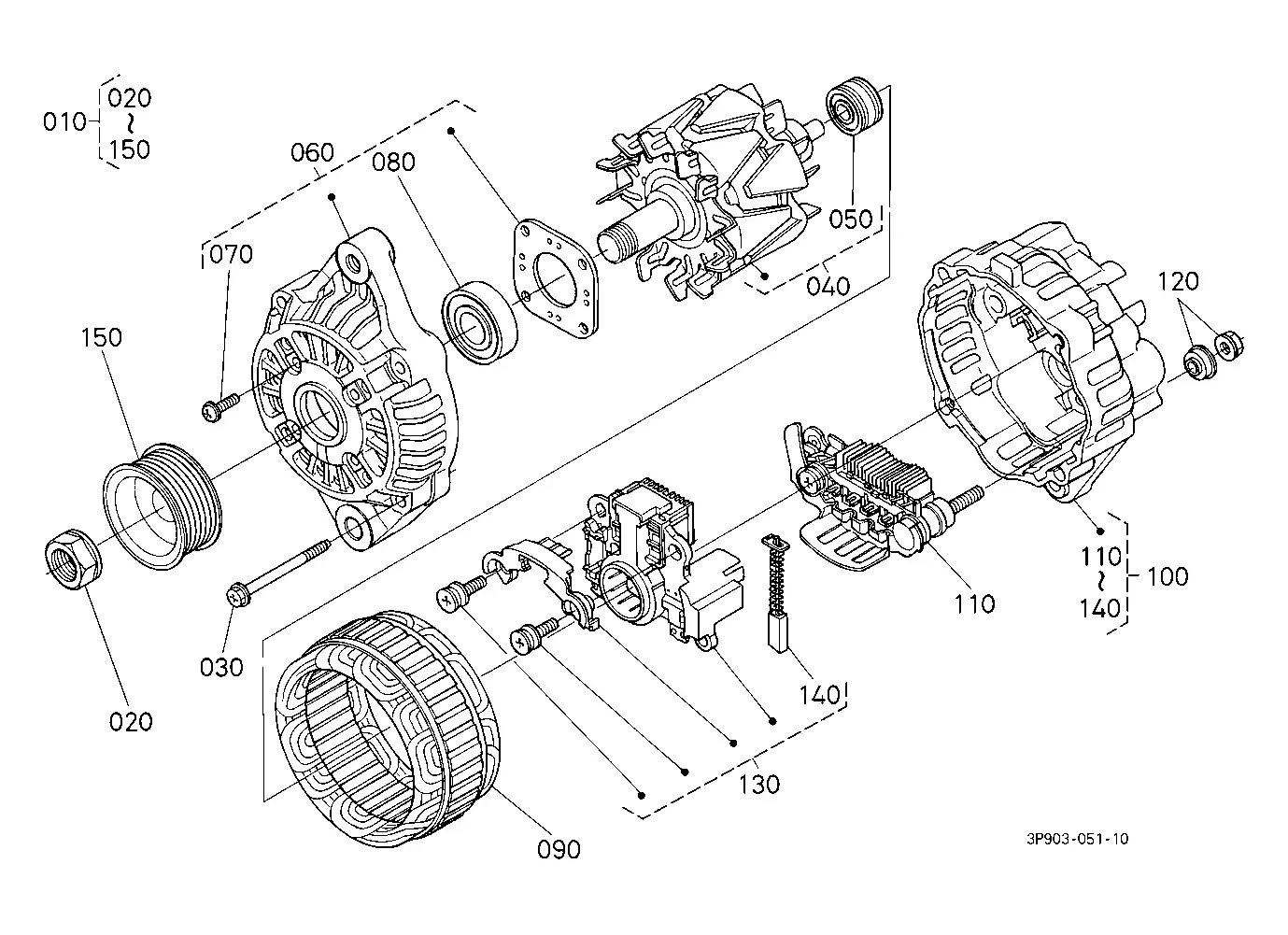

Exploded-view parts diagram "A54002 ALTERNATOR [A]" for the Kubota M5-091HDC12. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ASSY ALTERNATOR 3P903-64010 3P903-64012 | 1 | $239.61 | ||||
| BOLT 1E352-74940 | 1 | $33.22 | ||||
| BOLT 01176-51004 | 1 | $6.57 | ||||
| BOLT 1G774-91010 | 1 | $13.55 | ||||
| COLLAR 3B791-16020 | 1 | $14.96 | ||||
| Flange Bolt 01754-50840 | 1 | $5.68 | ||||
| NUT 02076-50100 | 1 | $0.80 | ||||
| NUT 12264-92020 | 1 | $1.45 | ||||
| Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | ||||
| Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | ||||
| PULLEY,FAN DRV 1J583-74280 | 1 | $369.02 | ||||
| PULLEY,FAN DRV 1J584-74280 | 1 | $356.44 | ||||
| SPACER 3B791-16040 | 1 | $32.91 | ||||
| Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | ||||
| STAY,DYNAMO 3B791-16010 | 1 | $38.77 | ||||
Showing 1 to 15 of 15 parts
