Kubota M8540DT A54000 ALTERNATOR Parts Diagram

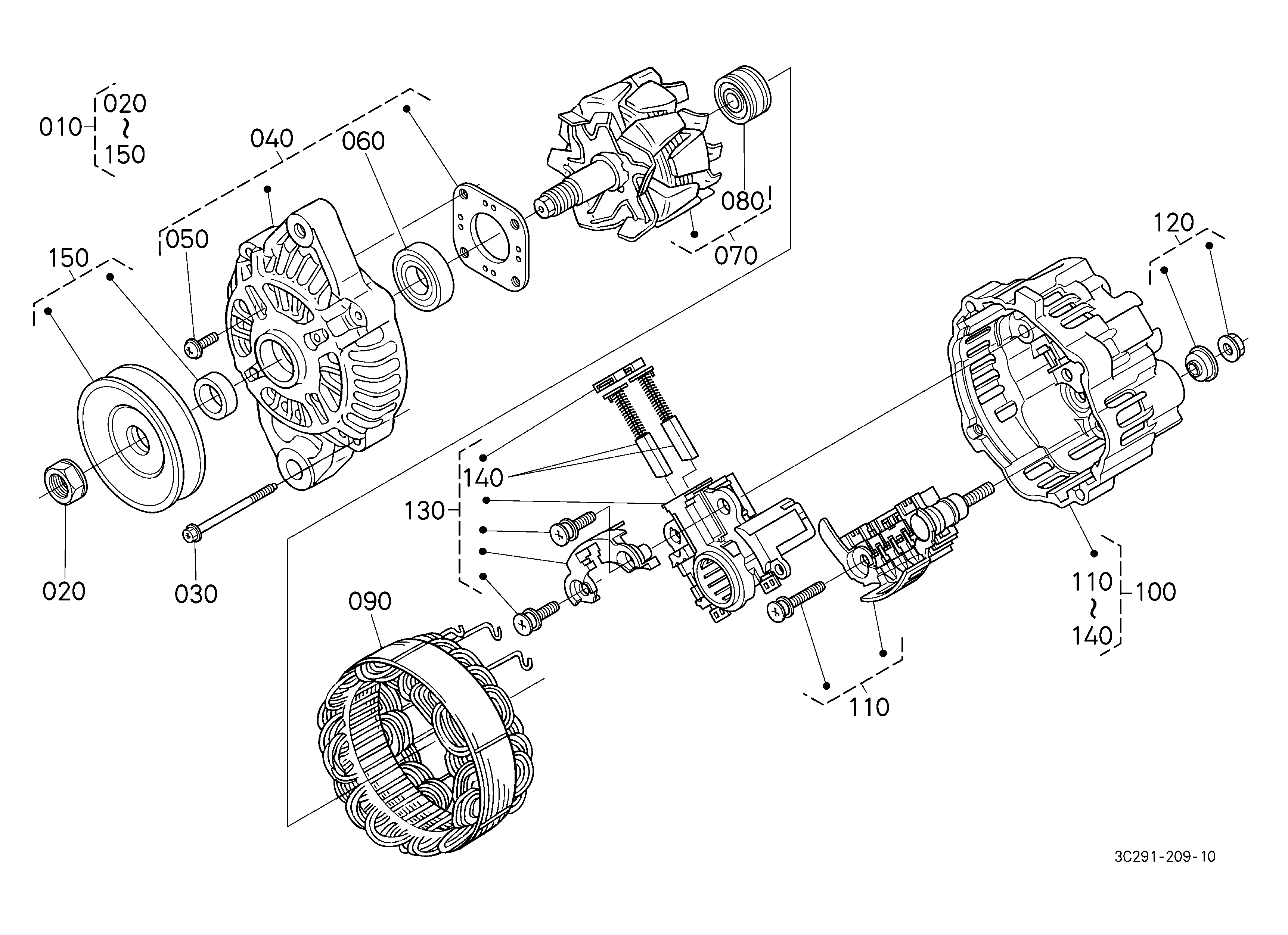

Exploded-view parts diagram "A54000 ALTERNATOR" for the Kubota M8540DT, Kubota M8540DT-1, Kubota M8540F, Kubota M8540F-1, Kubota M8540HD, Kubota M8540HD-1, Kubota M8540HD12 and Kubota M8540HD12-1. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | STAY 1C010-64420 | 1 | $14.23 | |||
| 020 | PULLEY, FAN DRIV 1C020-74280 | 1 | $260.54 | |||
| 040 | BOLT 1C010-91010 1J529-91010 | 1 | $34.05 | |||
| 040 | BOLT 1G774-91010 | 1 | $13.55 | |||
| 040 | BOLT 1J700-91010 | 1 | $26.49 | |||
| 050 | ASSY ALTERNATOR & CORE 3C081-74010 3C081-74012 | 1 | $248.95 | |||
| 050 | REMAN ASSY ALTER & CORE 77700-02600 | 1 | $162.76 | |||
| 060 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 070 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 080 | BOLT,FLANGE 3A111-17390 | 1 | $9.13 | |||
| 090 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 100 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 110 | NUT 02076-50100 | 1 | $0.80 | |||
| 120 | NUT 12264-92020 | 1 | $1.45 | |||
Showing 1 to 14 of 14 parts
