| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | STARTER,ASSY 16611-63010 1EA93-63010 | 1 | $603.65 | |||
| 020 | YOKE ASSY 16661-63080 | 1 | $563.80 | |||
| 025 | COVER 16611-63450 | 1 | $21.56 | |||
| 030 | ARMATURE, ASSY 11197-63070 | 1 | $672.27 | |||
| 040 | BRG BALL RADIAL1 11460-63500 | 1 | $28.79 | |||
| 050 | BRG BALL RADIAL8 11460-63530 | 1 | $31.66 | |||
| 060 | CLUTCH, OVER-RUN 16611-63040 | 1 | $476.11 | |||
| 070 | FRAME, END 16611-63030 | 1 | $151.49 | |||
| 080 | ASSY SWITCH MAGN 16611-63020 | 1 | $498.40 | |||
| 090 | FRAME, END 17341-63200 | 1 | $96.63 | |||
| 100 | HOLDER, ASSY BRU 11197-63380 | 1 | $64.20 | |||
| 110 | SPRING,BRUSH * 15401-63390 | 1 | $3.59 | |||
| 120 | GEAR (2) 11460-63270 | 1 | $57.90 | |||
| 130 | RETAINER 11460-63110 | 1 | $9.19 | |||
| 140 | ROLLER 19212-63100 | 1 | $2.37 | |||
| 150 | BALL, STEEL 15521-97131 19212-97130 | 1 | $1.45 | |||
| 160 | SPRING 11460-63120 | 1 | $9.25 | |||
| 170 | BOLT 11460-93310 | 1 | $5.59 | |||
| 180 | O-RING 15511-96660 | 1 | $20.24 | |||
| 190 | BOLT 15511-63760 | 1 | $8.66 | |||
| 200 | PIPE, DRAIN 16285-63570 | 1 | $26.17 | |||
| 210 | NUT 16611-92020 | 1 | $5.59 | |||
| 215 | NUT 16285-92010 | 1 | $8.40 | |||
| 220 | BOLT 11197-63320 | 1 | $15.43 | |||
| 230 | BAND 16612-63100 Discontinued | 1 | $16.29 | |||
| 240 | CORD, STOP SOLEN 16611-63660 | 1 | $13.71 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

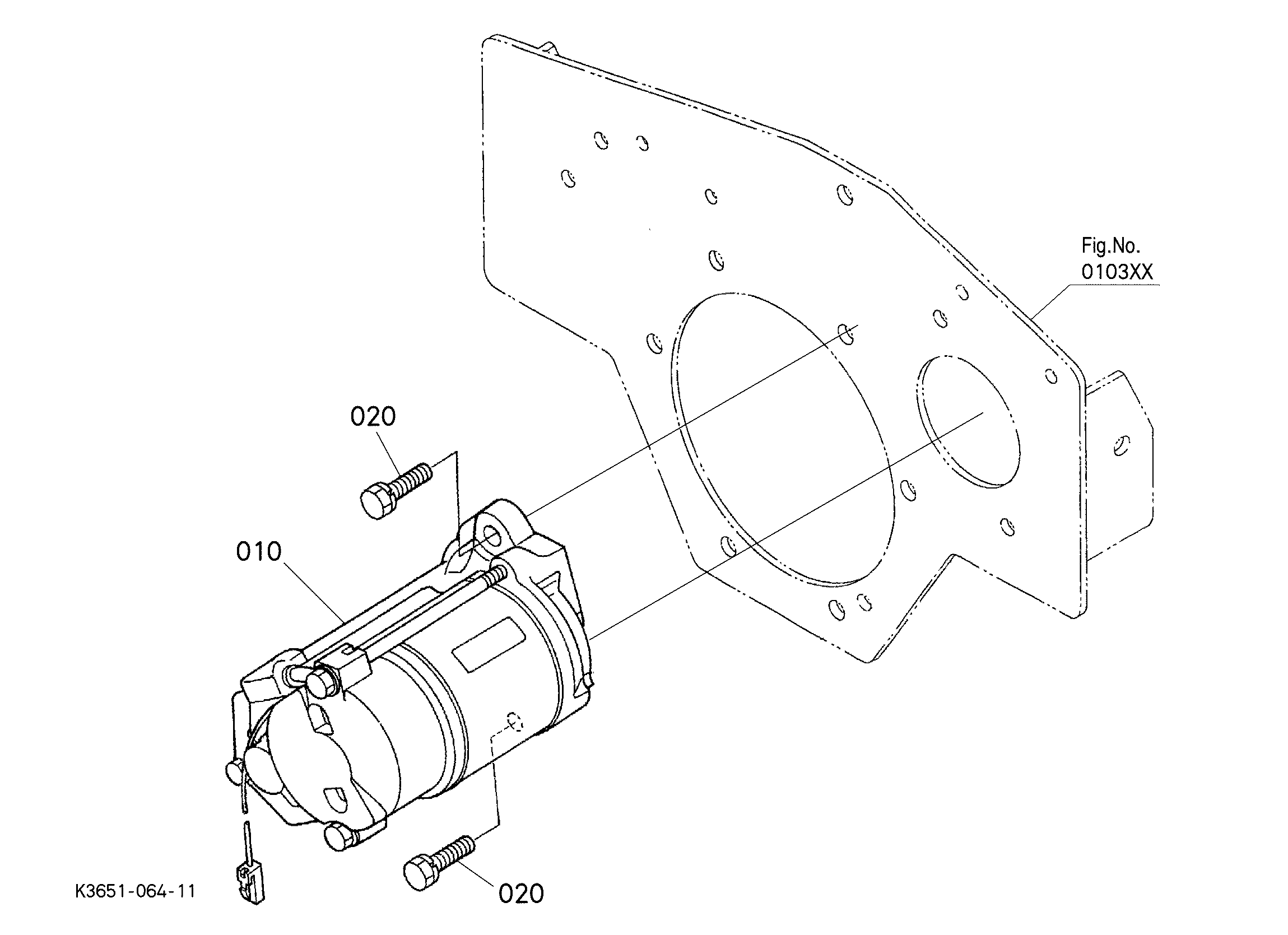

DIAG-A52501-90325 A52501 STARTER
View Diagram -

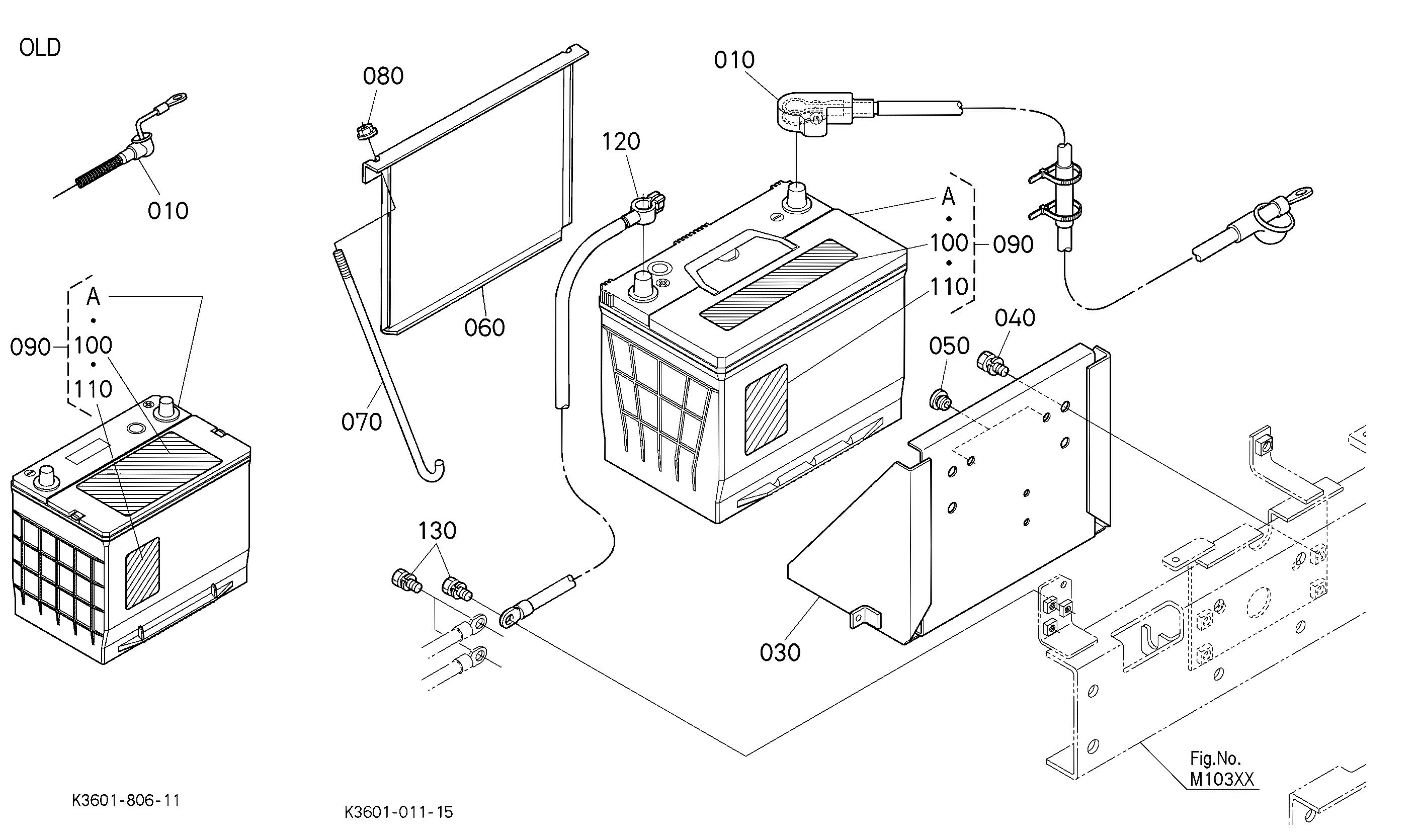

DIAG-A53501-90325 A53501 BATTERY
View Diagram -

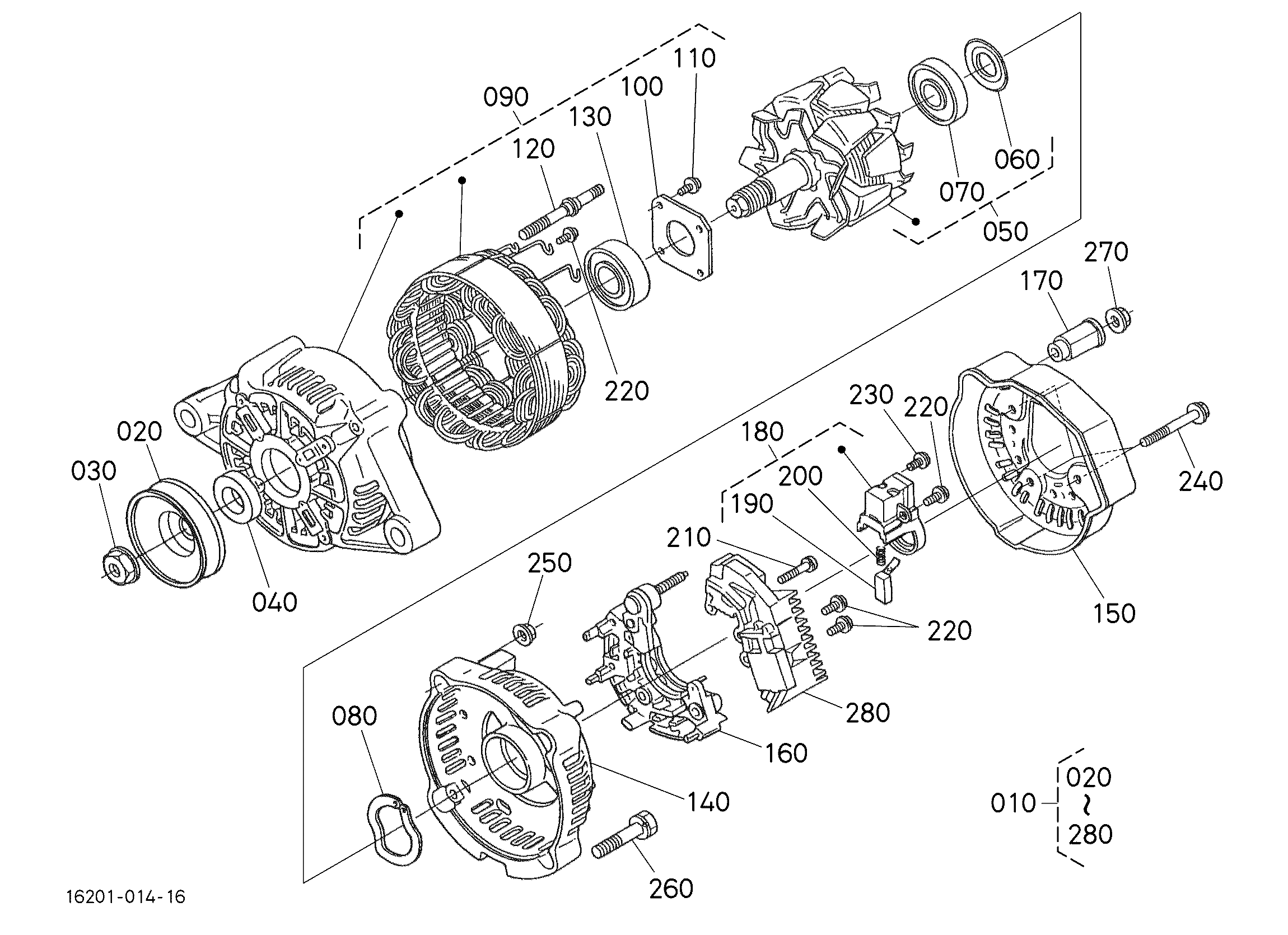

DIAG-A52003-90325 A52003 ALTERNATOR [COMPONENT PARTS]
View Diagram
