Kubota L2501HST A52500 STARTER [OLD] Parts Diagram

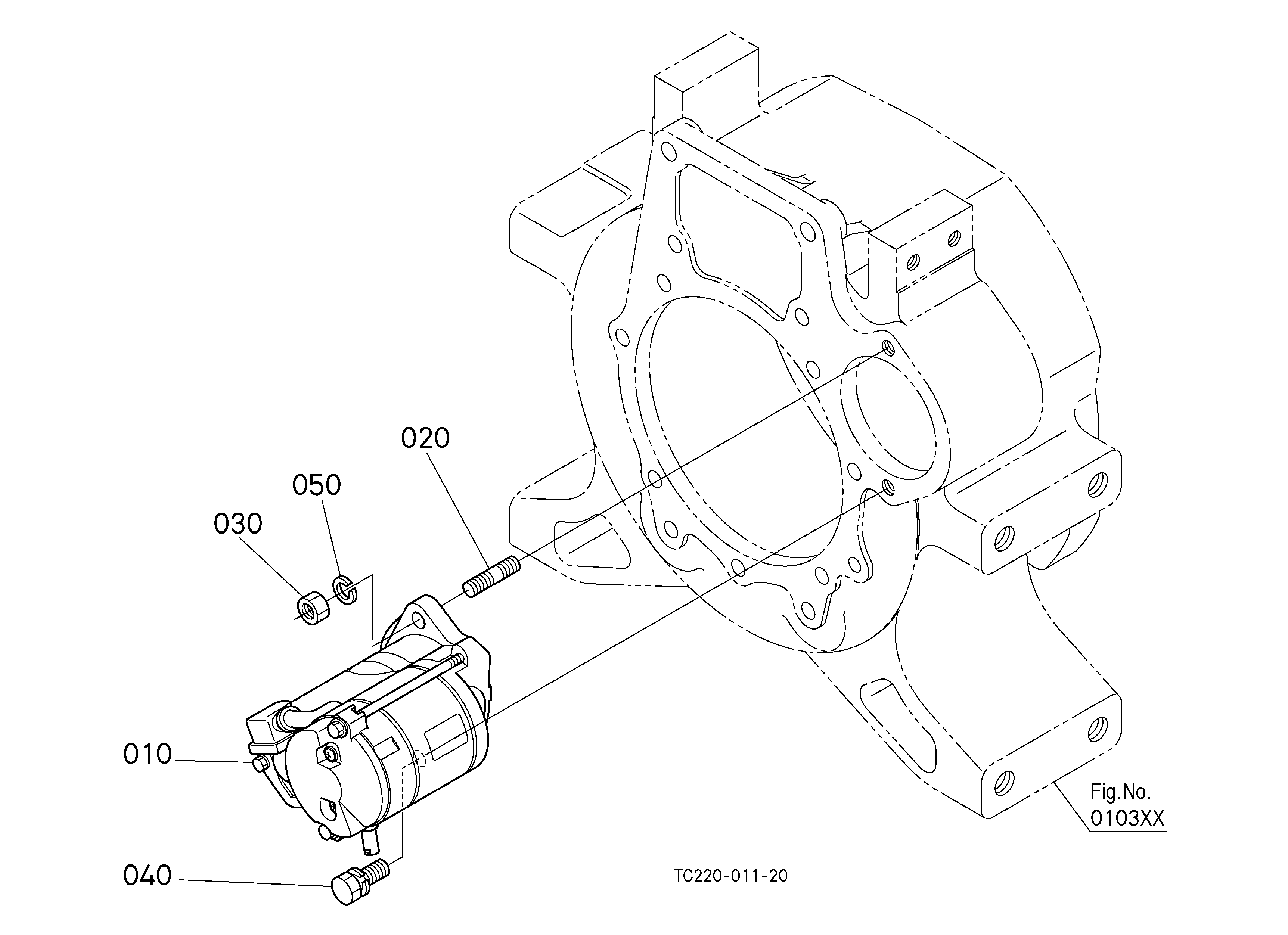

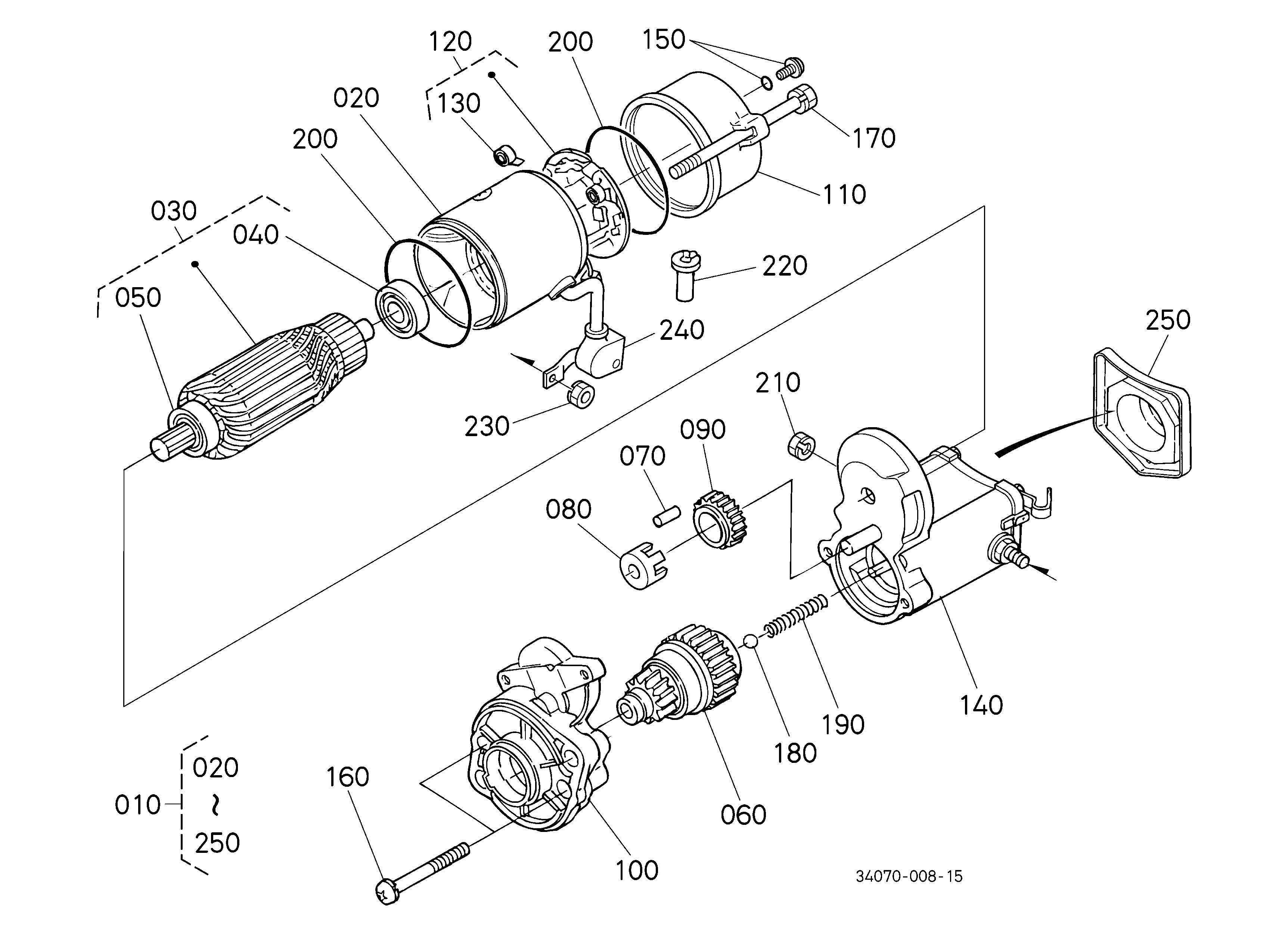

Exploded-view parts diagram "A52500 STARTER [OLD]" for the Kubota L2501HST. 5 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY STARTER 34070-16800 34070-16804 | 1 | $469.45 | |||
| 020 | Stud 01517-51030 01517-71030 | 1 | $1.93 | |||
| 030 | Hex Nut, M10-1.25mm (6T) 70090-33403 02176-50100 | 1 | $0.80 | |||
| 040 | Bolt Fastener 01130-51030 01133-51030 | 1 | $2.54 | |||
| 050 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
Showing 1 to 5 of 5 parts
