Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

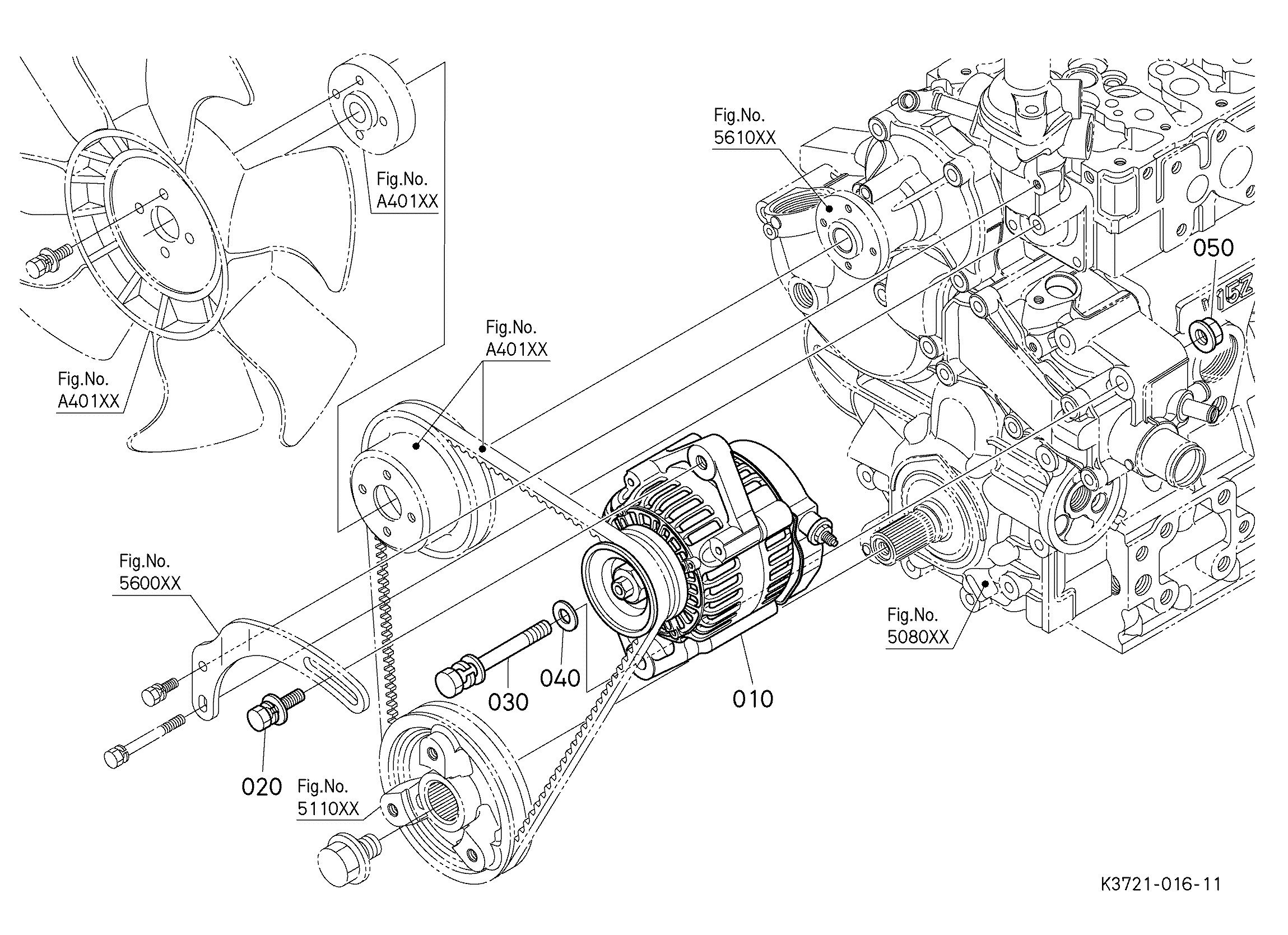

| 010 | ALTERNATOR,ASSY K7121-61910 | 1 | $411.29 | |||
| 010 | ALTERNATOR,ASSY K7561-61910 K7561-61920 | 1 | $377.30 | |||
| 020 | PULLEY 1G386-64110 | 1 | $79.04 | |||
| 030 | NUT 1G386-92010 | 1 | $8.36 | |||
| 040 | FRAME,ASSY TA044-74030 | 1 | $292.73 | |||
| 050 | BEARING,BALL 1G355-64780 | 1 | $31.57 | |||
| 060 | PLATE(RETAINER) 1G386-64710 | 1 | $10.80 | |||
| 070 | SCREW,RD HD 1G386-93010 | 1 | $2.20 | |||
| 080 | BOLT(THROUGH) 1G386-64260 | 1 | $14.98 | |||
| 090 | ROTOR TA044-64040 | 1 | $176.55 | |||
| 100 | COVER(BEARING) 1G386-64800 | 1 | $9.23 | |||
| 110 | BEARING,BALL 1G355-64770 | 1 | $31.57 | |||
| 120 | FRAME TA044-64060 | 1 | $114.16 | |||
| 130 | HOLDER TA044-64850 | 1 | $260.74 | |||
| 140 | BRUSH 1G355-64310 | 1 | $58.75 | |||
| 150 | BRUSH 1G386-64090 | 1 | $10.82 | |||
| 160 | SPRING(BRUSH) 1G386-64330 | 1 | $5.16 | |||
| 165 | REGULATOR,ASSY 1G324-64600 | 1 | $453.93 | |||
| 167 | SCREW,RD HD 1G386-93030 | 1 | $1.34 | |||
| 170 | SCREW,RD HD 1G386-93040 | 1 | $1.34 | |||
| 180 | BOLT 1G386-91040 | 1 | $2.20 | |||
| 190 | SCREW,RD HD 1G386-93020 | 1 | $1.22 | |||
| 200 | BOLT 1G386-91050 | 1 | $3.79 | |||
| 210 | FRAME 1E998-64230 | 1 | $42.33 | |||
| 220 | BUSHING 1G386-64900 | 1 | $32.29 | |||
| 230 | NUT 1G386-92020 | 1 | $2.20 | |||
| 240 | NUT 1E994-92030 | 1 | $2.59 | |||
| 250 | CLAMP,CORD 1E998-67570 | 1 | $13.22 | |||
| 260 | COLLAR 1G386-64150 | 1 | $11.14 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-A52000-341172 A52000 ALTERNATOR [COMPONENT PARTS]
View Diagram -

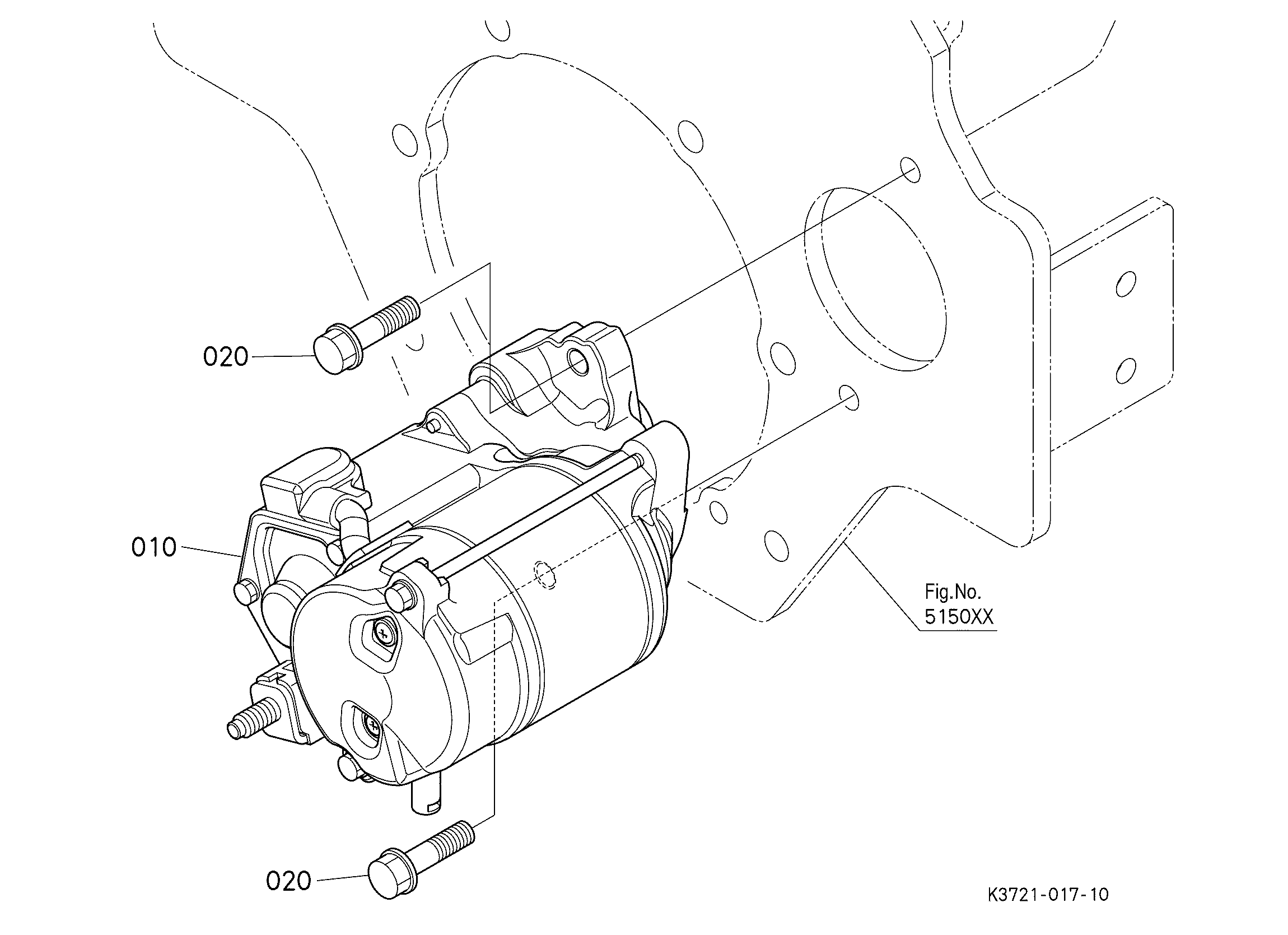

DIAG-A52500-341172 A52500 STARTER
View Diagram -
DIAG-A51500-341172 A51500 ALTERNATOR
View Diagram
