Scroll to zoom Click a part # to view details

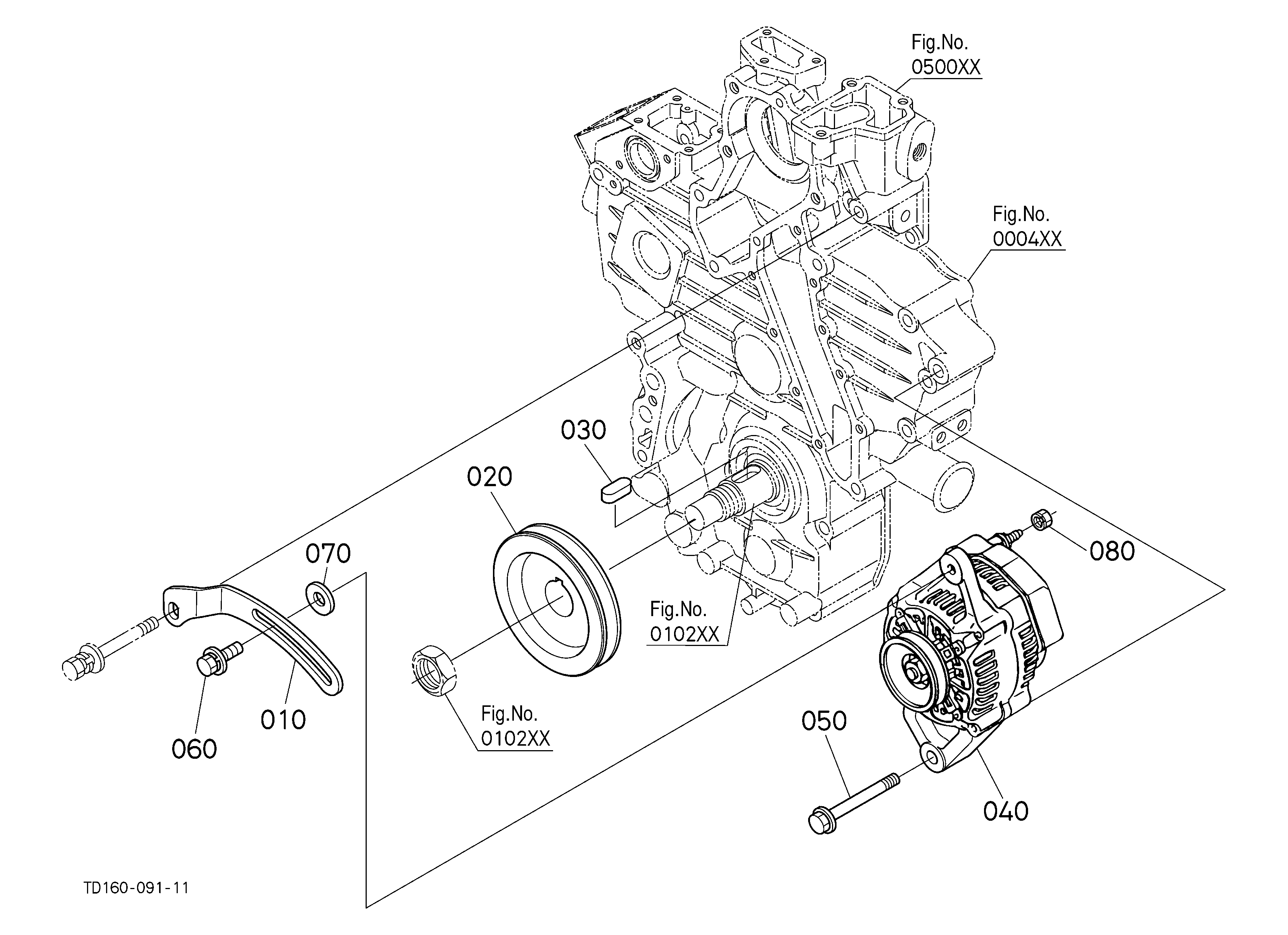

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ALTERNATOR,ASSY T1850-15683 T1852-15680 | 1 | $338.31 | |||
| 010 | ASSY ALTERNATOR(45 AMP) T1065-15682 Discontinued | 1 | $556.26 | |||
| 020 | PULLEY 5H730-42510 5H937-42710 | 1 | $42.39 | |||
| 020 | PULLEY 17356-64110 16427-64110 | 1 | $54.95 | |||
| 030 | NUT 15881-92010 | 1 | $10.19 | |||
| 040 | ASSY FRAME,DRIVE T1065-15622 | 1 | $966.57 | |||
| 040 | ASSY,FRAME T1065-15620 Discontinued | 1 | $743.93 | |||
| 050 | BEARING BALL 16652-64780 16652-64782 | 1 | $38.88 | |||
| 060 | PLATE, RETAINER 15881-64710 | 1 | $12.49 | |||
| 070 | SCREW, ROUND HEA 15881-93010 | 1 | $2.86 | |||
| 080 | BOLT, THROUGH 15881-64260 | 1 | $17.75 | |||
| 090 | ROTOR 17369-64040 | 1 | $495.14 | |||
| 100 | COVER, BEARING 15881-64800 | 1 | $10.96 | |||
| 110 | BRG BALL RADIAL1 17369-64770 | 1 | $36.49 | |||
| 120 | FRAME T1065-15610 | 1 | $205.00 | |||
| 130 | HOLDER T1065-15630 | 1 | $421.15 | |||
| 140 | HOLDER, BRUSH 16652-64310 | 1 | $68.49 | |||
| 150 | BRUSH, ALTERNATO 15881-64090 | 1 | $13.30 | |||
| 160 | SPRING, BRUSH 15881-64330 | 1 | $6.55 | |||
| 170 | ASSY REGULATOR 1K531-64602 1K531-64603 | 1 | $245.57 | |||
| 180 | SCREW, ROUND HEA 16543-93040 15881-93030 | 1 | $1.76 | |||
| 190 | SCREW, ROUND HEA 15881-93040 | 1 | $1.76 | |||
| 200 | BOLT 15881-91040 | 1 | $2.86 | |||
| 210 | SCREW, ROUND HEA 15881-93020 | 1 | $1.34 | |||
| 220 | BOLT 15881-91050 | 1 | $4.79 | |||
| 230 | COVER T1065-15660 | 1 | $47.69 | |||
| 240 | BUSHING, INSULAT 16241-64900 | 1 | $28.41 | |||
| 250 | NUT 15881-92020 | 1 | $2.86 | |||
| 260 | NUT 14182-92030 | 1 | $3.52 | |||
| 270 | CLAMP, CORD 17369-67570 | 1 | $17.79 | |||
| 280 | COLLAR, ALTERNAT 15881-64150 | 1 | $14.03 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-A51500-87264 A51500 ALTERNATOR
View Diagram -
DIAG-R11500-87264 R11500 LABEL 3 (REAR)
View Diagram -

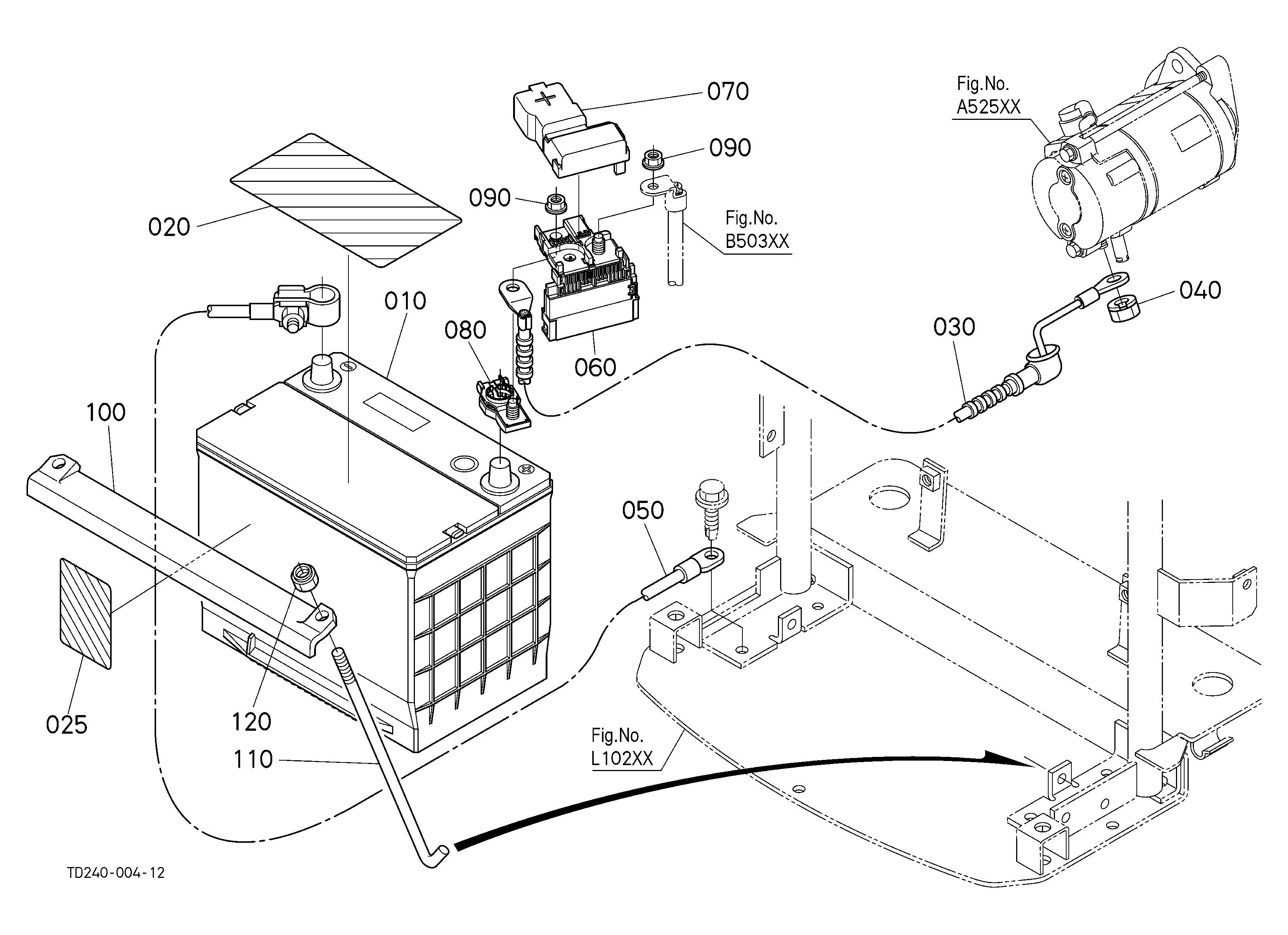

DIAG-A53500-87264 A53500 BATTERY
View Diagram
