Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ALTERNATOR(60A) 3A611-74012 3A613-74010 | 1 | $403.50 | |||
| 020 | PULLEY 17356-64110 16427-64110 | 1 | $54.95 | |||
| 030 | NUT 15881-92010 | 1 | $10.19 | |||
| 040 | FRAME,DRIVE END TA043-74030 TA043-74032 | 1 | $934.56 | |||
| 050 | BEARING BALL 16652-64780 16652-64782 | 1 | $38.88 | |||
| 060 | PLATE, RETAINER 15881-64710 | 1 | $12.49 | |||
| 070 | SCREW, ROUND HEA 15881-93010 | 1 | $2.86 | |||
| 080 | BOLT, THROUGH 15881-64260 | 1 | $17.75 | |||
| 090 | ROTOR TA043-64040 | 1 | $550.86 | |||
| 100 | COVER, BEARING 15881-64800 | 1 | $10.96 | |||
| 110 | BEARING, BALL 16652-64770 | 1 | $38.92 | |||
| 120 | FRAME, END 17369-64060 | 1 | $181.47 | |||
| 130 | ASSY HOLDER, REC TA043-64850 | 1 | $368.81 | |||
| 140 | HOLDER, BRUSH 16652-64310 | 1 | $68.49 | |||
| 150 | BRUSH, ALTERNATO 15881-64090 | 1 | $13.30 | |||
| 160 | SPRING, BRUSH 15881-64330 | 1 | $6.55 | |||
| 170 | ASSY REGULATOR 1K531-64602 1K531-64603 | 1 | $245.57 | |||
| 180 | SCREW, ROUND HEA 16543-93040 15881-93030 | 1 | $1.76 | |||
| 190 | SCREW, ROUND HEA 15881-93040 | 1 | $1.76 | |||
| 200 | BOLT 15881-91040 | 1 | $2.86 | |||
| 210 | SCREW, ROUND HEA 15881-93020 | 1 | $1.34 | |||
| 220 | BOLT 15881-91050 | 1 | $4.79 | |||
| 230 | COVER, END 17369-64230 | 1 | $94.93 | |||
| 240 | BUSHING, INSULAT 15881-64900 | 1 | $26.63 | |||
| 250 | NUT 15881-92020 | 1 | $2.86 | |||
| 260 | NUT 14182-92030 | 1 | $3.52 | |||
| 270 | CLAMP, CORD 17369-67570 | 1 | $17.79 | |||
| 280 | COLLAR, ALTERNAT 15881-64150 | 1 | $14.03 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-A51502-85355 A51502 ALTERNATOR
View Diagram -
DIAG-A52502-85355 A52502 STARTER
View Diagram -

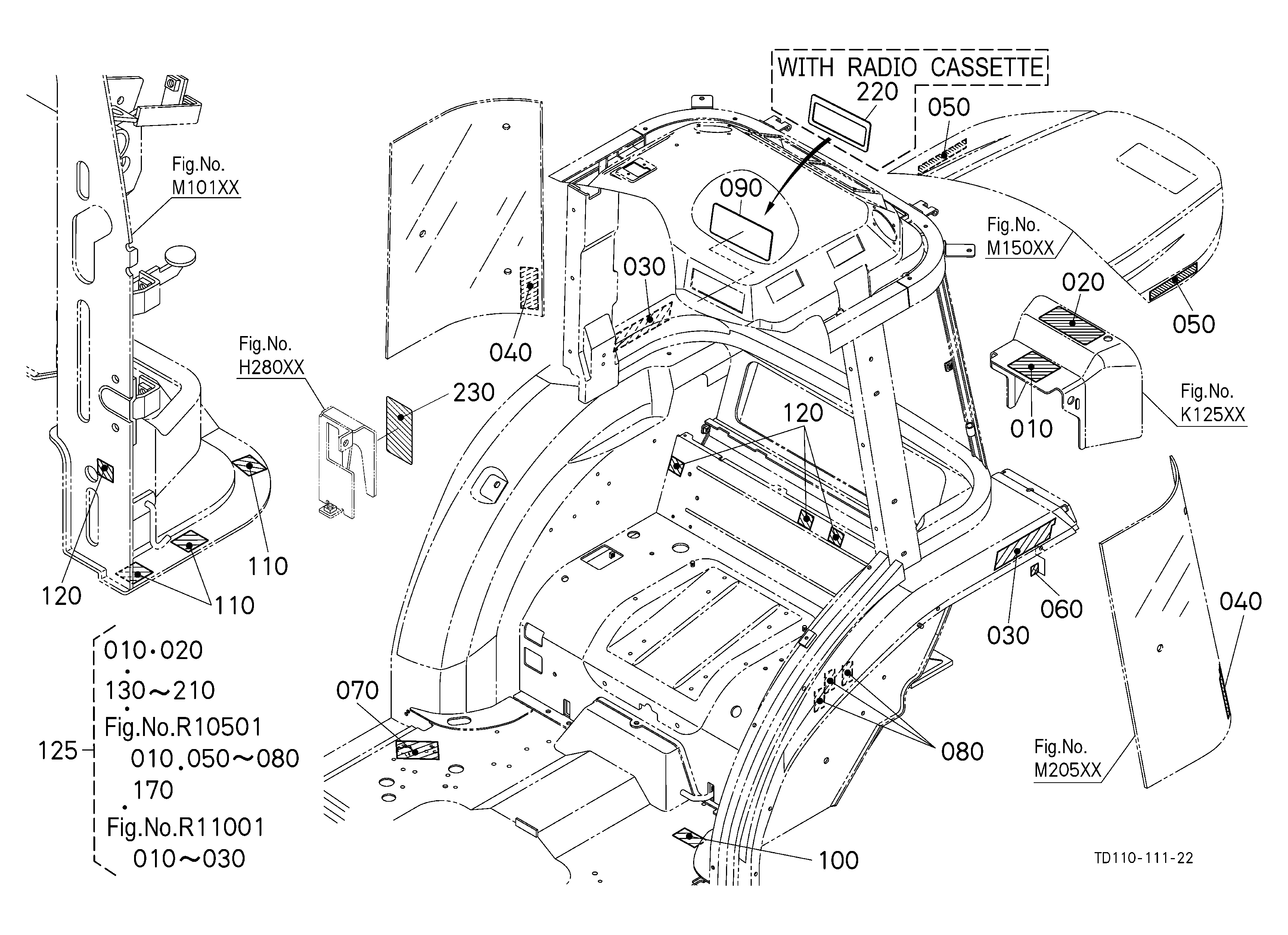

DIAG-R11501-85355 R11501 LABEL 3 (CAB EXTERNAL) [A]
