Kubota M7-134P A46202 COOLER UNIT (RADIATOR) [W/O FRONT PTO] Parts Diagram

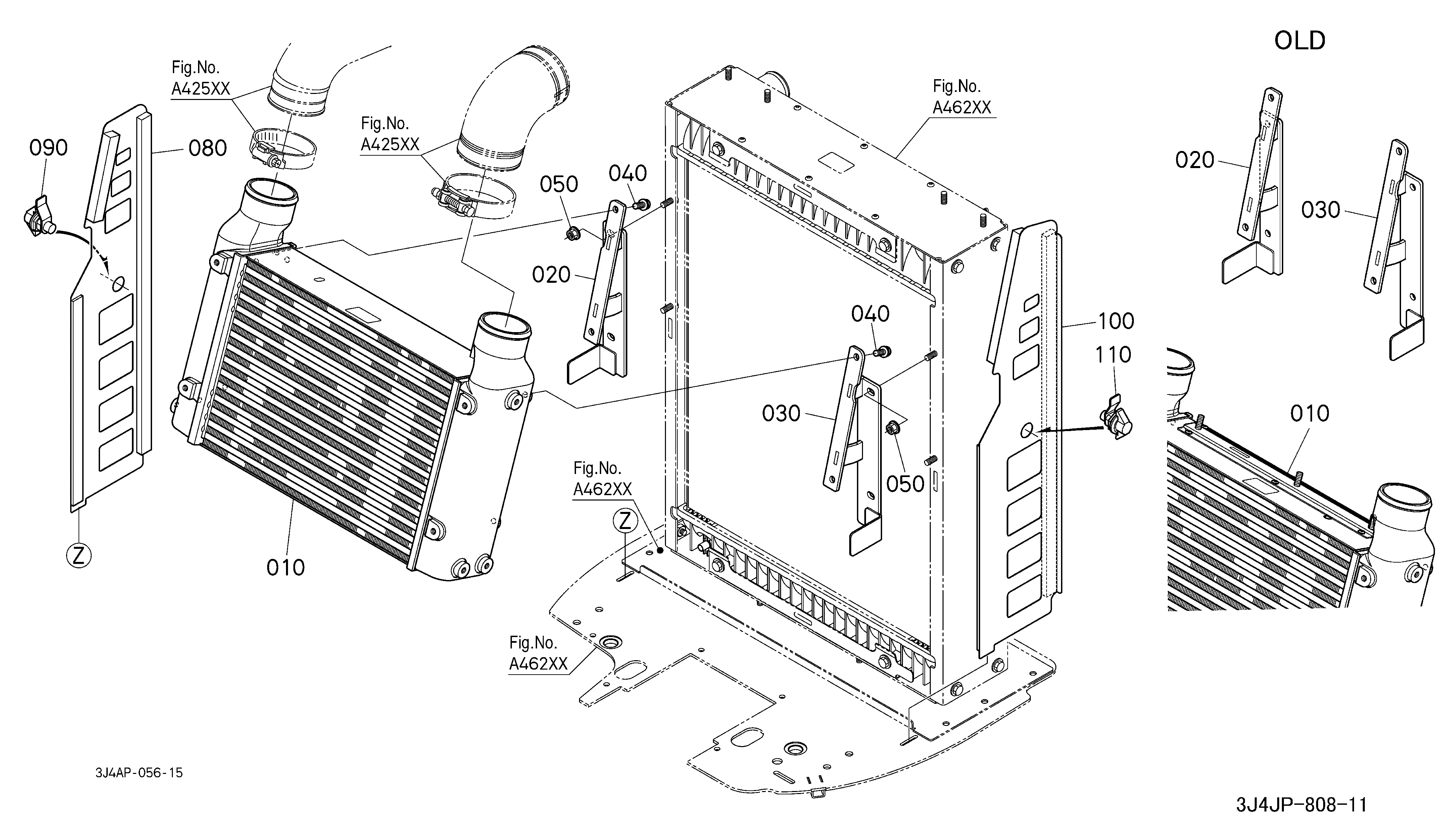

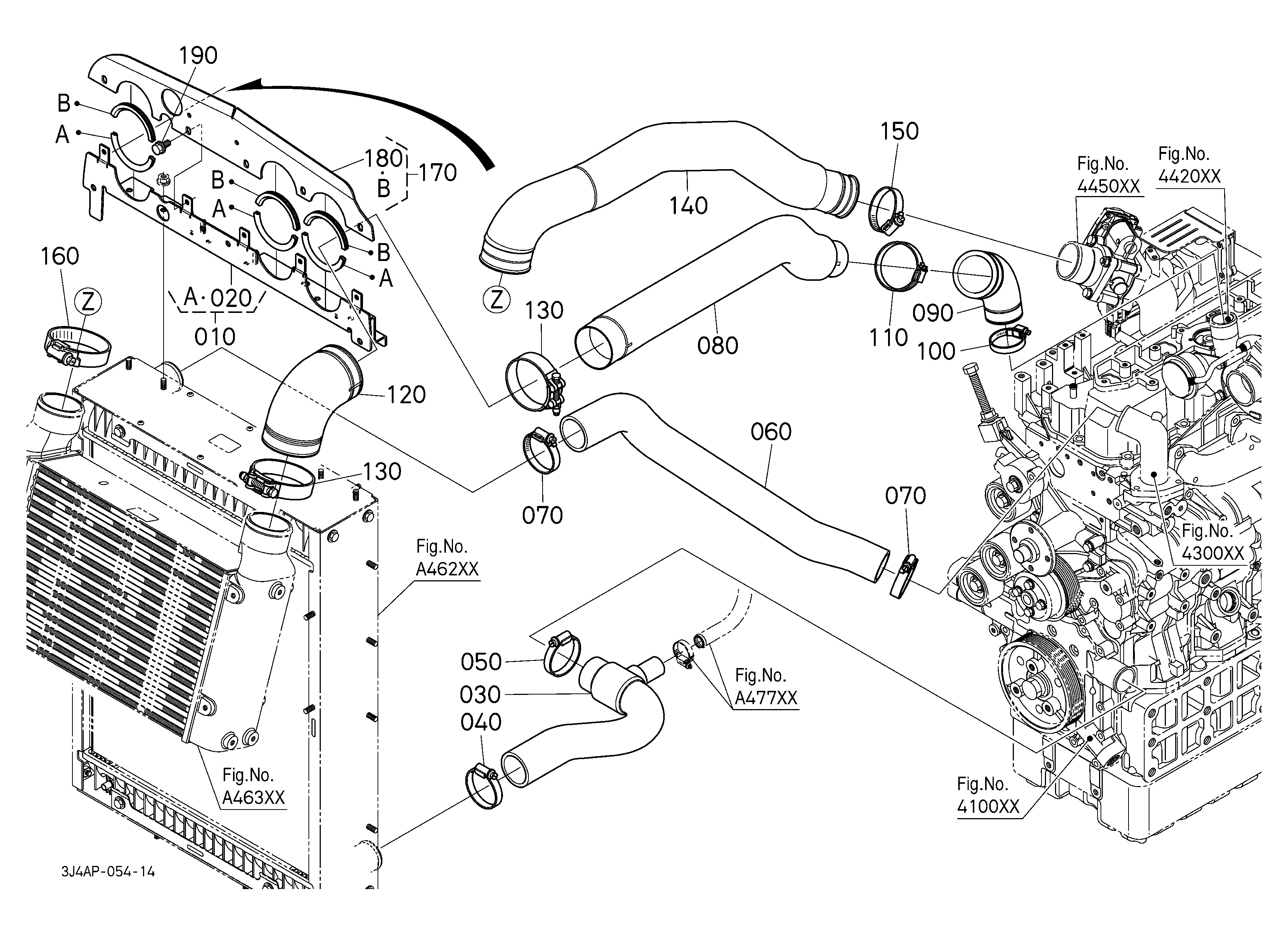

Exploded-view parts diagram "A46202 COOLER UNIT (RADIATOR) [W/O FRONT PTO]" for the Kubota M7-134P, Kubota M7-134P KVT, Kubota M7-134S, Kubota M7-154P, Kubota M7-154P KVT, Kubota M7-154S, Kubota M7-174P and Kubota M7-174P KVT and 1 more models. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 PLATE(COOLER,STR 3J037-31080 1 AVAILABLE TO ORDER $34.27
020 DAMPER BASE, COO 3J027-83150 1 AVAILABLE TO ORDER $29.80
030 WASHER DIN 7093, 3J099-34593 1 AVAILABLE TO ORDER $0.97
040 BOLT 01050-51040 01053-51040 1 1 IN STOCK $1.85
050 RADIATOR,ASSY 3J037-31040 1 AVAILABLE TO ORDER $854.51
060 NUT 50591-62370 02556-50080 1 9 IN STOCK $1.51
080 PLATE(RADIA,RIGH 3J037-31240 1 AVAILABLE TO ORDER $63.03
100 PLATE(RADIA,LEFT 3J037-31250 1 AVAILABLE TO ORDER $65.79
130 PLATE(WATER RADI 3J037-31090 1 AVAILABLE TO ORDER $41.32
140 Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 1 19 IN STOCK $4.33
150 Plain Washer (Flat Washer) 04013-50800 04013-50080 1 31 IN STOCK $0.36
160 SHROUD, FAN 3J031-06192 1 AVAILABLE TO ORDER $134.88
180 COVER, SHROUD 3J031-33480 1 AVAILABLE TO ORDER $30.56
200 SEAL, SHROUD 3J031-33470 1 AVAILABLE TO ORDER $38.08
210 PLATE(BASE,COOLING) 3J031-64160 3J031-64162 1 AVAILABLE TO ORDER $31.73
220 SCREW, PAN HEAD 3J033-97760 1 AVAILABLE TO ORDER $1.92
230 GROMMET, 28 3J028-24090 1 AVAILABLE TO ORDER $6.25
240 COVER(COOLER) 3J036-83070 1 AVAILABLE TO ORDER $27.22
260 BRACKET(UPPER,3) 3J037-32010 3J037-32013 1 AVAILABLE TO ORDER $45.40
290 PLUG(M18) 3J070-12870 1 AVAILABLE TO ORDER $2.57
300 GROMMET, 37 3J028-24100 1 AVAILABLE TO ORDER $10.86
310 LABEL, FAN WARNI TA040-49570 1 AVAILABLE TO ORDER $5.15

Showing 1 to 22 of 22 parts
