Kubota M5-091HD A43000 RADIATOR Parts Diagram

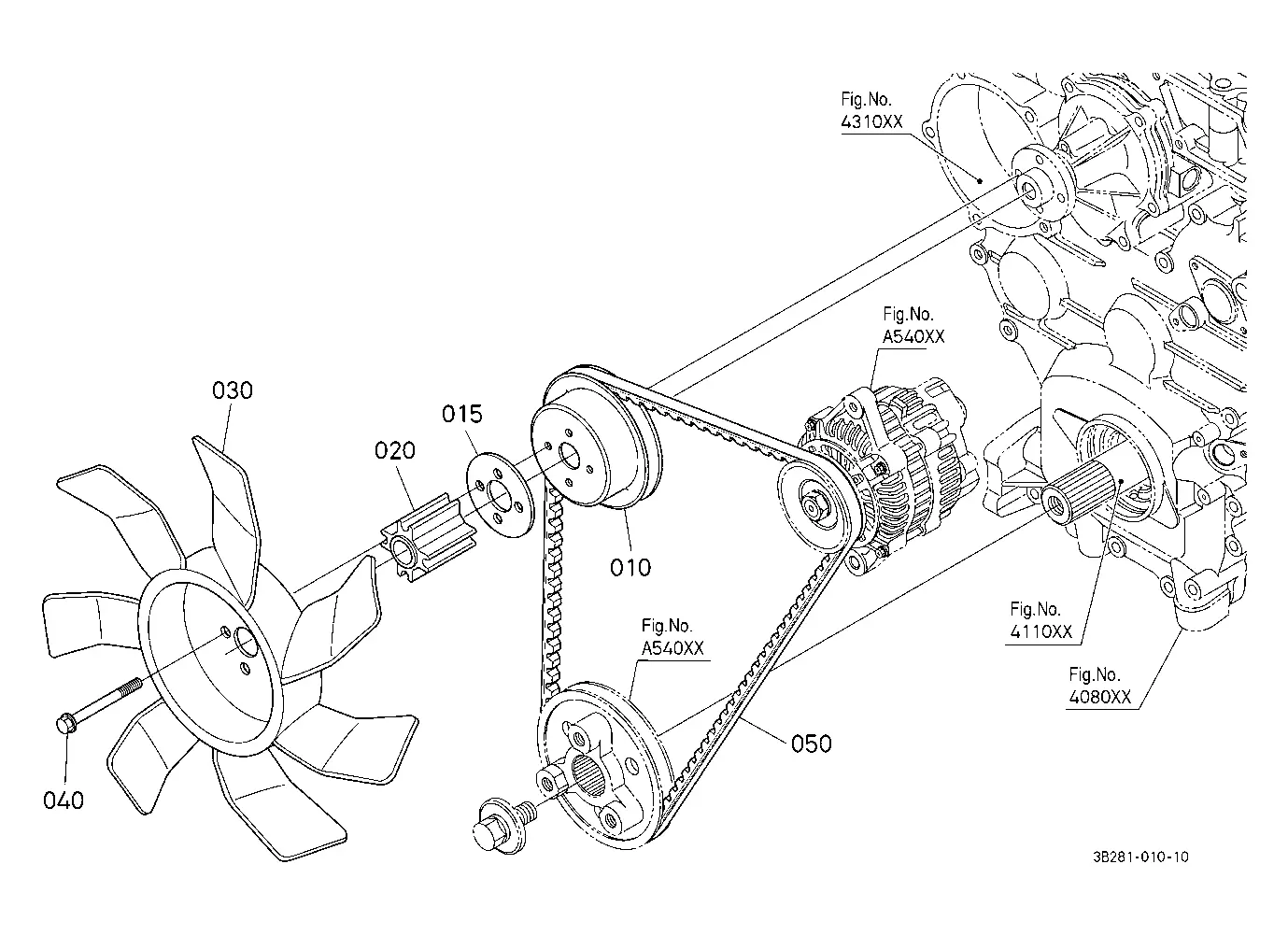

Exploded-view parts diagram "A43000 RADIATOR" for the Kubota M5-091HD, Kubota M5-091HD12, Kubota M5-091HF, Kubota M5-111HD, Kubota M5-111HD12 and Kubota M5-111HF. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ASSY, RADIATOR 3B291-17100 | 1 | $1,879.35 | ||||
| BOLT 01027-50616 | 1 | $1.10 | ||||
| Flange Bolt 01754-50612 | 1 | $1.87 | ||||
| KIT, SHROUD 3B291-97350 | 1 | $188.93 | ||||
| LABEL,FAN BELT 6C090-49580 | 1 | $5.74 | ||||
| NET, RADIATOR 3B291-17412 | 1 | $120.20 | ||||
| O RING 34070-16090 | 1 | $10.74 | ||||
| PLUG, DRAIN 34070-16070 | 1 | $19.55 | ||||
| Radiator Cap TA140-16060 17580-16060 | 1 | $48.92 | ||||
| RUBBER TC402-16030 | 1 | $2.85 | ||||
| STAY, NET 3B291-17360 | 1 | $6.65 | ||||
| TRIM 3B291-17200 | 1 | $14.04 | ||||
| TRIM 3B291-17210 | 1 | $14.04 | ||||
| TRIM, BONNET PR251-85230 | 1 | $13.49 | ||||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-A42000-93418 A42000 WATER PIPE
View Diagram -
DIAG-A45000-93418 A45000 RESERVE TANK
View Diagram -
DIAG-A41000-93418 A41000 FAN
View Diagram
