Kubota M8540HDNB A43000 RADIATOR Parts Diagram
Exploded-view parts diagram "A43000 RADIATOR" for the Kubota M8540HDNB. 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY RADIATOR 3C081-17100 | 1 | $1,559.79 | |||
| 015 | ASSY PLUG (RADIA 3C001-17130 | 1 | $18.89 | |||
| 020 | CAP, RADIATOR 3C001-17110 TC422-16090 | 1 | $58.70 | |||
| 030 | KIT SHROUD 3C471-97350 | 1 | $232.64 | |||
| 040 | BOLT 01027-50616 | 1 | $1.10 | |||
| 050 | TRIM 3A111-17290 | 1 | $11.78 | |||
| 055 | TRIM 1 3C451-17140 | 1 | $15.56 | |||
| 056 | TRIM 2 3C451-17150 | 1 | $12.64 | |||
| 060 | TRIM (SIDE, RADI 3C081-17200 | 1 | $13.63 | |||
| 070 | NET, RADIATOR 3C081-17410 | 1 | $99.23 | |||
| 080 | Radiator Rubber 34070-16030 | 1 | $3.75 | |||
| 080 | RUBBER TC402-16030 | 1 | $2.85 | |||
| 090 | STAY (NET) 3C451-17360 | 1 | $54.62 | |||
| 100 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 110 | PLATE, LH 3C471-17370 | 1 | $235.81 | |||
| 120 | PLATE, RH 3C451-17380 | 1 | $179.69 | |||
| 130 | LABEL,FAN BELT 6C090-49580 | 1 | $5.74 | |||
| 140 | TRIM(BONNET) 3C871-83732 | 1 | $9.72 | |||
| 140 | TRIM, BONNET PR251-85230 | 1 | $13.49 | |||
| 140 | TRIM,BONNET 3C871-83730 | 1 | $11.78 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

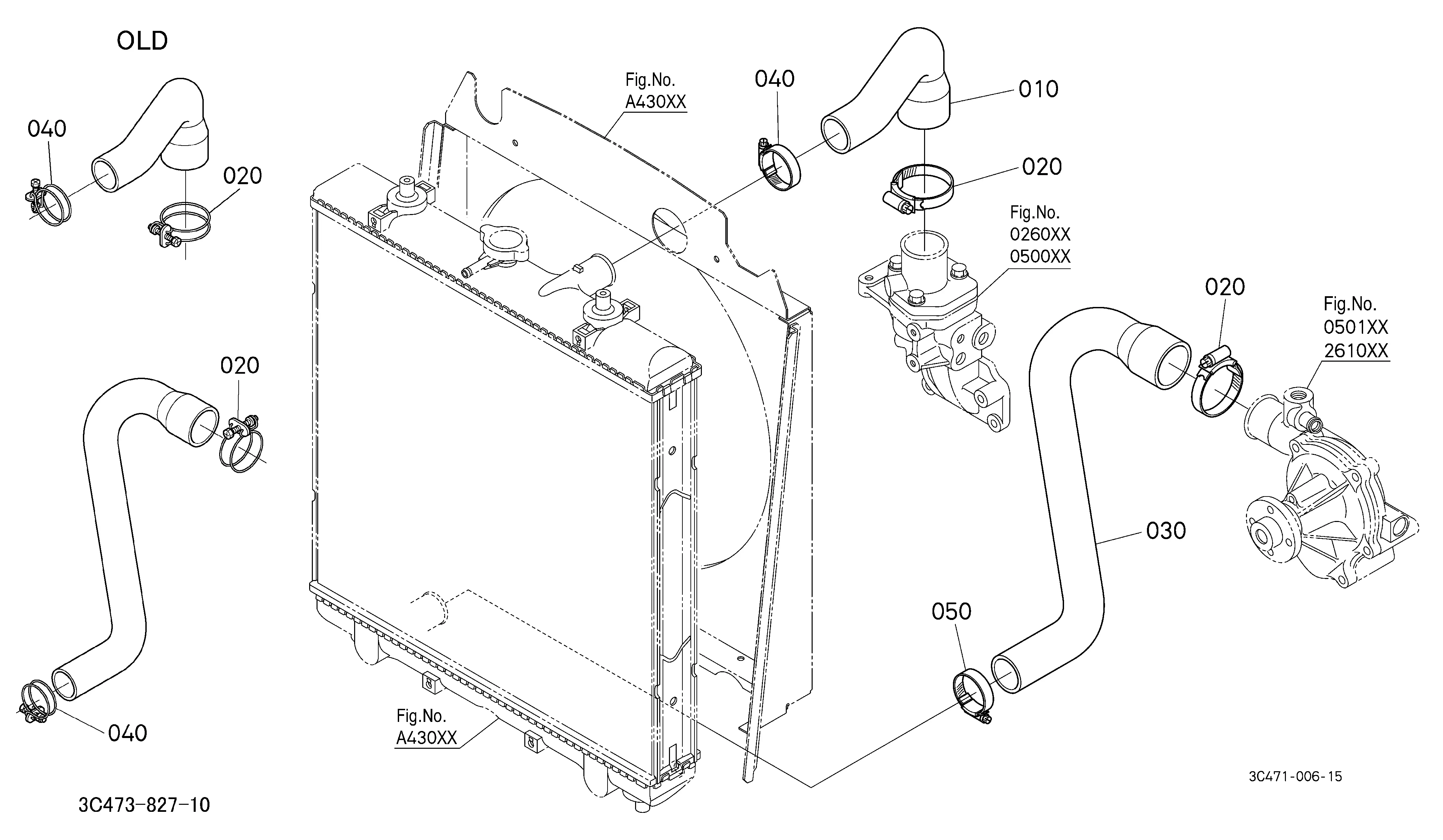

DIAG-A42000-85869 A42000 WATER PIPE
View Diagram -

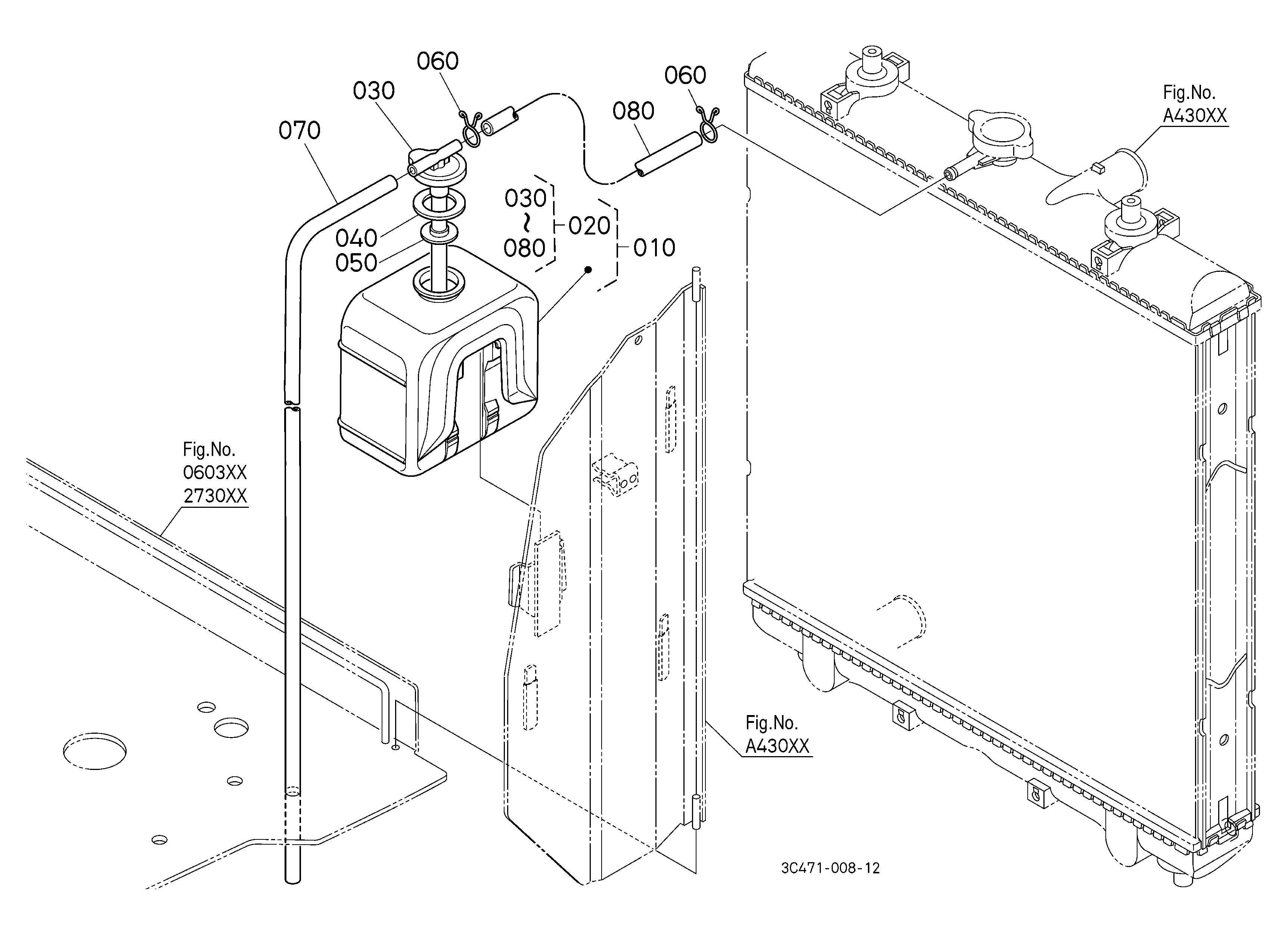

DIAG-A45000-85869 A45000 RESERVE TANK
View Diagram -

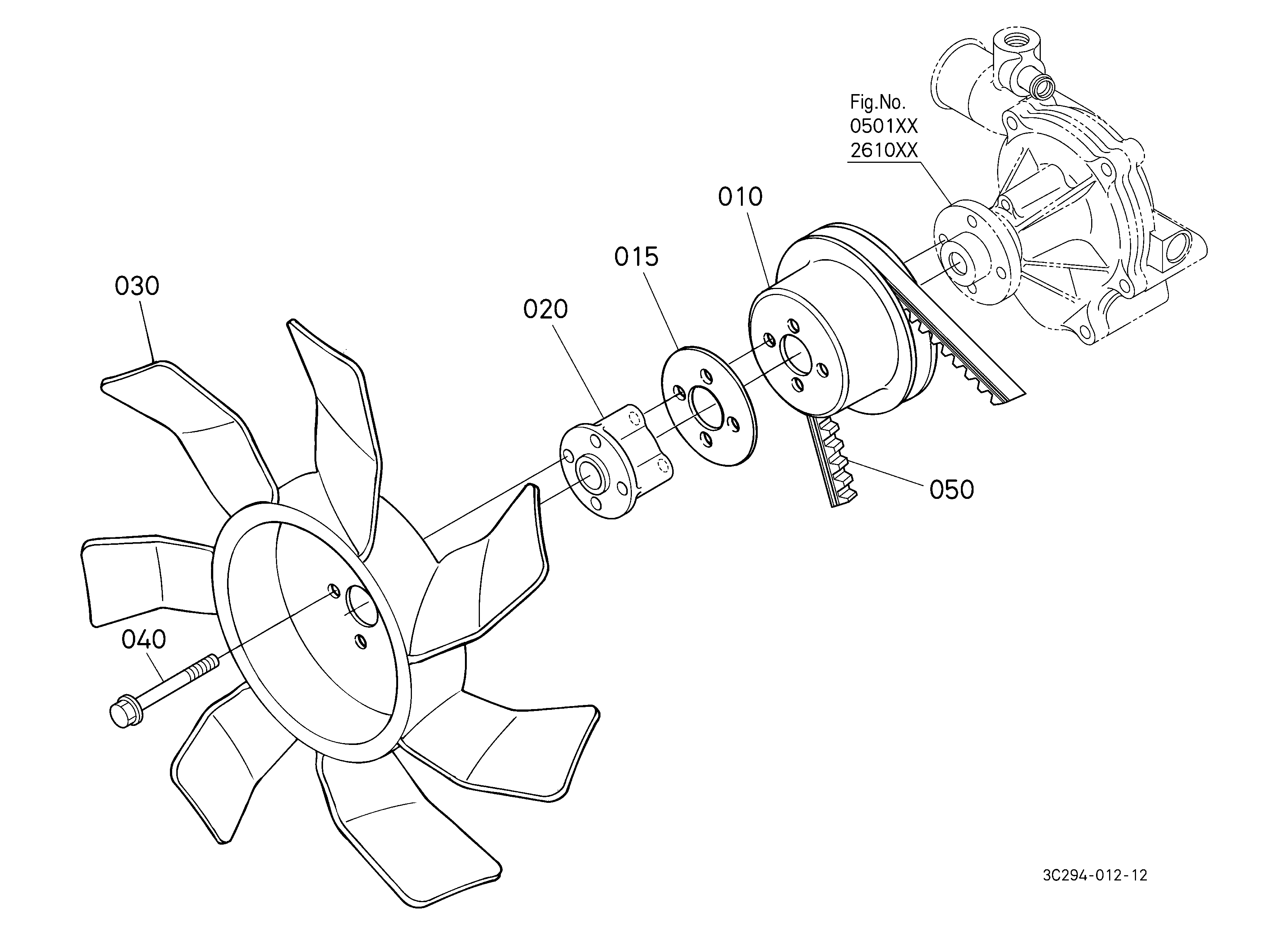

DIAG-A41000-85869 A41000 FAN
