Kubota RTV900XTR A40100 FAN Parts Diagram
Exploded-view parts diagram "A40100 FAN" for the Kubota RTV900XTR, Kubota RTV900XTS, Kubota RTV900XTT and Kubota RTV900XTW. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT, COVER (FAN) K7561-98100 | 1 | $112.66 | |||
| 020 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 020 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 030 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 040 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 050 | ASSY, FAN MOTOR K7561-85222 | 1 | $894.23 | |||
| 060 | ASSY SHROUD, RAD K7561-85032 | 1 | $143.09 | |||
| 065 | LABEL, CAUTION K7561-85080 | 1 | $3.25 | |||
| 070 | FAN, RADIATOR K7561-85040 | 1 | $97.17 | |||
| 080 | ASSY MOTOR, RADI K7561-85050 | 1 | $681.02 | |||
| 090 | SCREW, W/WASHER K7561-85060 | 1 | $3.16 | |||
| 100 | NUT K7561-85070 | 1 | $3.83 | |||
| 120 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

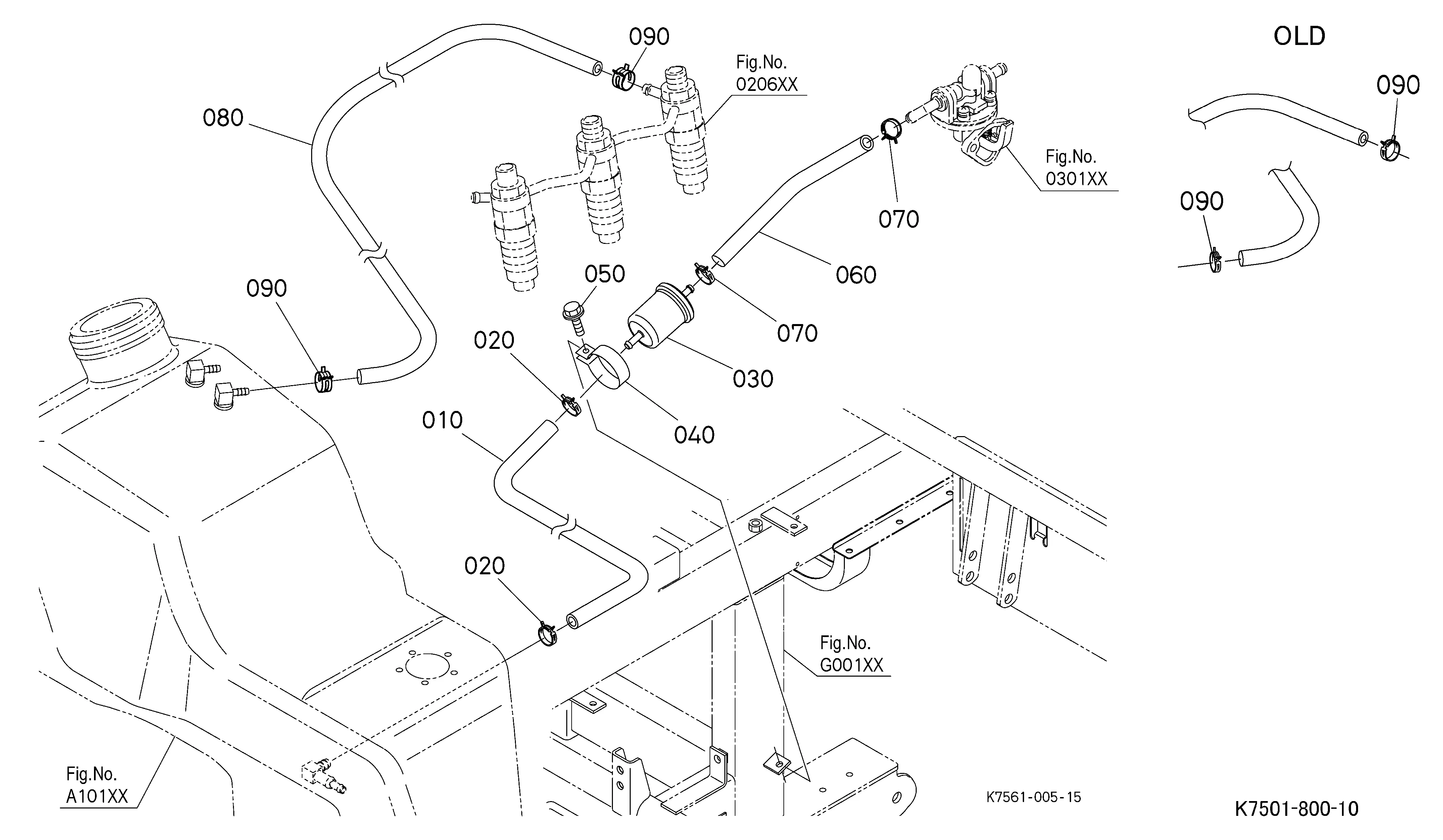

DIAG-A11000-86233 A11000 FUEL PIPE
View Diagram -

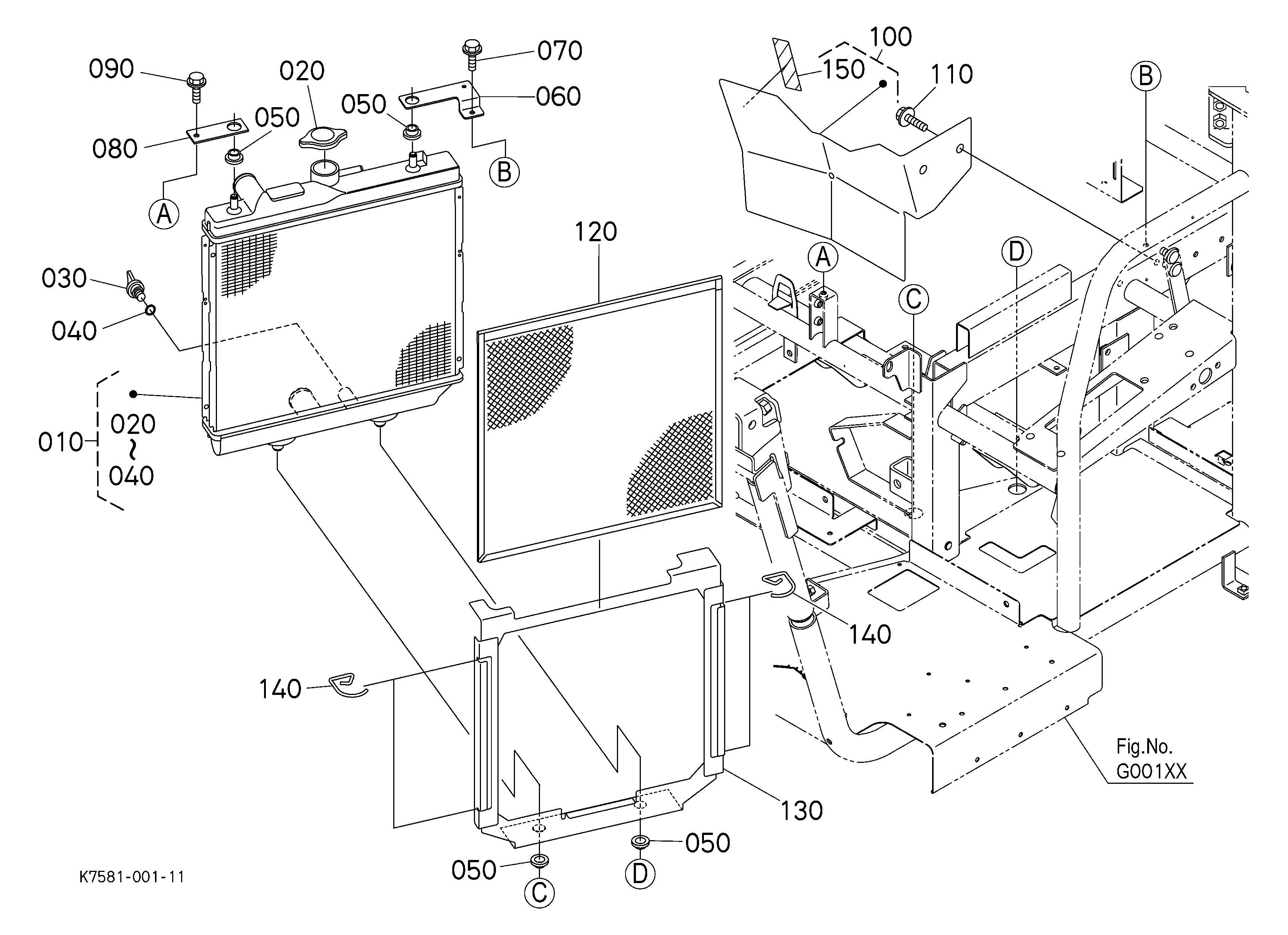

DIAG-A42000-86233 A42000 RADIATOR
View Diagram -

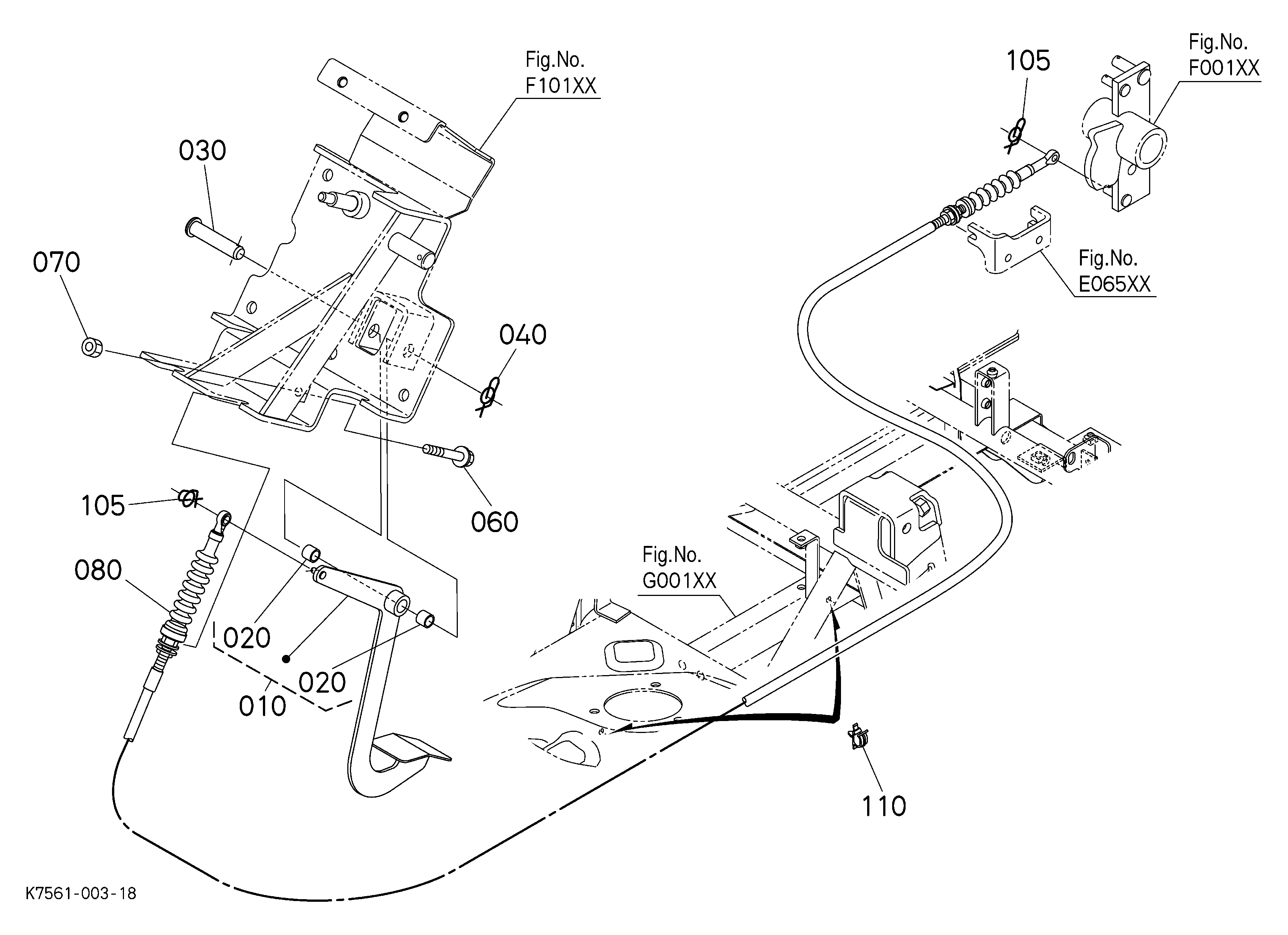

DIAG-A02000-86233 A02000 ACCELERATOR PEDAL
