Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | BLADE DOZER 236/45500 | 1 | $13,380.25 | |||
| 3 | PLATE KEEP 231/20002 | 1 | $20.13 | |||
| 4 | PIN PIVOT 811/30090 | 1 | $41.05 | |||
| 5 | PIVOT PIN 29.98/29.97 X 150 811/50185 | 1 | $103.28 | |||
| 6 | PLATE PROTECTION-M 231/20003 | 1 | $151.82 | |||
| 8 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 13 | BLADE EXTENSION, R 236/45600 | 1 | $2,264.15 | |||
| 14 | BLADE EXTENSION, L 236/46000 | 1 | $1,168.38 | |||
| 15 | SET SCREW M16x40 1315/0710Z | 1 | $8.92 | |||
| 22 | GREASE NIPPLE 1450/1007 | 1 | $7.33 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-A3-5-1-398253 A3-5-1 KIT HAMMER AUXILIARY 980/89486
View Diagram -

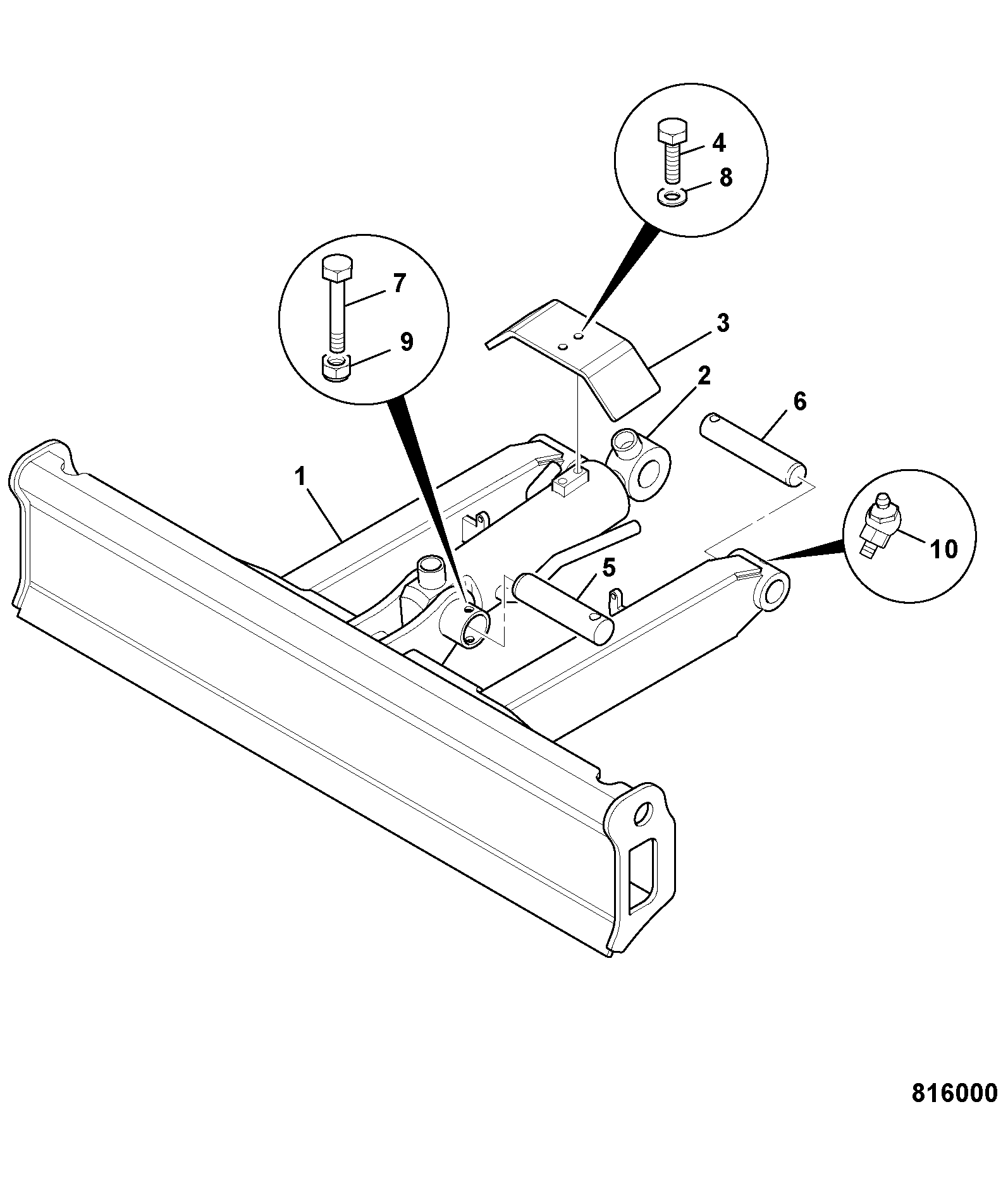

DIAG-A4-2-3-398253 A4-2-3 DOZER ASSEMBLY
View Diagram -

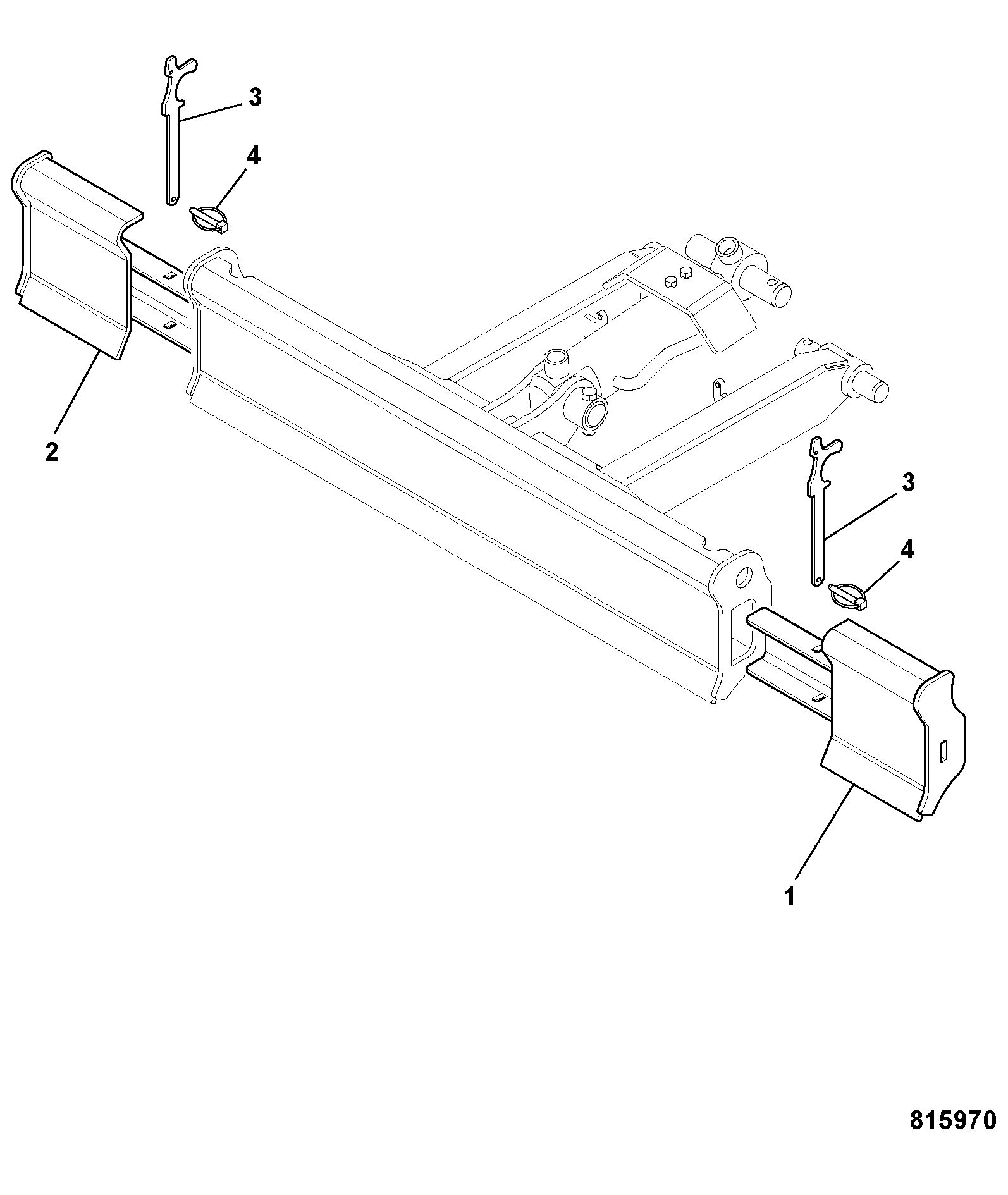

DIAG-A4-2-4-398253 A4-2-4 DOZER EXTENSIONS
View Diagram
