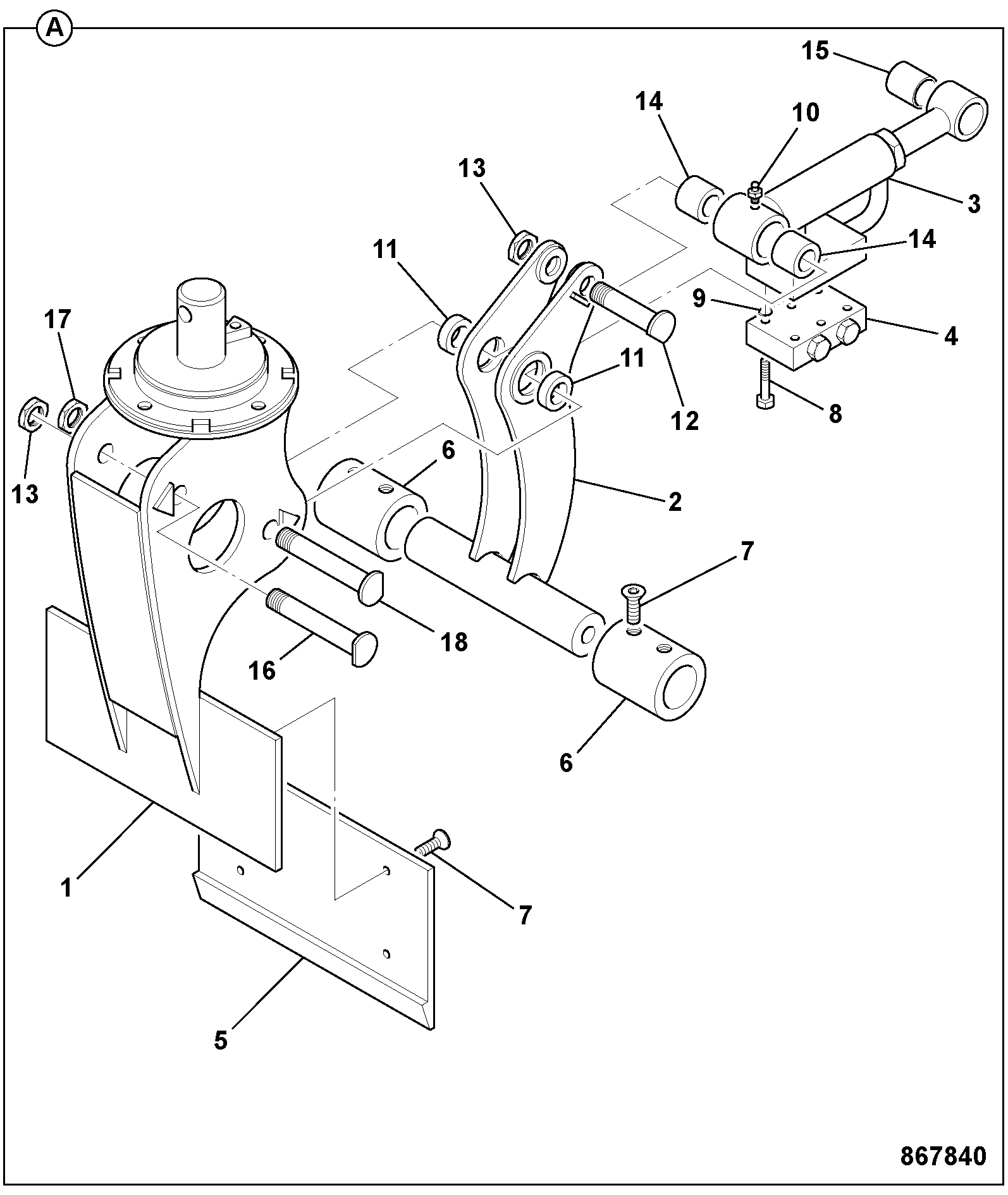

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1A | TOEPLATE 231/22414 | 1 | $400.99 | |||
| 2 | GREASE NIPPLE 1450/1007 | 1 | $7.33 | |||
| 3 | PIVOT PIN 29.98/29.97 X 150 811/50185 | 1 | $103.28 | |||
| 4 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 5 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 6 | PIN PIVOT 811/50180 | 1 | $344.99 | |||
| 10 | PIN PIVOT 811/30090 | 1 | $41.05 | |||
| 11 | PLATE KEEP 231/20002 | 1 | $20.13 | |||
| 12 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 13 | SPRING WASHER M10 823/00416Z | 1 | $0.15 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-A3-5-2-397785 A3-5-2 KERBGRAB MANUAL 70 KG SWL
View Diagram -

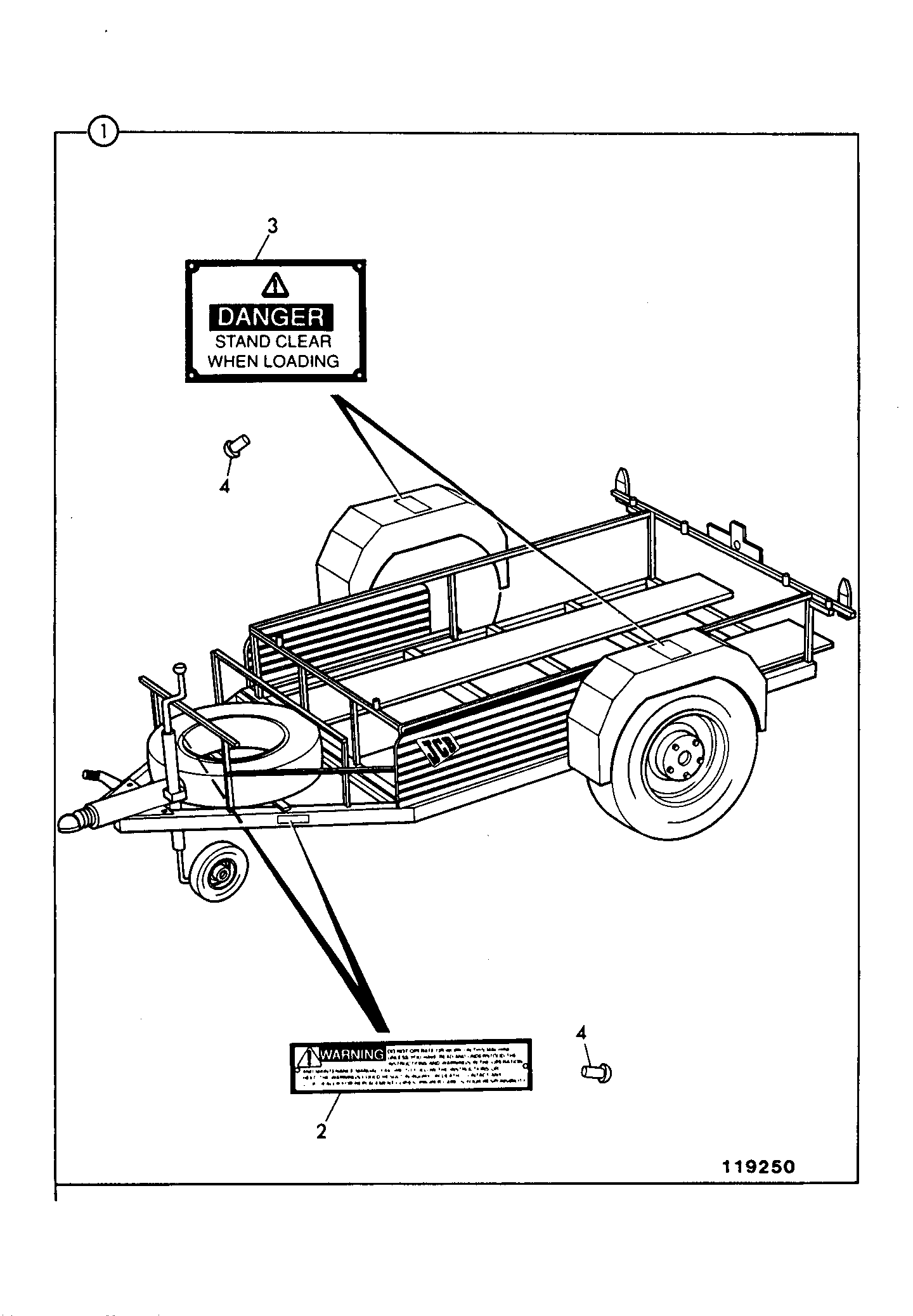

DIAG-A4-2-1-397785 A4-2-1 TRAILER
View Diagram -
DIAG-A3-5-1-397785 A3-5-1 KERBGRAB MANUAL 70 KG SWL
View Diagram
